Name |

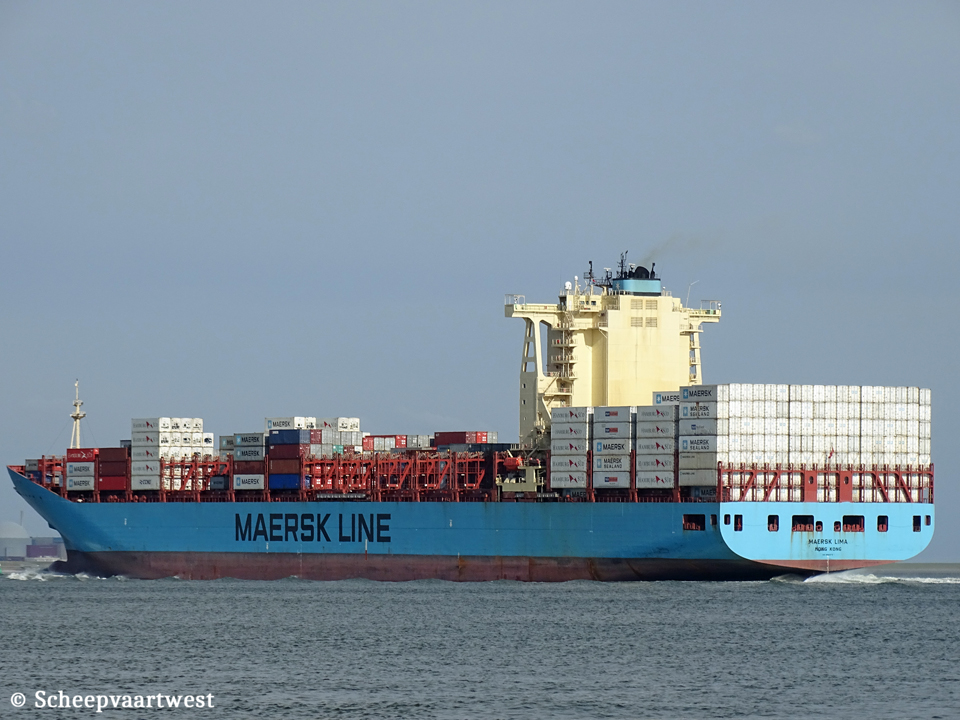

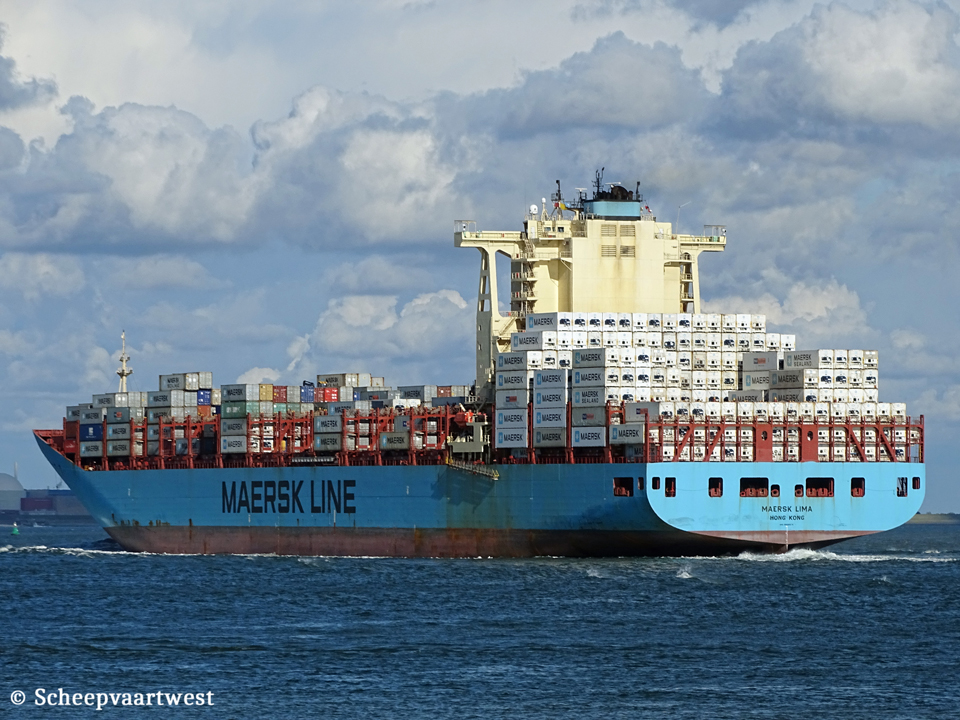

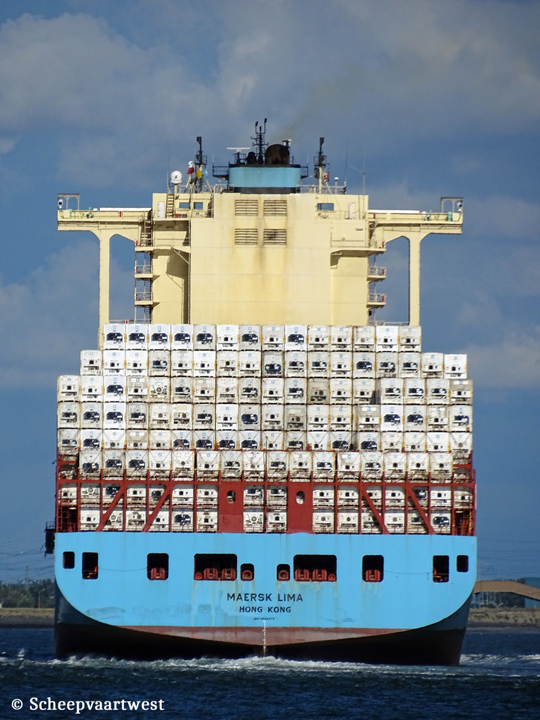

MAERSK LIMA |
|
Type |
Cellular containership |
|
IMO-number |
9526875 |
|
Call sign |
OZJM2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
Hong Kong - People's Republic of China - Call sign: VRKB9 |
|
GT |
89.174 t |
|
DWT |
Summer: 106.043 t |
|
NT |
51.991 t |
|
Number of 20ft containers |
8.850 |
|
Reefer capacity |
1.707 |
|
Length |
299,99 m overall 286,80 m between perpendiculars |
|
Breadth |
45,20 m |
|
Draught |
11,00 m |
|
Depth |
24,20 m moulded |
|
Speed |
Max.: 22,5 knots |
|
Built |
2011 |
|
Keel laid |
24/11/2010 |
|
Launch date |
29/01/2011 |
|
Date of completion |
12/04/2011 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd. Geoje South Korea |
|
Yard number |
4214 |
|
Hull material |
Ordinary strength steel Part higher tensile steel |
|
Watertight bulkheads |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 9S90ME-C Mk8 - 2 stroke single acting 9 cylinder 900 x 3.188 mm combustion engine 45.739 kW / 62.188 hp at 78,0 rpm Manufacturer: Doosan Engine Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 78,0 rpm Manufacturer: Mecklenburger Metallguss GmbH |
|
Boilers |
2x Exhaust gas economisers 1x Auxiliary boiler |
|
Generators |
1x MAN-B&W 6L32/40- 4 stroke 6 cylinder 320 x 400 mm diesel engine 2.800 kW connected with generator 3.200 kW / 6.600 Volt 60Hz 3x MAN-B&W 9L32/40CD - 4 stroke 9 cylinder 320 x 400 mm diesel engines each 4.300 kW connected with generators each 4.914kW / 6.600 Volt 60Hz 1x Turbogenerator Mitshubishi ATD52CLN2 - 3.700 kW |
|
Bow thruster |
1x Controllable pitch 2.300 kW |
|
Number of tanks |
Ballast: 27 Fuel oil: 12 Lubricating oil: 10 Fresh water: 6 Waste water: 4 Diesel oil: 4 Sludge: 3 Chain: 1 |
|
Tank capacities |
Diesel Oil: 723,4 m³ Freshwater: 522 m³ Fuel Oil: 9.082 m³ Lube Oil: 516,5 m³ Tank Ballast: 33.566,6 m³ |
|
Cargo gear |
Gearless |
|
Manager |
Maersk Line A/S |
|
Operator |
Maersk Line A/S |
|
Registered owner |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Latest data adjustment |
10 December 2023 |
