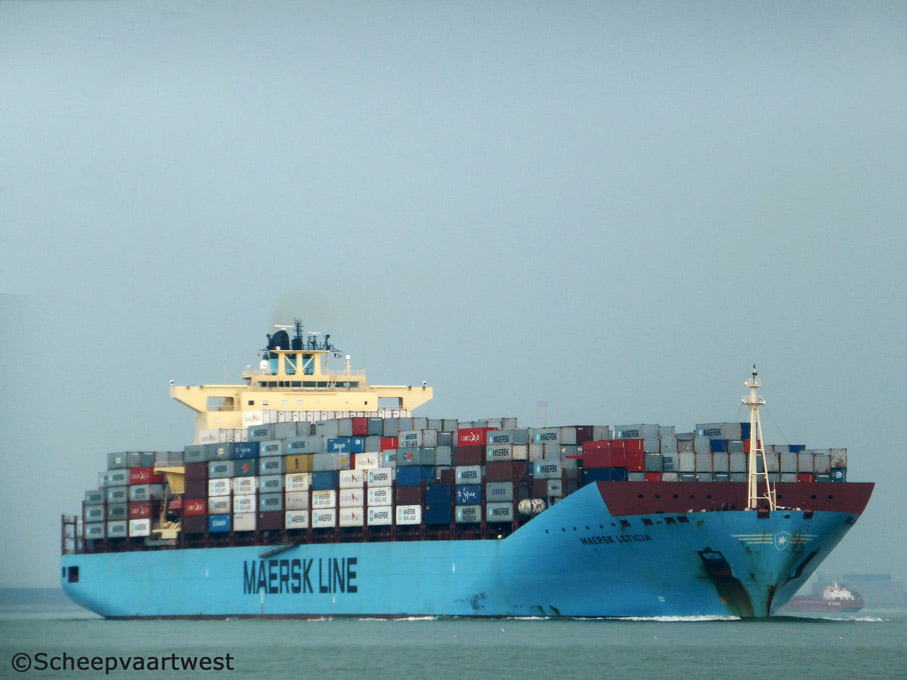

Maersk Leticia 01

Westerschelde 27 July 2014



Name

MAERSK LETICIA

Type

Cellular containership

IMO-number

9526916

Call sign

VRJC9

Flag

Hong Kong Special Administrative Region of the People's Republic of China

Port of registry

Hong Kong

GT

88.237 t registered

DWT

Summer: 94.267 t

NT

45.120 t registered

Number of 20ft containers

7.410

Reefer capacity

1.700

Length

299,90 m overall

286,80 m between perpendiculars

Breadth

45,20 m

Draught

12,40 m

Speed

Service: 22,83 knots

Built

2011

Keel laid

18.04.2011

Launch date

25.06.2011

Date of completion

20.09.2011

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.
Okpo
South Korea

Yard number

4218

Hull material

Steel

Main engine

1x MAN-B&W 9S90ME-C8 - 2 stroke single acting 9 cylinder 900 x 3.188 mm combustion engine 45.740 kW/ 62.188 hp at 78,0 rpm

Builder: Doosan Engine Co Ltd – South Korea

Propellers

1x Fixed Pitch propeller - aft at 78,0 rpm

Turbine generator

1x Mitshubishi ATD52CLN2 - 3.700 kW

Manufacturer: HHI Electro Electric System

Generators

1x MAN-B&W 6L32/40CD-10P main diesel generatorset HSJ7 805 - 2.800 kW

3x MAN-B&W 9L32/40CD main diesel generatorsets HSJ7 919-10P each - 4.300 kW

Manufacturer: Alfa Laval Qingdao Ltd.

Bow thruster

1x 2.300 kW

Number of tanks

Ballast: 27

Fuel oil: 12

Lubricating oil: 10

Fresh water: 6

Waste water: 4

Diesel oil: 4

Sludge: 3

Chain: 1

Tank capacities

Diesel Oil: 723.4 / 651.06 t

Freshwater: 522 m³

Fuel Oil: 9.082 m³ / 8.900,36 t

Lube Oil: 516,5 m³/ 464,85 t

Tank Ballast: 33.566,6 m³ / 34.405,765 t

Lifting equipment

1x Engine Room Crane AU20469732 - SWL 6,3 t

Manufacture Name: Danish Crane Building

1x Monorail Crane - SWL 12,5 t

Manufacture Name: Dongnam Marine Crane Co., Ltd.

Cargo gear

Gearless

Manager

AP Moller Maersk
Copenhagen
Denmark

Operator

Maersk Line

Owner

Maersk Shipping Hong Kong
Hong Kong
China

Latest data adjustment

23 August 2014
