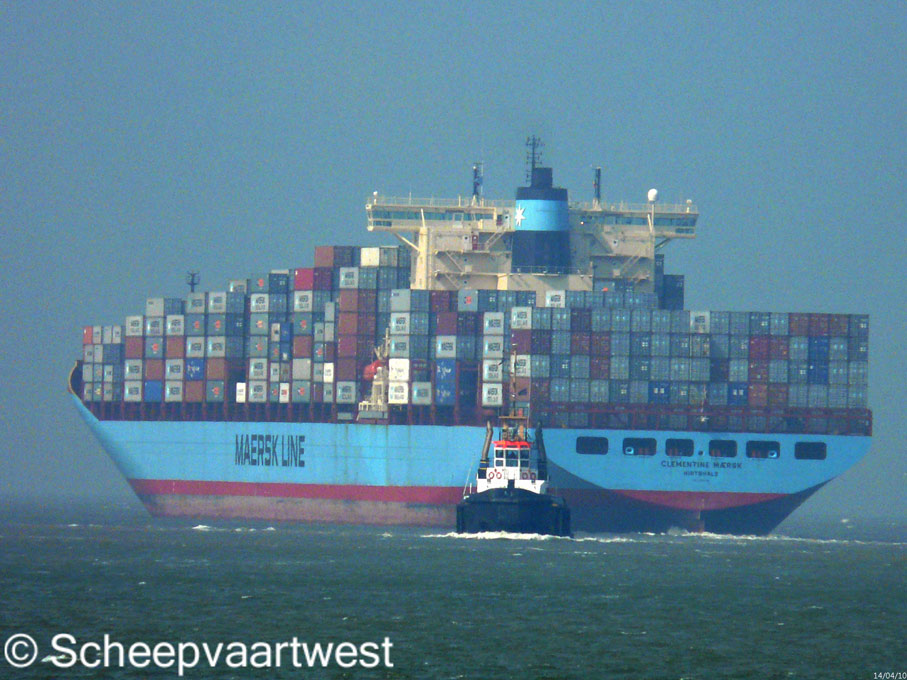

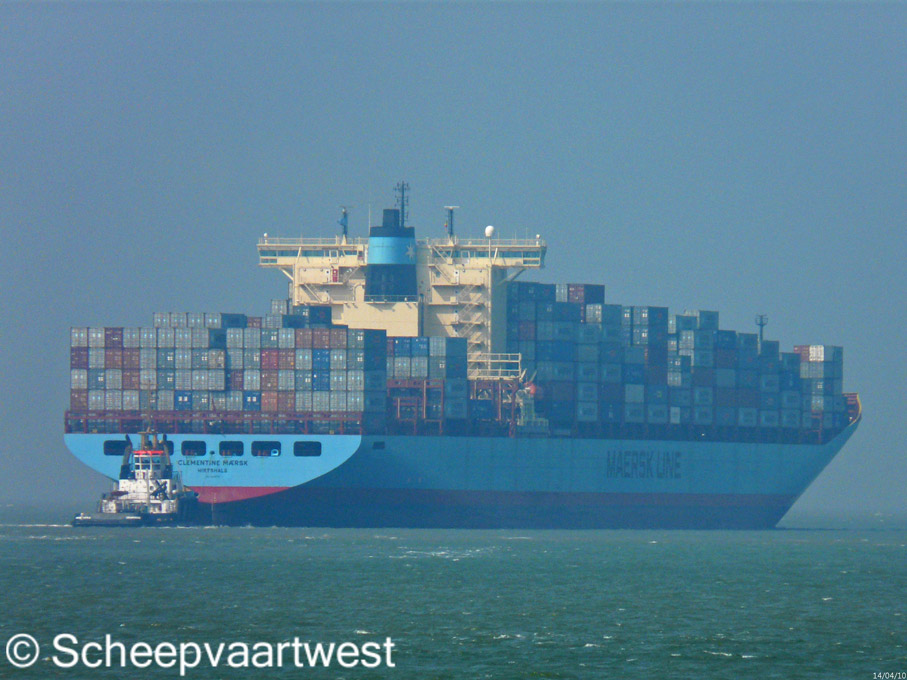

| Zeebrugge 14 April 2010 |
 |
| Zeebrugge 14/04/10 |
|
Name |
CLEMENTINE MAERSK |
|
Type |
Cellular containership |
|
IMO-number |
9245770 |
|
MMSI-number |
220164000 |
|
Call sign |
OUQK2 |
|
Flag |
The Kingdom of Denmark |
|
Port of registry |
Hirtshals |
|
GT |
91.921 t register Suez: 90.954 t |
|
DWT |
110.000 t |
|
NT |
53.625 t Suez: 80.197 t |
|
Number of 20ft containers |
8.890 |
|
Container capacity 14t |
7226 |
|
Reefer capacity |
700 |
|
Length |
346,98 m overall 331,54 m between perpendiculars |
|
Breadth |
42,80 m moulded |
|
Draught |
Summer: 15,00 m |
|
Freeboard |
9.166 mm |
|
Depth |
24,10 m moulded |
|
Speed |
Max.: 25,6 knots Cruising: 24,2 knots |
|
Built |
2002 |
|
Keel laid |
29.10.2001 |
|
Launch date |
02.10.2002 |
|
Delivery date |
07.11.2002 |
|
Builder |
Odense Steel Shipyard AS |
|
Yard number |
184 |
|
Hull material |
High strength steel |
|
Hull type |
Single hull |
|
Bulkhead |
Non tight: 10 Water tight: 15 |
|
Main engine |
1x Sulzer 12RTA96C - 12 cylinder 960 x 2.500 mm engine - 63.917 kW at 100,0 rpm Manufacturer: HSD-Wartsila Engine Co.Ltd. |
|
Propeller |
1x Six blades solid bronze propeller Manufacturer: Mecklenburger Metallguss GMBD |
|
Steam piping system |
1x Vertical water tube oil fired auxiliary boiler AQ-10/12W - 10,0 bar Total heating surface: 55 m² Manufacturer: Aalborg Industries |
|
Generators |
5x Siemens 1DK4138-8BF05-Z / MAN-B&W 7L32/40 main generatorsets each 3.125 kW |
|
Cargo capacity |
Grain: 192.141 m³ |
|
Number of tanks |
Ballast: 22 Fuel oil: 17 Sea water: 10 Lubricating oil: 8 Waste water: 5 Fresh water: 4 Diesel oil: 4 Portable water: 4 Chain: 2 Sludge: 2 Hydraulic oil: 1 |
|
Tank capacities |
Diesel oil: 527,2 m³ / 474,48 t Fresh water: 416,9 m³ Fuel oil: 1.5379 m³ / 15071,42 t Lube oil: 548,4 m³ / 493,56 t Ballast capacity: 31.220 m³ / 32.000,50 t |
|
Handling gear |
None |
|
Crew |
26 |
|
Manager |
A.P. Möller |
|
Operator |
Maersk Line |
|
Owner |
Rederiet A.P.Möller- Maersk A/S |
|
Registered Owner |
A. P. Moller - Maersk A/S |
