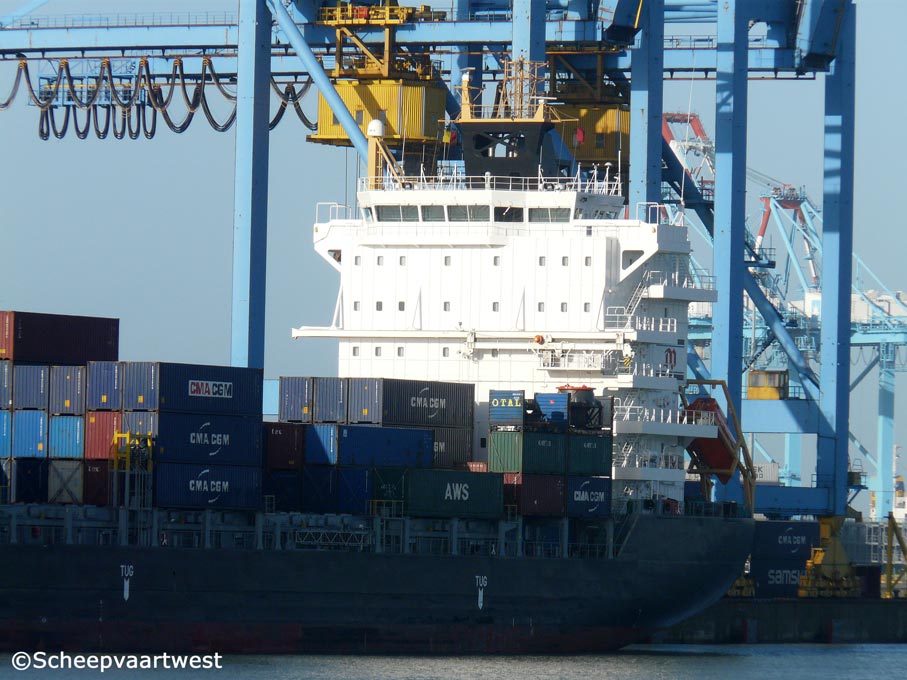

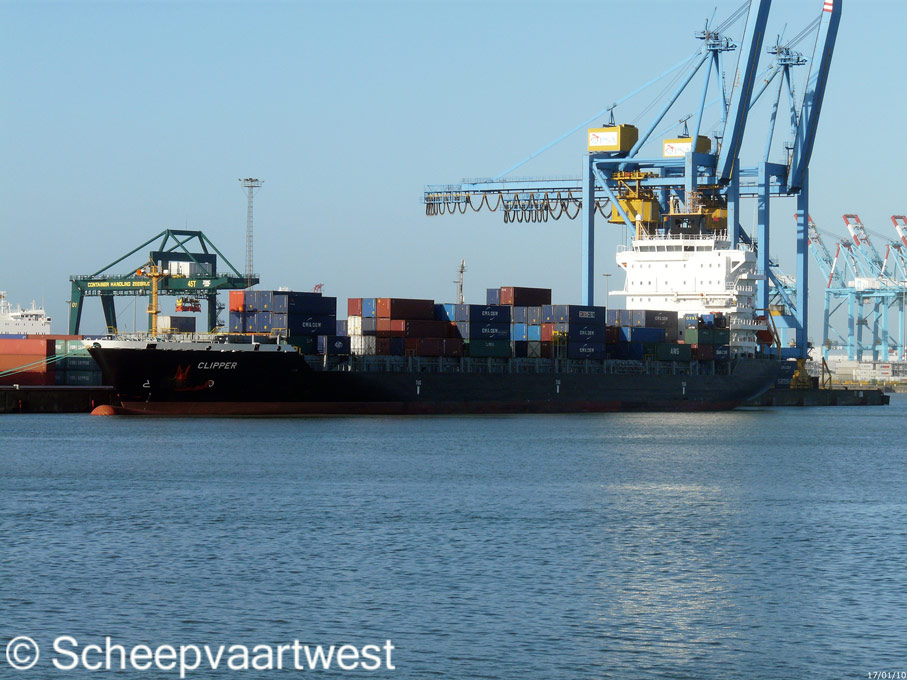

| Zeebrugge 17 January 2010 |
 |
 |
|

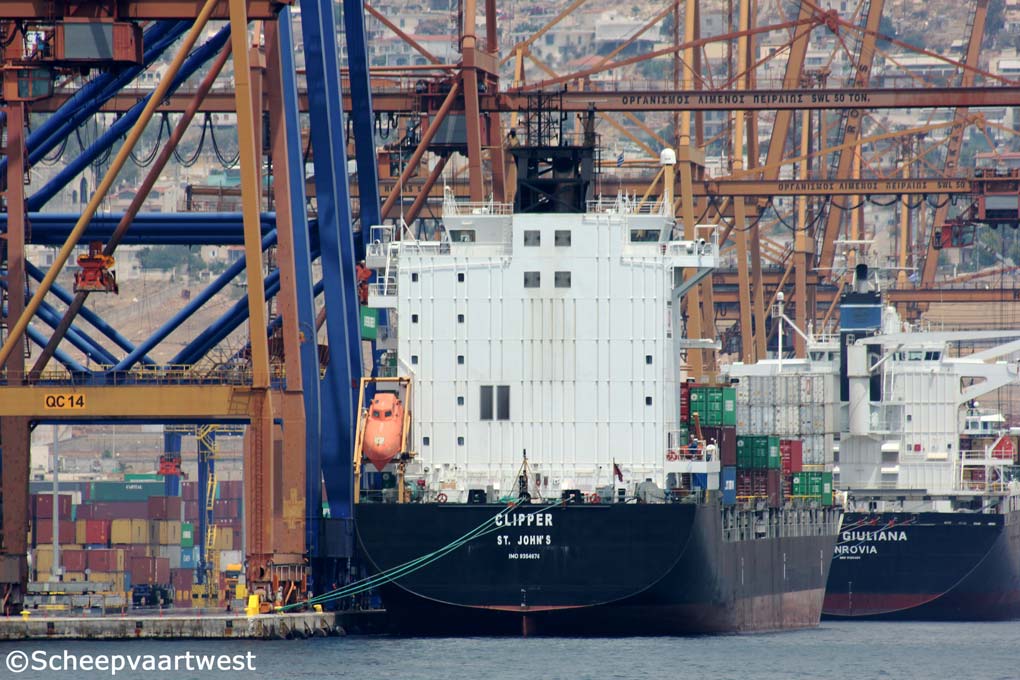

| Zeebrugge 17/01/10 | Piraeus, Greece 17/06/14 |
|
Name |
CLIPPER |
|
Type |
Cellular Containership |
|
IMO-number |
9354674 |
|
Call sign |
V2PZ4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
18.199 t |
|
DWT |
23.831 t |
|
NT |
8.666 t |
|
TEU |
1.706 |
|
Reefer point |
330 |
|
Length |
182,49 m overall 173,50 m between perpendiculars 175,31 m registered |
|
Breadth |
25,20 m registered |
|
Draught |
Summer: 10,00 m |
|
Freeboard |
4.230 mm |
|
Depth |
14,20 m moulded |
|
Speed |
20,63 knots |
|
Built |
2008 |
|
Keel laid |
17.07.2007 |
|
Launch date |
03.08.2008 |
|
Date of completion |
24.09.2008 |
|
Builder |
Wadan Yards MTW GmbH |
|
Yard number |
154 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke single acting 7 cylinder diesel 600 x 2.400 mm engine - 16.660 kW at 105,0 rpm Year of manufacture: 2007 Manufacturer: Hitachi Zosen Diesel and Engineering Co., Ltd. |
|
Propeller |
Solid propeller (keyless) - aft at 105 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 24,0 m² 1x Exhaust gas heated - 9,0 bar Heating surface: 328,0 m² Year of manufacture: 2008 Manufacturer: Saacke GmbH |
|
Electric installations |
1x Plant 450 V - 4.000 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 120 Ah 1x Plant 24 V - 140 Ah 1x Plant 24 V - 140 Ah |
|
Generators |
2x Main diesel generatorsets each 1.500 kVA / 1.200 kW 1x Main diesel generatorset - 1.000 kVA / 800 kW |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation - 140 Ah 1x Battery for UPS radio - 140 Ah 2x Batteries for start emergency engine each 120 Ah |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 950 kW, forward |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain Length: 605,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
24 |
|
Crew |
17 |
|
Manager |
Reederei Gebr. Winter GmbH & Co. KG |
|
Owner |
Clipper Blue Shipping Co. Ltd. |
|
Registered owner |
MS 'Clipper' Schiffahrts GmbH & Co KG |
