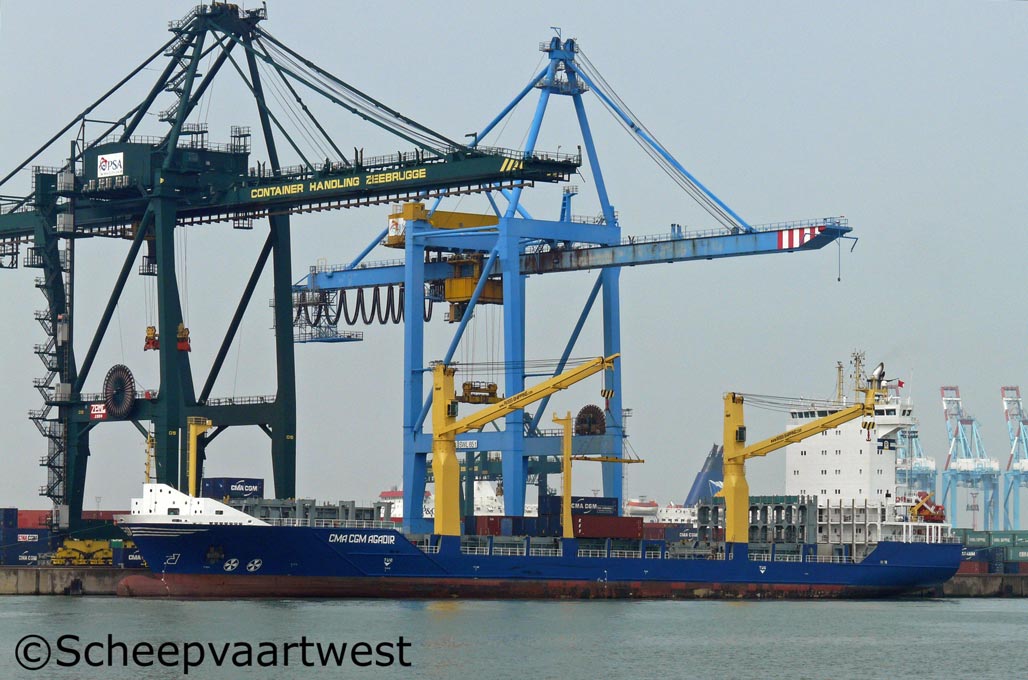

| Zeebrugge 16 April 2011 |
|
Name |
CMA CGM AGADIR |
|
Previous names |
Hoheweg |
|
Type |
Cellular containership |
|
IMO-number |
9362956 |
|
Call sign |
V2CG3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
9.981 t Suez: 10.366 t |
|
DWT |
11.814 t |
|
NT |
4.900 t Suez: 8.386 t |
|
Number of 20ft containers |
916 |
|
Container capacity 14t |
604 |
|
Reefer point |
252 |
|
Length |
139,11 m overall 130,49 m registered |
|
Breadth |
22,60 m registered |
|
Draught |
Summer: 8,80 m |
|
Forecastle |
29,49 m |
|
Poop |
11,20 m |
|
Freeboard |
3.014 mm |
|
Depth |
11,80 m |
|
Speed |
18,8 knots |
|
Line |
CMA CGM UK Feeder |
|
Built |
2007 |
|
Keel laid |
20.12.2005 |
|
Launch date |
10.11.2006 |
|
Date of completion |
02.04.2007 |
|
Builder |
Yangfan Group Co., Ltd. |
|
Yard number |
2035 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 8L 48/60 - 4 stroke 8 cylinder 480 x 600 mm diesel engine - 9.600 kW at 500 rpm Year of manufacture: 2006 Manufacturer: MAN Diesel & Turbo SE Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 130 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 43,0 m² 1x Exhaust gas heated - 10,0 bar Heating surface: 158,0 m² Year of manufacture: 2006 Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Electric installations |
1x Plant 450/230 V - 1.138 kVA 1x Plant 450/230 V - 1.138 kVA 1x Plant 450 V - 2.500 kVA 1x Plant 450 V - 721 kVA 1x Plant 24 V - 30 Ah 1x Plant 24 V - 60 Ah 1x Plant 24 V - 120 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 300 Ah |
|
Shaft generator |
1x 2.000 kW / 2500 kVA |
|
Generators |
2x Main diesel generatorsets each 910,4 kW / 1.138 kVA |
|
Emergency + Harbour gen. |
1x Diesel generatorset 576,8 / 721 kVA |
|
Batteries |
1x Battery for UPS radio 135 Ah 1x Battery for start emergency engine 120 Ah 1x Battery for UPS navigation 30 Ah |
|
Compressed air receivers |
2x Receivers each1.600 litres - 33,0 bar 1x Receiver 200 litres - 33,0 bar 1x Receiver 60 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster - 500 kW forward 1x Transverse thruster - 300 kW forward |
|
Largest hatch |
Length: 12,60 m Breadth: 18,00 m |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m |
|
Cargo gear |
2x Cranes NMF - SWL 45,0 t each |
|
Crew |
15 |
|
Crew size |
19 |
|
Manager |
Rass Schiffahrts GmbH |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Owner |
Hoheweg GmbH & Co. KG |
|
Renamed |
02.2017 Hoheweg Antigua & Barbuda, St. Johns - Call sign: V2CG3 |
|
Latest data adjustment |
05 June 2017 |
