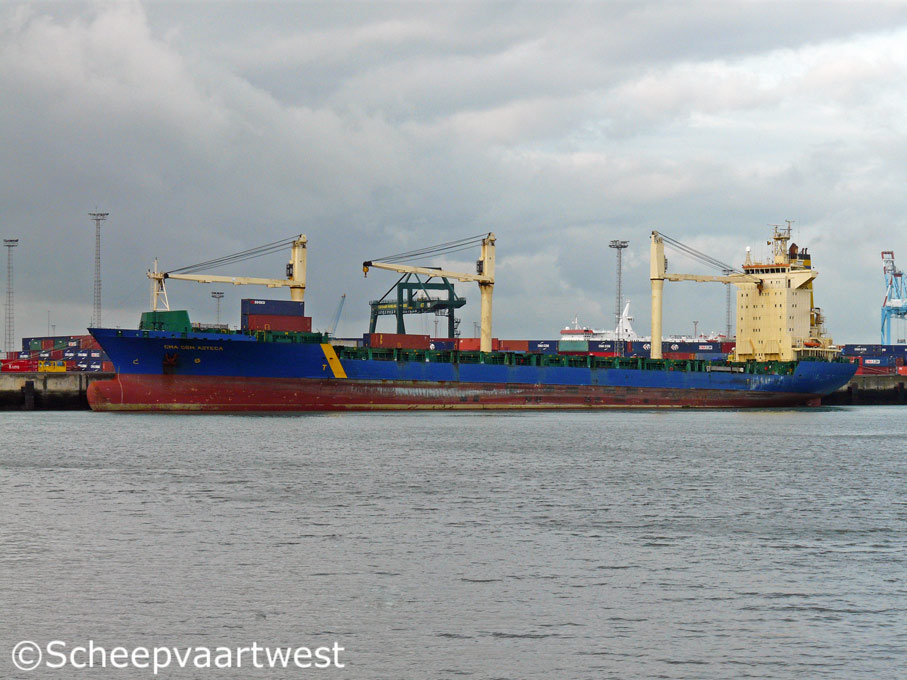

CMA CGM Azteca - IMO 9144146

Name

CMA CGM AZTECA

Previous names

1998-1999 CSAV Rimac
1999-2000 Crowley Express
2000-2001 CSAV Valencia
2001-2001 Wehr Muden
2001-2002 TMM Quetzal
2002-2003 Wehr Muden
2003-2004 CSAV Hongkong
2004-2006 Wehr Muden
2006 CMA CGM Aateca

Type

Cellular containership

IMO-number

9144146

Call sign

V7DS8

Flag

Marshall Islands

Previous flags

1998 Liberia
2002 Germany

Port of registry

Majuro

GT

16.801 t

DWT

22.983 t

NT

8.672 t
Suez: 14.406,49 t

Number of 20ft containers

1.730

Container capacity 14t

1.125

Reefer points

200 reefer plugs

Length

183,93 m overall
171,94 m between perpendiculars
172,36 m registered

Breadth

25,30 m over all

Draught

Summer: 9,889 m

Forecastle

36,93 m

Poop

15,15 m

Freeboard

3.610 mm

Depth

13,50 m

Speed

19,6 knots

Built

1998

Keel laid

07.11.1997

Launch date

20.12.1997

26.03.1998

Builder

Stocznia Szczecinska S.A.
ul. Hutnicza 1
71-642 Szczecin
Republic of Poland

Yard number

B170-I/12

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull
Double bottom

Watertight bulkheads

6

Continuous decks

2

Main engine

1x Sulzer 6 RTA 62U 2 stroke single acting 6 cylinder 620 x 2.150 mm diesel engine - 13.320 kW
Built: 1998
Builder: Cegielski Poznan - Poland

Number of screws

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 7,0 bar

Heating surface: 44,7 m²

Year of manufacture: 1997

Manufacturer: Thermal Engineering International Ltd. Greens Division

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 582,0 m²

Year of manufacture: 1997

Manufacturer: Aalborg Sunrod

Auxiliary power

3x H.Cegielski 9S20H - 1.232 kW

Electric installations

1x Plant 440/220 V - 4.110 kVA
1x Plant 440 V - 138 kVA
1x Plant 24 V - 432 Ah

Generators

3x Main diesel generatorsets each 1.370 kVA

Emergency generator

1x 138 kVA

Compressed air receivers

2x Receivers each 6.300 litres - 30,0 bar
1x Receiver 500 litres - 30,0 bar
1x Receiver 350 litres - 16,5 bar

Bow thruster

1x Transverse thruster Zamech - 590 kW forward

Cargo capacity

Grain: 29.817 m³

Tank capacities

Ballast: 7.867 m³
Bunker: 2.231 t
Fuel oil: 2.231 m³

Lifting equipment

3x Cranes SWL - 45 t each

Crew

21

Manager

Oskar Wehr KG GmbH & Co.
Am. Kaiserkai 13
20457 Hamburg
Federal Republic of Germany

Operator

CMA CGM

Owner

DS-Rendite-Fonds Nr. 63 MS "WEHR MOSEL" GmbH & Co. Containerschiff KG
Stockholmer Allee 53
44269 Dortmund
Federal Republic of Germany
