Westerschelde 14 December 2016 |
|
Name |

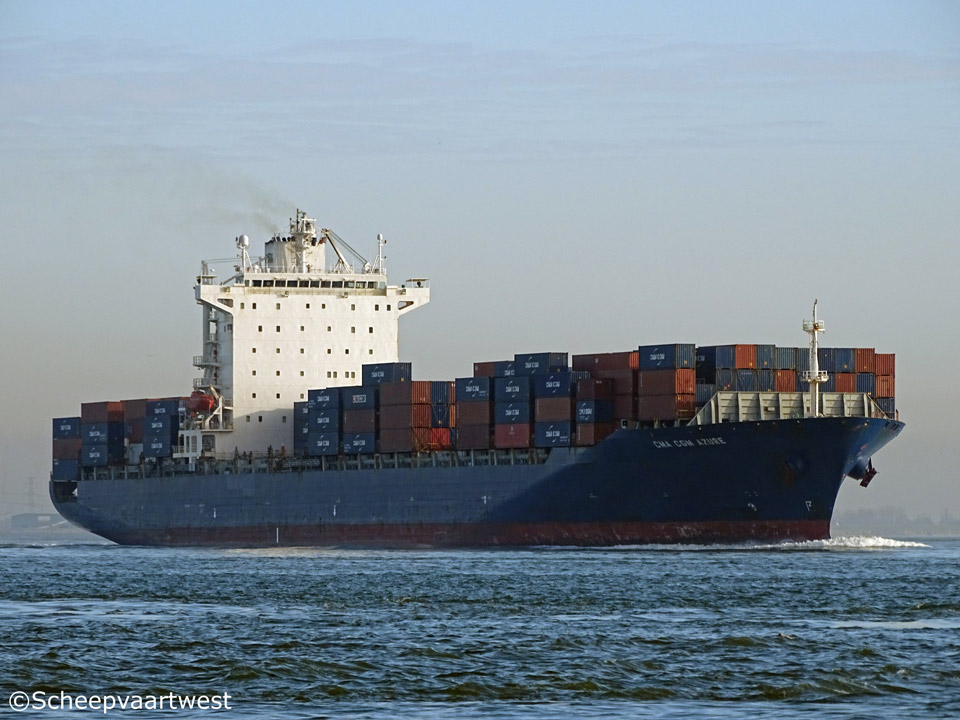

CMA CGM AZURE |
|
Previous names |
Marte Rickmers |
|
Type |
Cellular containership- Handysize Panamax |
|
IMO-number |
9324851 |
|
Call sign |
9V8055 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
39.906 t Suez: 41.504 t |
|
DWT |
Summer: 50.629 t |
|
NT |
24.504 t Suez: 24.898 t |
|
Number of 20ft containers |
In hold: 1.586 On deck: 2.664 Total: 4.250 |
|
Container capacity 14t |
2.805 |
|
Reefer capacity |
400 |
|
Length |
260,05 m overall 246,04 m between perpendiculars |
|
Breadth |
32,30 m extreme 32.25 m moulded |
|
Draught |
12,60 m |
|
Keel to mast end |
54,93 m |
|
Depth |
19,30 m |
|
Speed |
Max: 24,5 knots |
|
Built |
2007 |
|
Keel laid |
30/09/2006 |
|
Launch date |
18/04/2007 |
|
Date of completion |
11/07/2007 |
|
Builder |
Dalian Shipbuilding Industry Co., Ltd. China |
|
Yard number |
CS 4250-3 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Doosan 8K90MC-C - 2 stroke single acting 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW/ 49.707 hp at 104,0 rpm Builder: Doosan Engine Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boiler |
1x Auxiliary boiler, composite Mission OC |
|
Generators |
4x MAN SXD 9L21/31 - 4 stroke 9 cylinder 210 x 310 mm diesel engines each 1.800 kW connected with generators each 1.700 kW / 450 Volt 60 Hz |
|
Emergency generator |
1x Sisu 645 DSBAG diesel generatorset 200 kW |
|
Bow thruster |
1x 1.600 kW / 2.175 bhp, forward |
|
Tank capacities |
Ballast: 11.665,1 m³ |
|
Lifting equipment |
Length: 687,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Manager |
Rickmers Shipmanagement (Singapore) Pte. Ltd. |
|
Operator |
CMA CGM |
|
Registered owner |
Marte Rickmers Navigation Ltd. Trust Company Complex Ajeltake Road Ajeltake Island Majuro, MH96960 Marshall Islands |
|
Renamed |
2017 Marte Rickmers Marshall Islands, Majuro 07/2017 Navios Azure Marshall Islands, Majuro - Call sign: V7WK3 Owner: Bertyl Ventures Co, Majuro - Marshall islands Manager: Navios Containers Management Inc., 185 38 Piraeus - Greece |
|
Latest data adjustment |
01 February 2017 |
