Westerschelde 05 April 2015 |
|
Name |

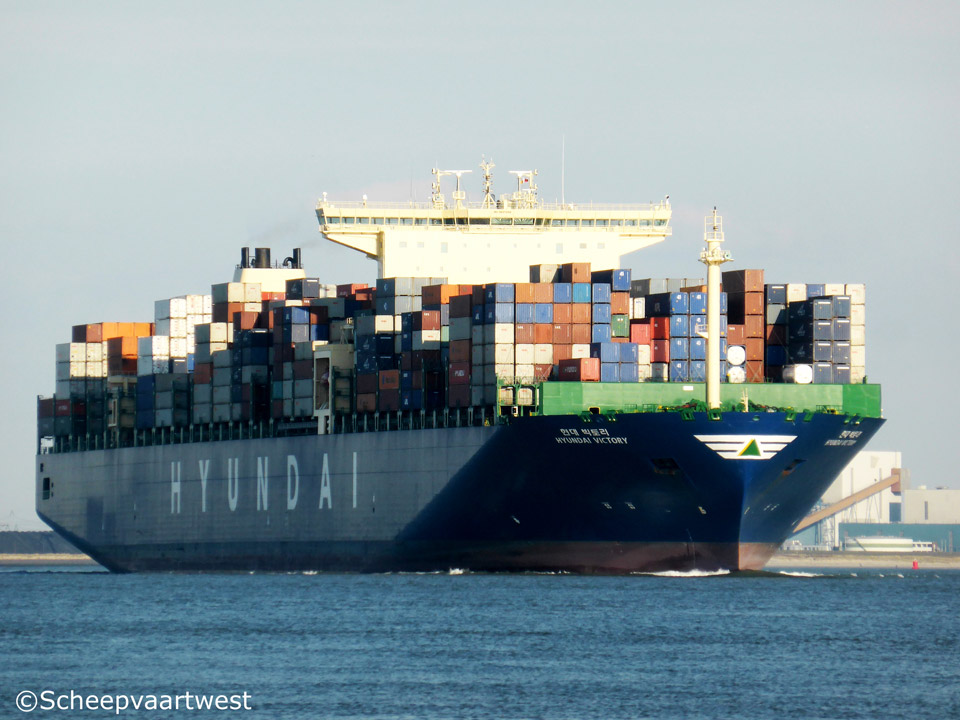

HYUNDAI VICTORY |
|
Type |
Cellular containership |
|
IMO-number |
9637258 |
|
Call sign |
V7FO2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
141.868 t |
|
DWT |
145.683 t |
|
NT |
78.387 t |
|
Number of 20ft containers |
In hold: 6.072 On deck: 7.082 Total: 13.154 |
|
Reefer capacity |
800 |
|
Length |
365,50 m overall 349,50 m between perpendiculars |
|
Breadth |
48,40 m |
|
Draught |
Max.: 15,52 m |
|
Reg. Dimensions L x B x D |
351,35 x 48,40 x 22,69 m |
|
Rule Dimensions L x B x D |
349,50 x 48,40 x 29,90 m |
|
Freeboard |
7.451 mm |
|
Depth |
29,90 m |
|
Speed |
Max.: 22,8 knots |
|
Built |
2014 |
|
Keel laid |
10.12.2013 |
|
Launch date |
02.03.2014 |
|
Date of completion |
04.07.2014 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd., |
|
Yard number |
4275 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 10S90ME-C9.2 - 2 stroke 10 cylinder 900 x 3.260 mm diesel engine output 48.510 kW at 84,0 rpm Built: 11.2013 Builder:Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division (B&W), Ulsan - South Korea |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary Boiler (Water tube boiler) Pressure: 10,0 kg/cm² Heating surface: 60,7 m² Built: 12.2013 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea |
|
Generators |
4x HimSen 8H32/40 diesel generatorsets - 4.067 kVA |
|
Hatchway number |
9 Hatch 1: 25,20 x 38,21 m Hatch 2: 25,20 x 43,37 m Hatch 3: 25,20 x 43,37 m Hatch 4: 25,20 x 43,37 m Hatch 5: 25,20 x 43,37 m Hatch 6: 25,20 x 43,37 m Hatch 7: 25,20 x 43,37 m Hatch 8: 37,80 x 43,37 m Hatch 9: 37,80 x 43,37 m |
|
Tank capacities |
Fuel oil: 12.693,1 m³ Fresh water: 684,1 m³ Water ballast: 48.516,5 m³ |
|
Manager |
Hyundai Merchant Marine Co., Ltd. |
|
Technical manager |
Hyundai Ocean Service Co., Ltd. |
|
Operator |
HMM - Hyundai Mercant Marine |
|
Owner |
Leader Ship International 4 S.A. |
|
Latest data adjustment |
05 December 2016 |
