| Westerschelde 20 December 2015 |
|
Name |

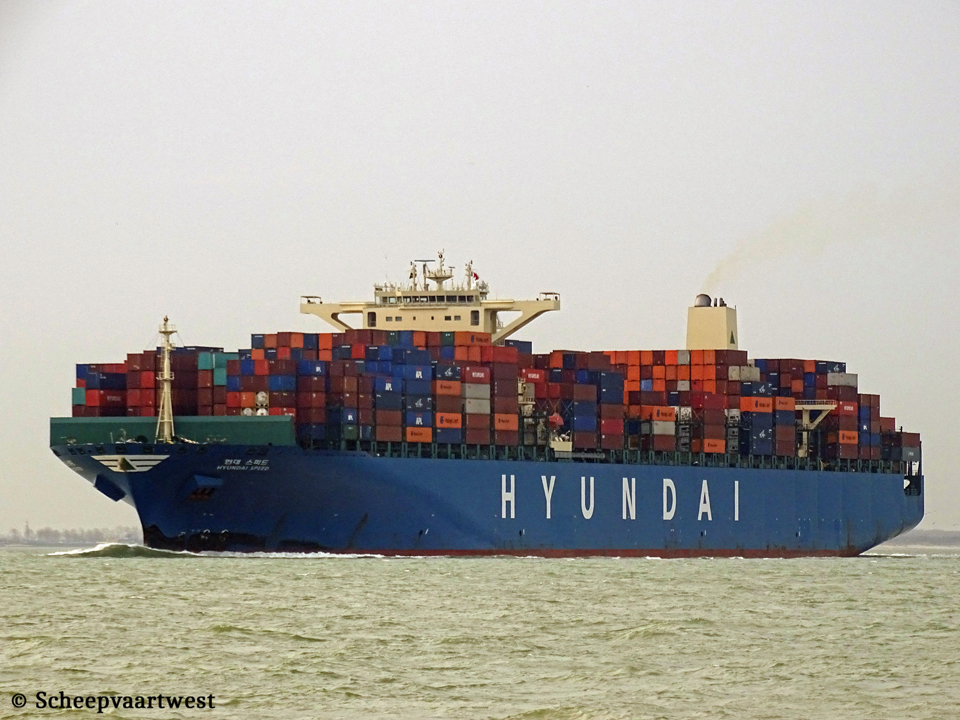

HYUNDAI SPEED |
|
Type |
Cellular containership - Post Panamax |
|
IMO-number |
9475698 |
|
Call sign |
SWIMS |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
Previous flags |
2012 - 2014 Liberia, Monrovia - Call sign: D5BU5 |
|
GT |
140.979 t |
|
DWT |
141.356 t |
|
NT |
59.132 t |
|
Number of 20ft containers |
13.092 |
|
Container capacity 14t |
9.000 |
|
Reefer capacity |
800 |
|
Length |
366,00 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m extreme |
|
Draught |
Summer: 15,50 m |
|
Speed |
Max: 24,7 knots |
|
Built |
2012 |
|
Keel laid |
29/12/2011 |
|
Launch date |
13/04/2012 |
|
Date of completion |
07/06/2012 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. South Korea |
|
Yard number |
S459 |
|
Hull material |
Steel |
|
Main engine |
1x Hyundai/MAN-B&W 12K98ME-C7.1-TII - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW / 98.218 hp at 104,0 rpm Build: 2012 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
Steam boiler, exhaust gas heated - 7,85 bar Heating surface: 642,0 m² Build: 2011 Builder: KangRim Industries Co., Ltd. (3rd Factory) Steam boiler, oil fired - 7,85 bar Heating surface: 73,4 m² Build: 2012 Builder: KangRim Heavy Industries Co., Ltd. (1st Factory) |
|
Electric installations |
1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3/600 kVA 1x Plant 450 V - 375 kVA 2x Plants each 24 V - 65 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 2x Plants each 110 V - 40 Ah |
|
Generators |
5x Hyundai/Himsen 6H32/40 Main diesel generatorsets each 3.600 kVA Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Batteries |
1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 200 Ah 2x Batteries for other purpose each 65 Ah 2x Batteries for automation each 40 Ah |
|
Compressed air receivers |
2x Receivers each 14.500 litres - 32,4 bar 1x Receiver 250 litres - 32,4 bar 1x Receiver 2.000 litres - 7,6 bar 1x Receiver 200 litres - 7,56 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Tank capacities |
Ballast: 36.089,8 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 122 mm |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Danaos Shipping Co., Ltd. 14, Akti Kondyli 185 45 Piraeus Greece |
|
Registered owner |
Megacarrier No 4 Corp Care of Danaos Shipping Co., Ltd. 14, Akti Kondyli 185 45 Piraeus Greece |
|
Renamed |
2018 Maersk Exeter Greece, Piraeus - Call sign: SVBY3 |
|
Latest data adjustment |
28 December 2018 |
