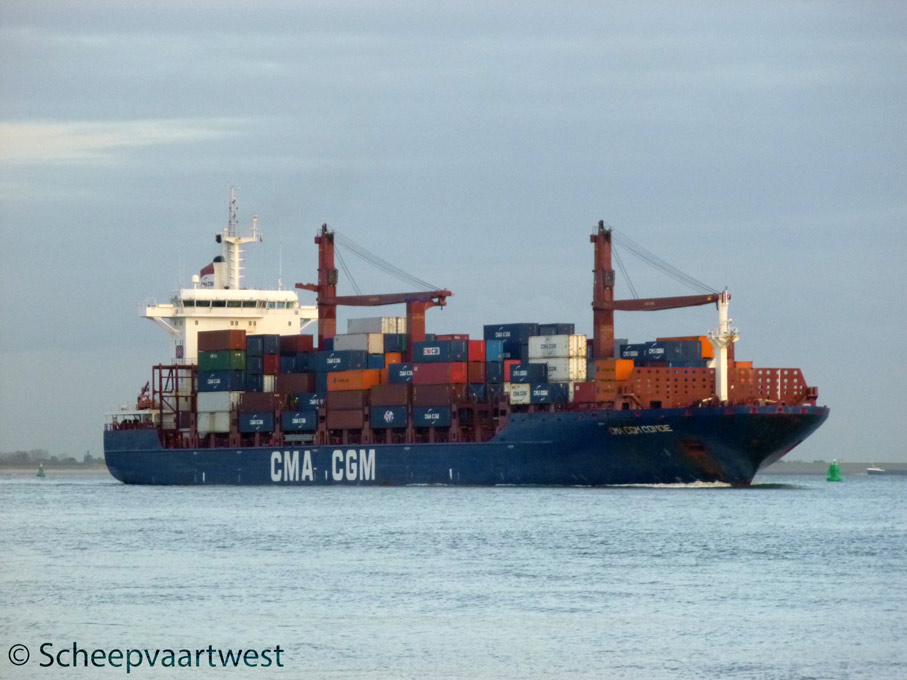

CMA CGM Comoe - IMO 9339868

Name

CMA CGM COMOE

Previous names

Rio Sao Francisco

Type

Cellular containership

IMO-number

9339868

Official number

91467

Call sign

A8OE9

Flag

Liberia

Port of registry

Monrovia

GT

23.633 t

DWT

27.155 t

NT

10.899 t

Number of 20ft containers

2.007

Container capacity 14t

1.620

Reefer plug

510

Length

190,94 m overall

182,35 m registered

Breadth

28,50 m registered

Draught

11,50 m

Forecastle

41,68 m

Poop

15,99 m

Freeboard

5.330 mm

Depth

16,80 m moulded

Speed

20,8 knots

Built

2008

Keel laid

01.03.2007

Launch date

02.07.2007

Date of completion

01.02.2008

Builder

Zhejiang Shipbuilding Co., Ltd.
69, Jiangnan Road
Ningbo, 315040 Zhejiang
People's Republic of China

Yard number

ZJB04-128

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W 8S60ME-C - 2 stroke 8 cylinder 600 x 2.400 mm diesel engine - 19.040 kW at 105,0 rpm

Year of manufacture: 2007

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
200129 Shanghai
People's Republic of China

Propellers

1x Solid propeller (keyless) - aft at 105,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 21,8 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 274,0 m²

Year of manufacture: 2007
Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.
Machinery Industry Park Qingdao Development Area
Qingdao, 266500 Shandong
People's Republic of China

Electric installations

4x Plants each 450 V - 1.820 kVA

1x Plant 450 V - 250 kVA

Generators

4x Main diesel generatorsets each 1.820 KVA / 1.456 kW

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 6.000 litres - 33,0 bar

1x Receiver 400 litres - 33,0 bar

1x Receiver 1.500 litres - 7,0 bar

Bow thruster

1x Transverse thruster - 1.060 kW, forward

Anchor equipment

3x Anchors weight each 8.700 kg

Chain length: 632,50 m

Cargo gear

3x Cranes - each SWL 45,0 t

Crew size

25

Manager

MPC Münchmeyer Petersen Steamship GmbH & Co. KG
Palmaille 67
22767 Hamburg
Federal Republic of Germany

Operator

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

4 Quai d'Arenc
Marseille
France

Registered owner

MS "Rio Sao Francisco" Privatplatzierung Schifffahrts GmbH & Co. KG
Palmaille 67
22767 Hamburg
Federal Republic of Germany

Last update

30.03.2013
