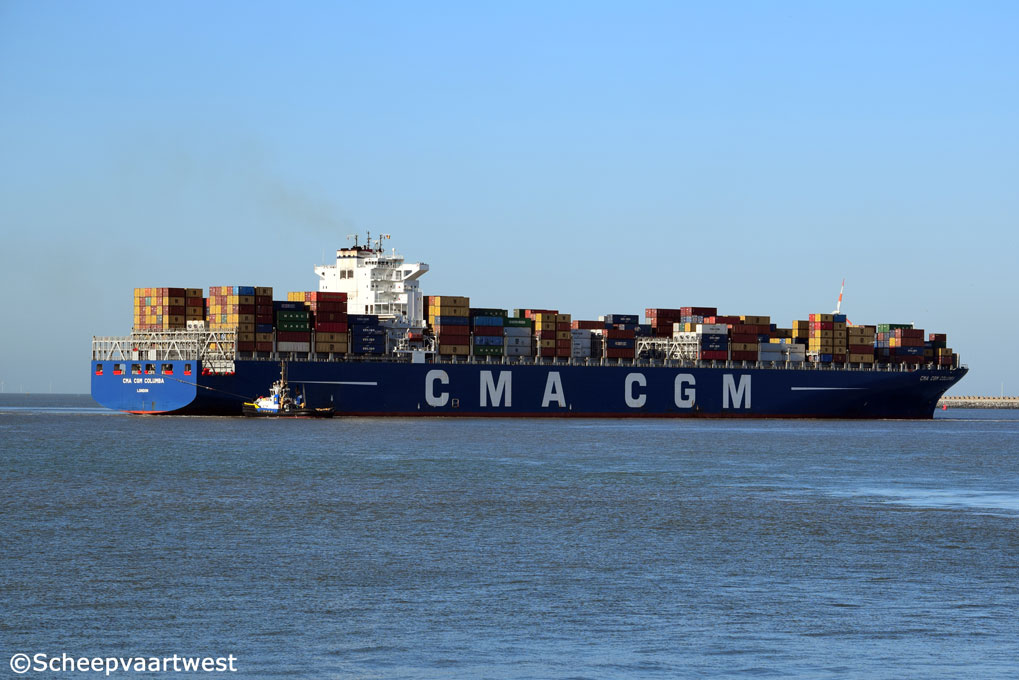

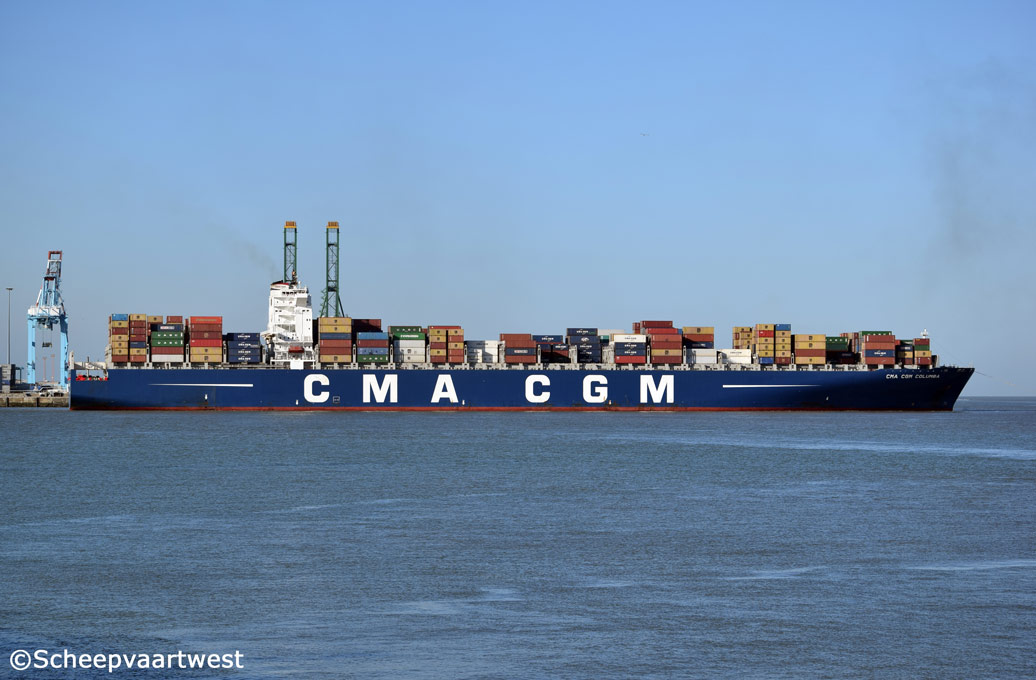

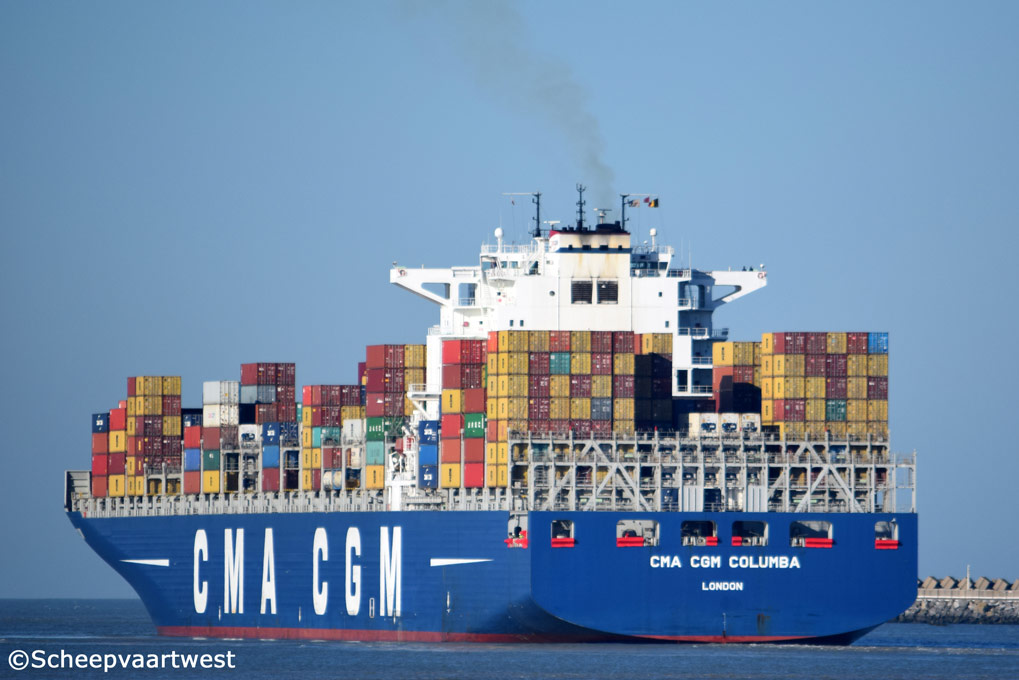

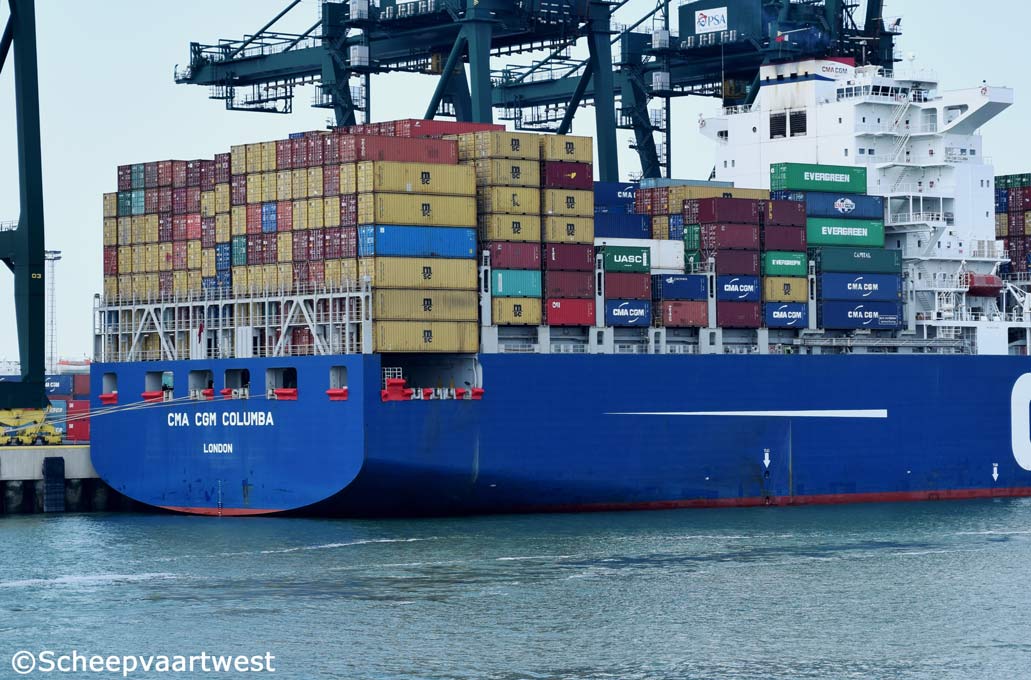

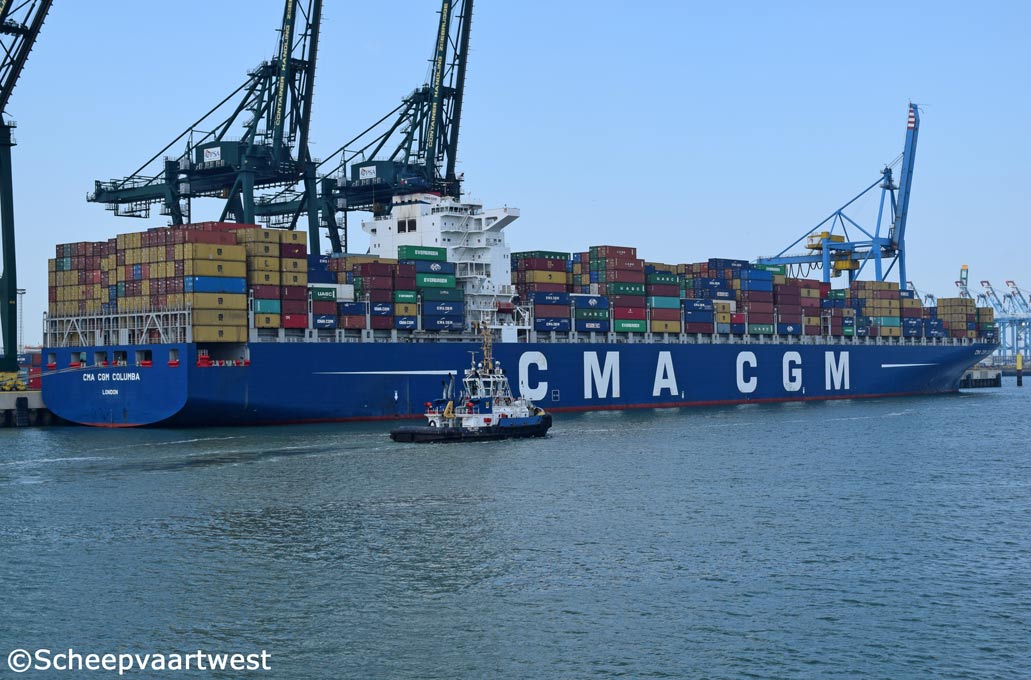

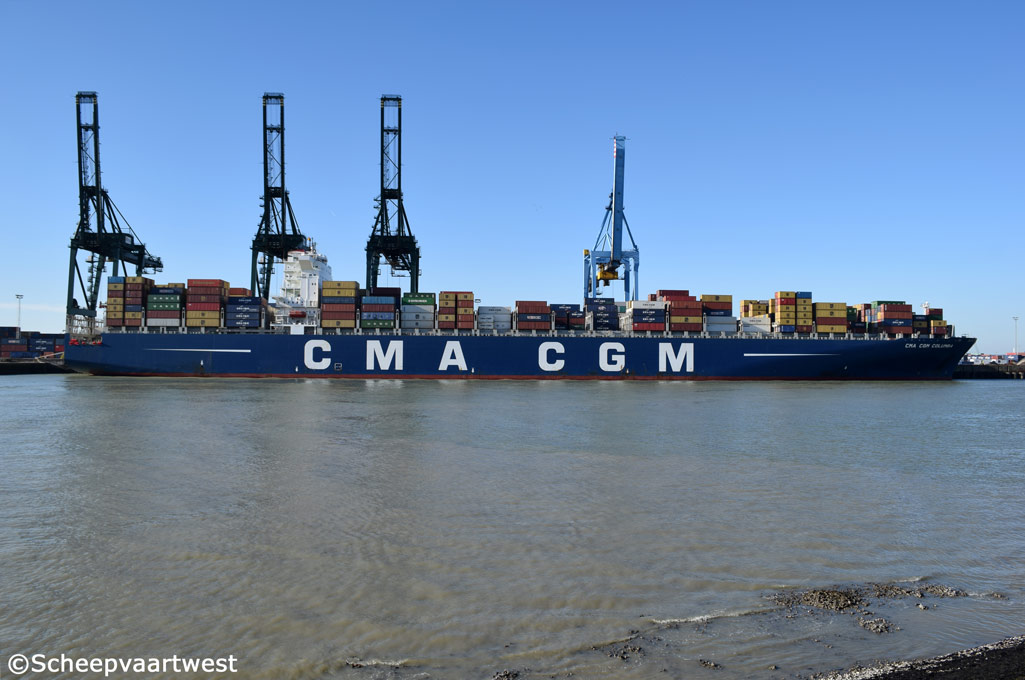

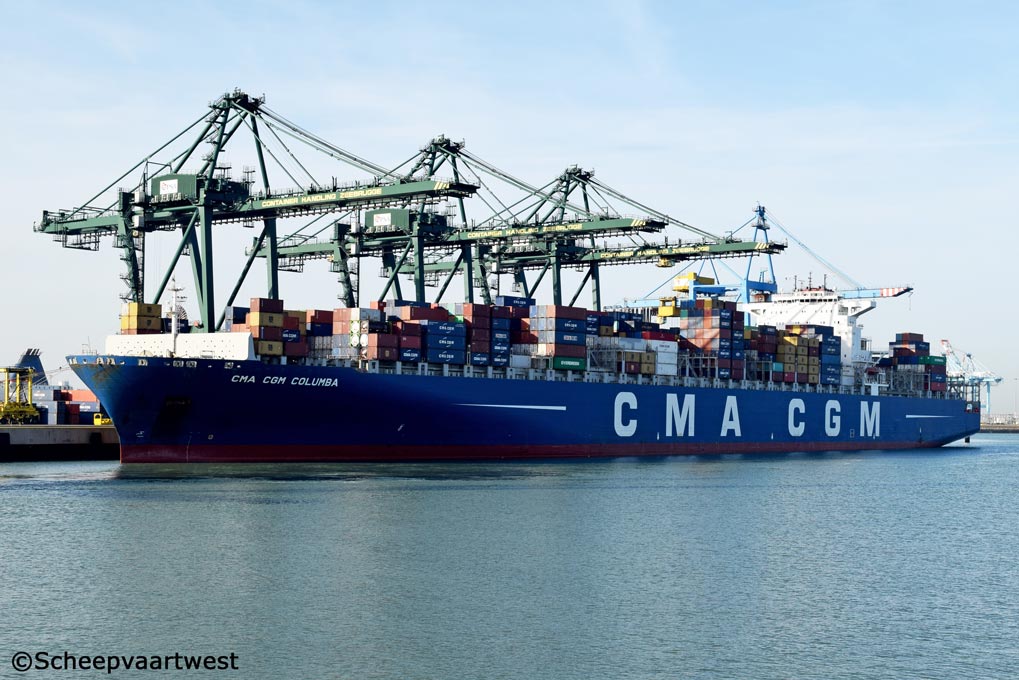

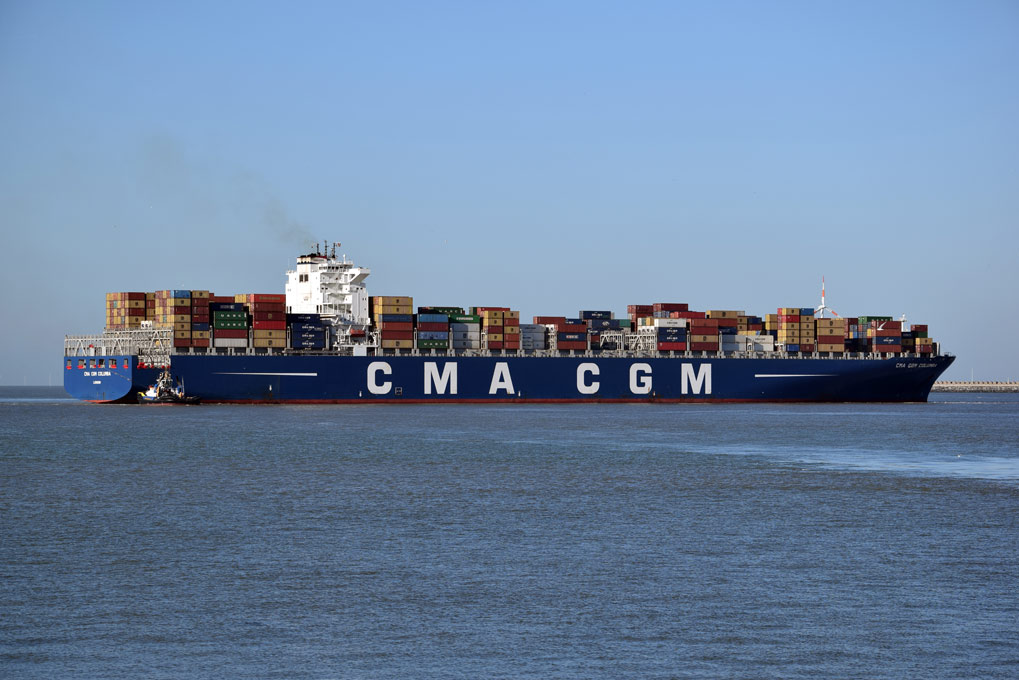

| Zeebrugge 03 February 2014 |
 |
 |
 |
 |
 |
 |
|||||
| Zeebrugge 03/02/14 | Zeebrugge 03/02/14 | Zeebrugge 03/02/14 | Zeebrugge 03/02/14 | Zeebrugge 21/04/11 | Zeebrugge 19/05/14 |
 |
 |
|
| Zeebrugge 19/05/14 | Zeebrugge 31/10/14 |
|
Name |
CMA CGM COLUMBA |
|
Type |
Cellular containership |
|
IMO-number |
9410789 |
|
Call sign |
2DBC9 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
131.332 t Suez: 135.479,26 t |
|
DWT |
Summer: 131.228,3 t |
|
NT |
59.901 t Suez: 122.614,25 t |
|
Number of 20ft containers |
11.388 |
|
Container capacity 14t |
8.106 |
|
Reefer point |
800 on deck |
|
Length |
363,00 m overall 348,00 m between perpendiculars |
|
Breadth |
45,60 m |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
7.451 mm |
|
Depth |
29,74 m |
|
Speed |
Max.: 24,7 knots |
|
Built |
2011 |
|
Delivery date |
18.03.2011 |
|
Builder |
HHI - Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1997 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartment |
13 |
|
Continuous decks |
2 |
|
Main engine |
1x HHI MAN B&W 12K98 ME-C Mk 7 - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine- 72.240 kW / 98.152 hp at 104,0 rpm Builder: Hyundai Heavy Industries Co., Ltd., Ulsan - South Korea |
|
Propelling system |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO AALBORG 40,14 m² - 9,0 bar |
|
Generators |
3x Main diesel generatorsets each 2.926 kVA - 2.341 kW - 3.139 hp |
|
Bow thruster |
3000 kW |
|
Number of holds |
10 |
|
Total hold capacity |
288.653,70 m³ |
|
Fuel capacity |
15.562 m³ |
|
Cargo gear |
Gearless |
|
Crew |
27 |
|
Managing Owners |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritim |
|
Owner |
Alize 1997 |
|
Latest data adjustment |
09 February 2014 |
