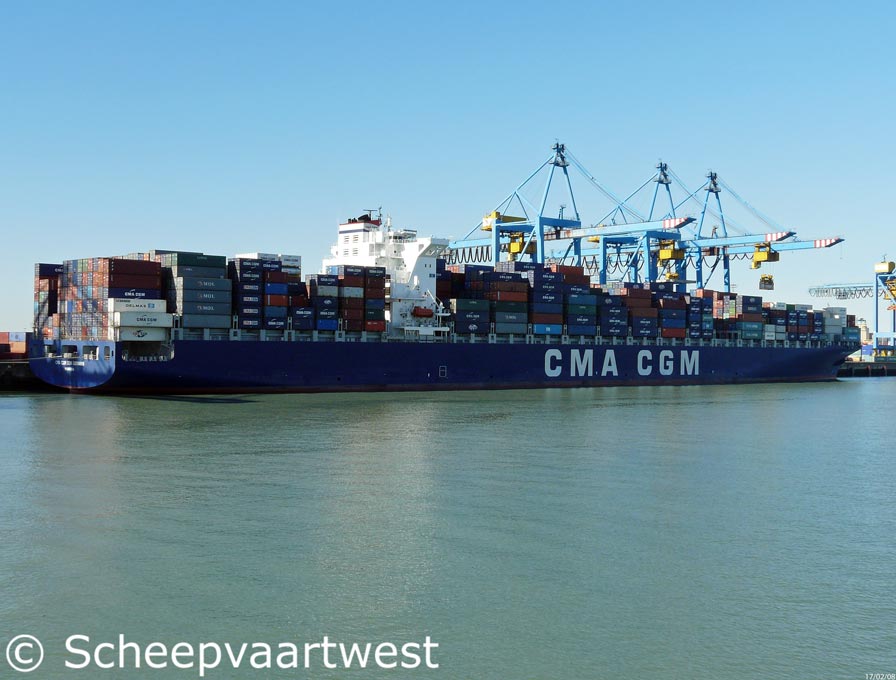

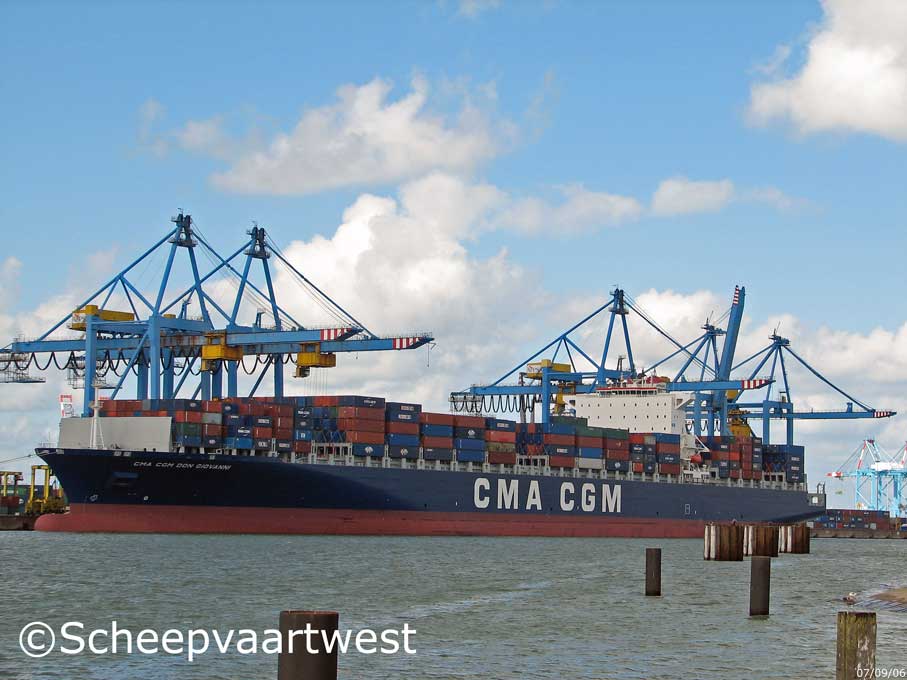

CMA CGM Don Giovanni - IMO 9305506

Name

CMA CGM DON GIOVANNI

Previous name

2006-2006 ER Toronto

Type

Cellular containership

IMO-number

9305506

Call sign

A8IE7

Flag

Liberia

Port of registry

Monrovia

GT

91.649 t

DWT

Summer: 100.680 t

NT

55.388 t

Number of 20ft containers

8.204

Container capacity 14t

6.090

Reefer points

700

Length

334,08 m overall
319,00 m between perpendiculars

320,94 m registered

Breadth

42,80 m overall

Draught

Summer: 14,50 m

Bow to bridge

152,47 m

Forecastle

160,47 m

Freeboard

5.640 mm

Depth

20,14 m

Speed

25,4 knots

Built

2006

Keel laid

23.01.2006

Launch date

14.04.2006

Date of completion

24.06.2006

Builder

Hyundai Samho Heavy Industries Co., Ltd. / Yeongam-gun
1700, Yongdang-ri, Samho-eup
Yeongam-gun , Cheollanam-do 526-701
Republic of Korea

Yard number

S261

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN B&W 12K98MC - 2 stroke single acting 12 cylinder 980 x 2.660 mm diesel engine - 68.640 kW

Built: 2006

Builder: Hyundai Heavy Industries, Ulsan - South Korea

Number of screws

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 10,0 bar
Heating surface: 42,17 m²
1x Steam boiler, exhaust gas heated - 10,0 bar
Heating surface: 677,0 m²

Year of manufacture: 2006
Manufacturer: Aalborg Industries Ltd.

Electric installations

1x Plant 6.600 V - 16.265 kVA

1x Plant 450 V - 525 kVA

1x Plant 12 V - 92 Ah

1x Plant 24 V - 600 Ah

Generators

2x Man-B&W 9L27/38 main diesel generatorsets each 3.733 kVA / 2.944 kW

3x Man-B&W 7L27/38 main diesel generatorsets each 2.933 kVA / 2.310 kW

Emergency generator

1x Diesel generatorset 525 kVA

Batteries

1x Battery for UPS Radio - 200 Ah

Bow thruster

1x Transverse thruster - 2.500 kW, forward

Compressed air receivers

2x Receivers, each 16.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

1x Receiver 2000 litres - 7,8 bar

1x Receiver250 litres - 7,7 bar

Anchor equipment

3x Anchors weight each 18.800 kg

Chain length: 742,50 m

Cargo gear

Gearless

Crew size

31

Manager owners

ER Schiffahrt GmbH & Cie. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Operator

CMA CGM

Owner

MS "LLOYD DON GIOVANNI" Schifffahrtsges. mbH & Co. KG
Hohe Bleichen 12
20354 Hamburg
Federal Republic of Germany

Renamed

08.2016 Lloyd Giovanni
