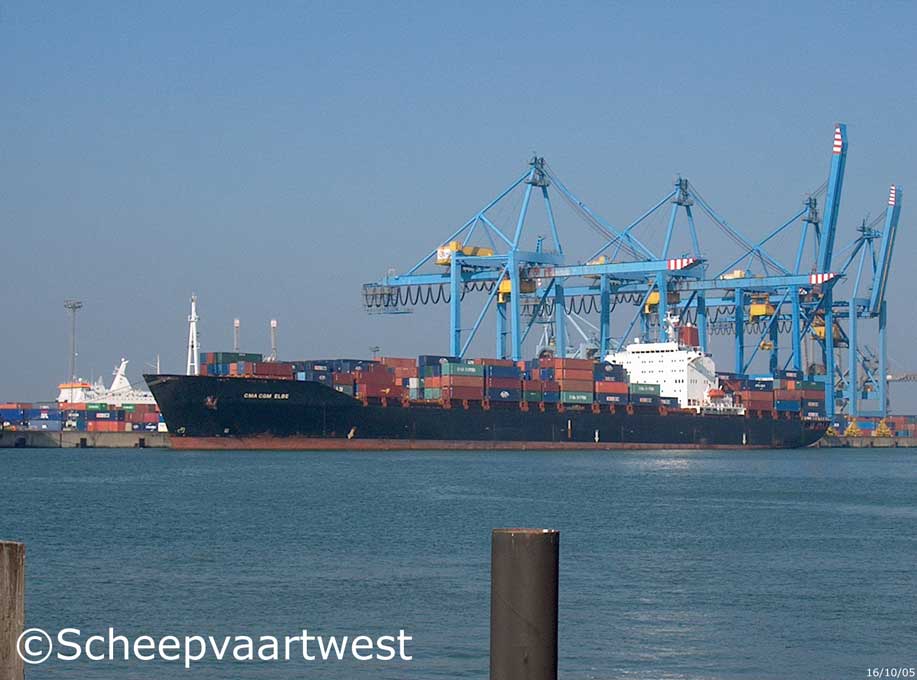

| Zeebrugge 16 October 2005 |
|
Name |
CMA CGM ELBE |
|
Previous name |
1991–31.07.2003 Hanjin Bremen |
|
Type |
Cellular containership |
|
IMO-number |
9001045 |
|
Call sign |
SVCA |
|
Flag |
Greece |
|
Previous flags |
06.11.1991 South Korea |
|
Port of registry |
Piraeus |
|
GT |
37.134 t Suez: 37.983,20 t |
|
DWT |
Summer: 44.008 t |
|
NT |
15.100 t Suez: 31.602,26 t |
|
Number of 20ft containers |
2.917 |
|
Container capacity 14t |
2.482 |
|
Reefer point |
153 reefer plugs |
|
Length |
242,81 m overall 242,80 m registered |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 11,717 m |
|
Freeboard |
7.290 mm |
|
Depth |
19,00 m |
|
Speed |
22,5 knots |
|
Built |
1991 |
|
Keel laid |
26.04.1991 |
|
Date of build |
01.12.1991 |
|
Builder |
Hanjin Heavy Industries & Construction Co. Ltd. |
|
Yard number |
006 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Propelling engine |
1x Sulzer 7RTA84 - 24.938 kW |
|
Number of screws |
1 |
|
Boilers |
1x Exhaust gas smoke tube Kangrim |
|
Generators |
3x MAN & Burmeister & Wain 8L23/30 main diesel generatorsets each 1.070 kW |
|
Emergency generator |
1x Cummins diesel generatorset |
|
Bow thruster |
1.100 kW |
|
Bunker capacity |
3.613 t |
|
Cargo gear |
Gearless |
|
Manager |
Danaos Shipping Co. Ltd. |
|
Operator |
CMA CGM |
|
Owner |
Lacey Navigation Inc. |
