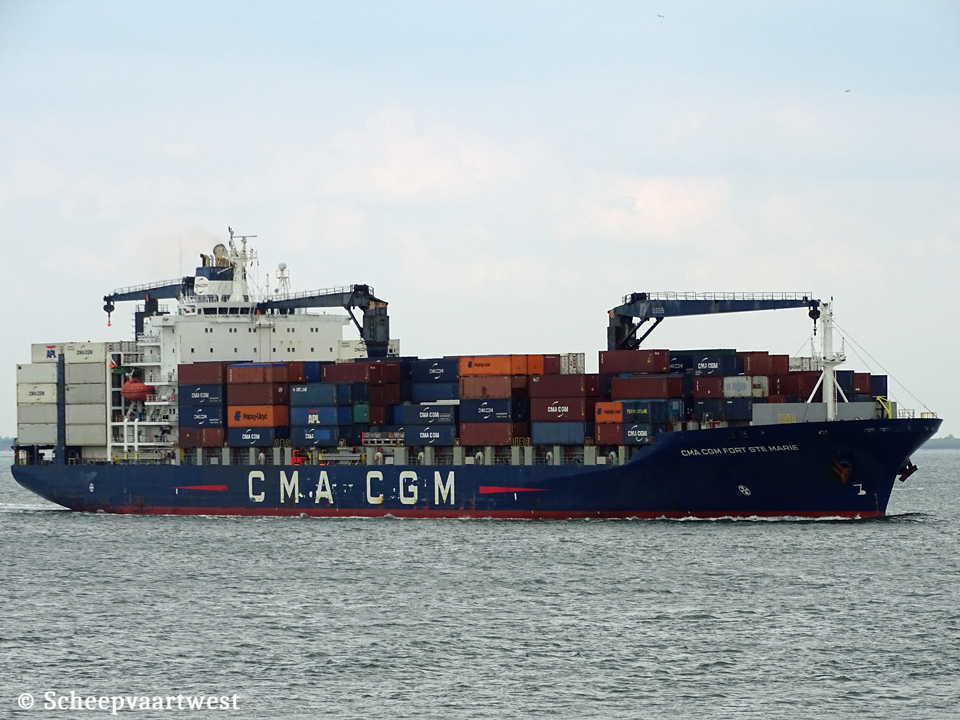

| Westerschelde 29 May 2019 |
 |
 |
|

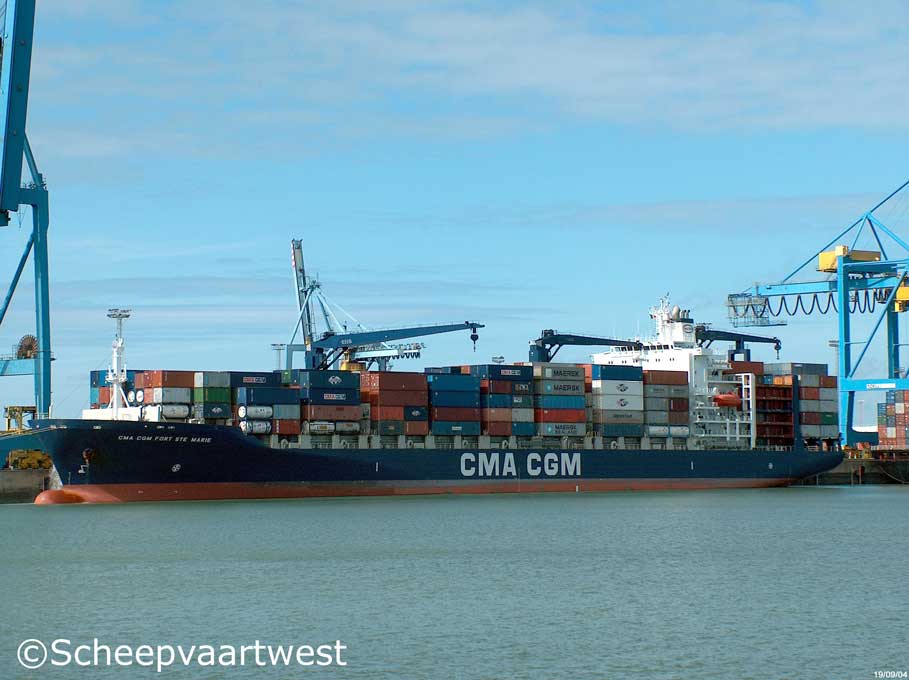

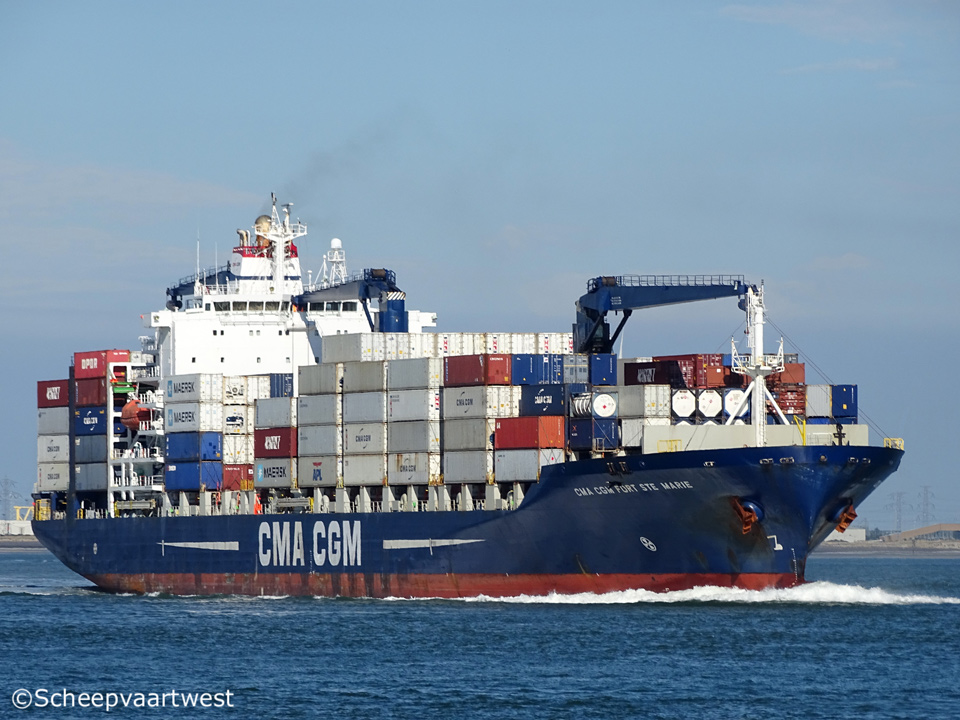

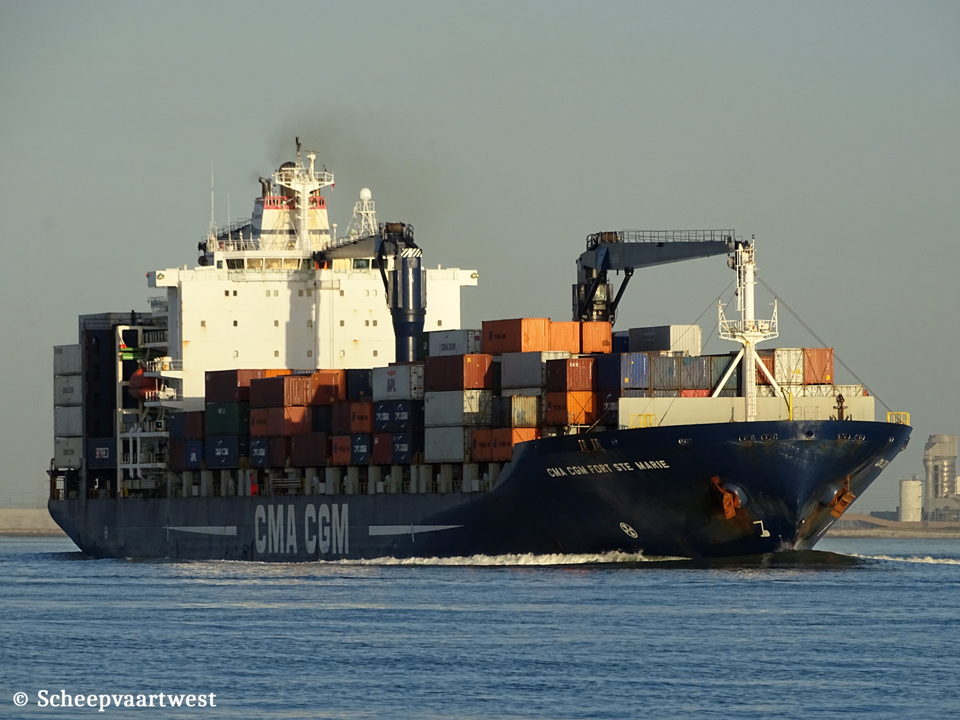

| Westerschelde 05/07/17 | Zeebrugge 19/09/06 |
|
Name |
CMA CGM FORT STE MARIE |
|
Type |
Cellular containership |
|
IMO-number |
9261906 |
|
Call sign |
9HA5091 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
2003 - 2007 French Southern & Antarctic Territories, Port Aux Français 2007 - 2019 France, Marseille - Call sign: FQXJ |
|
GT |
26.342 t |
|
DWT |
Summer: 30.804 t |
|
NT |
10.221 t |
|
Number of 20ft containers |
2.260 |
|
Container capacity at 14t |
1.700 |
|
Reefer Point |
550 |
|
Length |
197,20 m overall 184,97 m between perpendiculars |
|
Breadth |
30,20 m overall |
|
Draught |
Summer: 11,01 m |
|
Freeboard |
Summer: 5.625 mm |
|
Depth |
16,60 m |
|
Speed |
21,5 knots |
|
Deployment |
French West Indies |
|
Built |
2003 |
|
Date of completion |
26/06/2003 |
|
Builder |
CSBC - China Shipbuilding Keelung Corp. Keelong Shipyard Taiwan China |
|
Yard number |
798 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Propelling engine |
1x MAN-B&W 8S70MC-C - 2 stroke 8 cylinder 700 x 2.800 mm combustion engine 24.830 kW / 33.736 hp at 91,0 rpm Built: 2002 Builder: Hanjung Samsung Diesel, Pusan - South Korea |
|
Number of screws |
1x Fixed pitch propeller - aft at 91 rpm |
|
Boilers |
1x CHO Osaka 47,00 m² - 7,0 bar 1x CHR Osaka 562,00 m² - 12,9 bar |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
4x Main diesel generatorsets each 2.250 kVA - 1.800 kW - 2.568 hp |
|
Emergency generators |
1x Diesel generatorset 150 kVA - 120 kW - 190 hp |
|
Bow thruster |
1x 1.100 kW, forward 1x 1.100 kW, aft |
|
Cargo holds |
5 |
|
Cargo hatchways |
9 1x 12,60 x 15,70 m 1x 12,60 x 20,90 m 7x 12,60 x 26,10 m |
|
Tank capacities |
Fuel: 2.416,57 m³ |
|
Cargo gear |
3x Cranes - SWL 45,0 t each |
|
Commerical manager |
CMA CGM SA The French Line 4, quai d'Arenc 13002 Marseille France |
|
ISM Manager |
NSB Niederelbe Schiffahrtsgesellschaft Harburger Strasse 47-51 21614 Buxtehude Germany |
|
Operator |
CMA CGM |
|
Registered owner |
Global Rise International Holding Limited Care of CMA CGM SA (The French Line) 4, quai d'Arenc 13002 Marseille France |
|
Latest data adjustment |
10 August 2021 |
