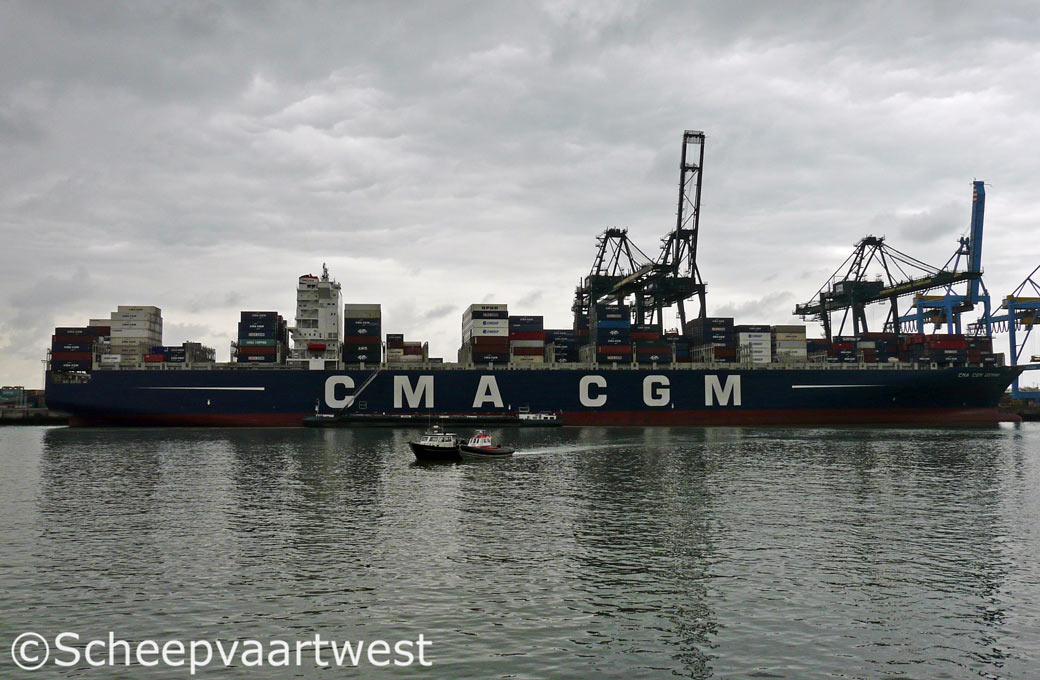

| Zeebrugge 31 August 2011 |
 |
 |
|

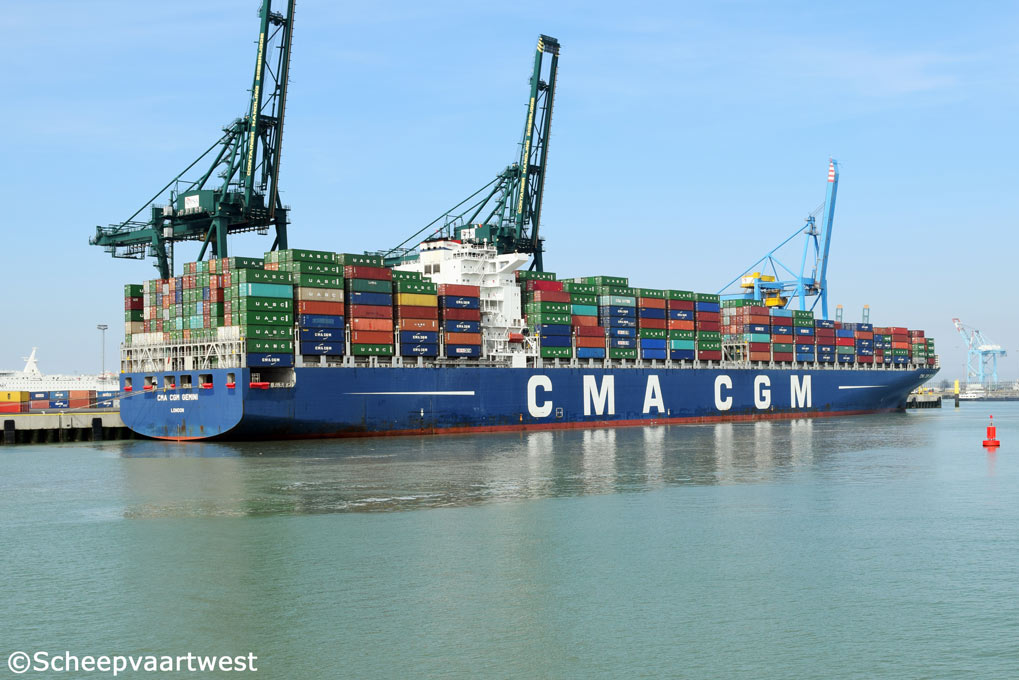

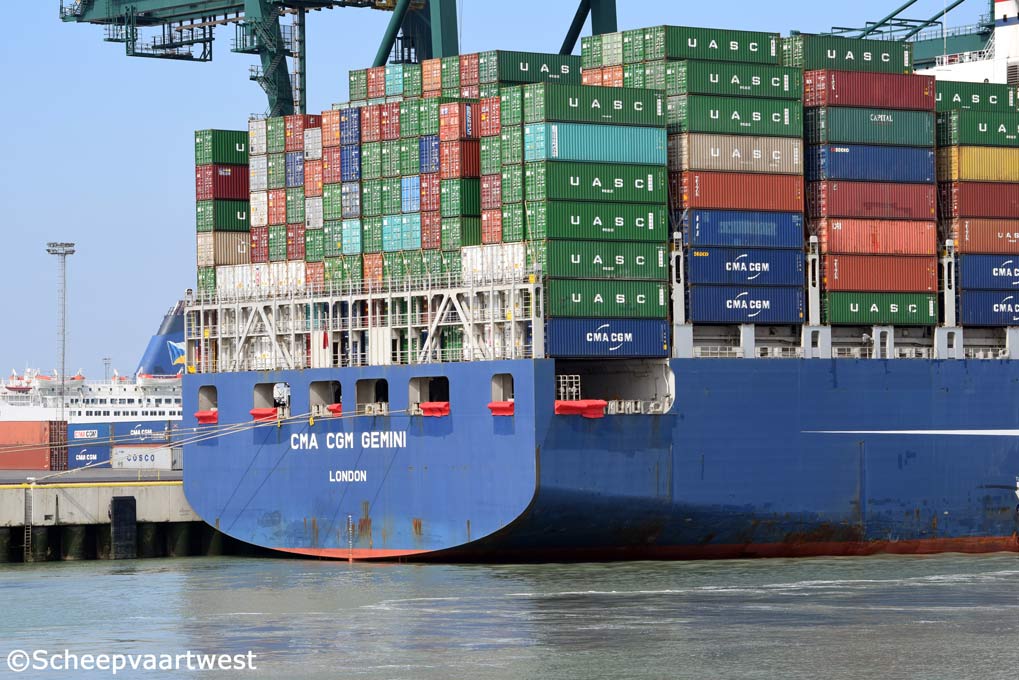

| Zeebrugge 07/04/15 | Zeebrugge 07/04/15 |
|
Name |
CMA CGM GEMINI |
|
Type |
Cellular containership |
|
IMO-number |
9410791 |
|
Call sign |
2DDO9 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
131.332 t |
|
DWT |
Summer: 128.760 t |
|
NT |
59.901 t |
|
Number of 20ft containers |
11.388 |
|
Container capacity 14t |
8.130 |
|
Reefer point |
800 on deck |
|
Length |
363,00 m overall 348,00 m between perpendiculars |
|
Breadth |
45,60 m |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
7.451 mm |
|
Depth |
29,74 m |
|
Speed |
24,7 knots |
|
Built |
2011 |
|
Delivery date |
11.05.2011 |
|
Builder |
HHI - Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1998 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
13 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 12K98 ME-C Mk 7 - 2 stroke 12 cylinder 980 x 2400 mm diesel engine - power output 72.240 kW / 98.152 hp at 140,0 rpm |
|
Propelling system |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO Aalborg 40,14 m² - 9,0 bar |
|
Diesel generators |
3x Main diesel generatorsets each 2.926 kVA - 2.341 kW - 3.139 hp |
|
Bow thruster |
3.000 kW |
|
Number of holds |
10 |
|
Total capacity of holds |
288.653,70 m³ |
|
Fuel capacity |
15.562 m³ |
|
Cargo gear |
None |
|
Crew |
27 |
|
Managing Owners |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Owner |
Alize 1998 P/C CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Latest data adjustment |
20 April 2015 |
