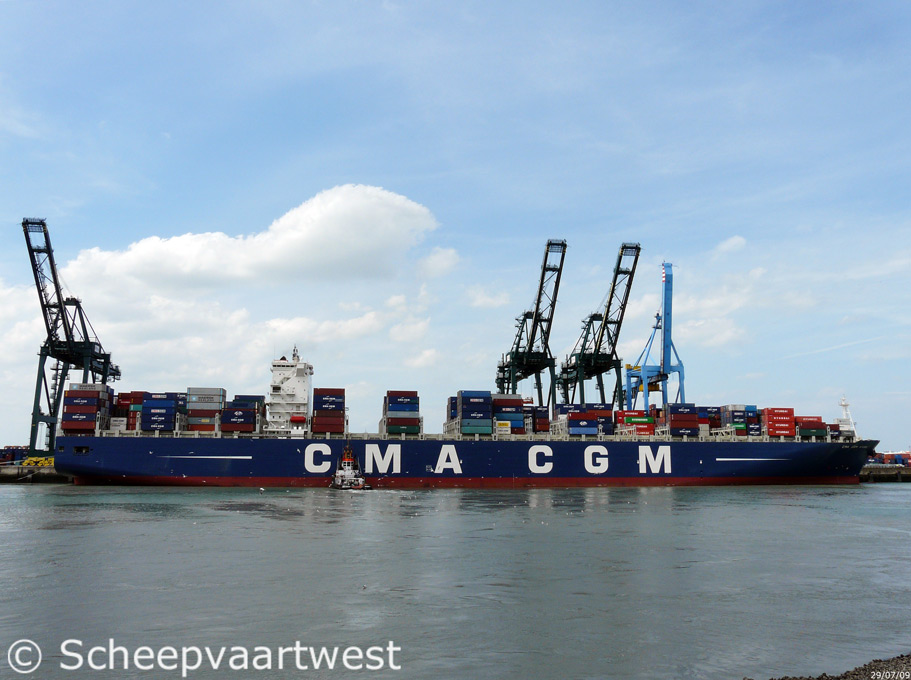

| Zeebrugge 29 July 2009 |
|
Name |
CMA CGM HYDRA |
|
Type |
Cellular containership |
|
IMO-number |
9356309 |
|
Call sign |
2BTO8 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
128.600 t |
|
DWT |
130.700 t |
|
NT |
72.696 t |
|
Number of 20ft containers |
10.960 |
|
Container capacity 14t |
6.950 |
|
Reefer point |
700 |
|
Length |
347,48 m overall 331,00 m between perpendiculars |
|
Breadth |
45,20 m |
|
Draught |
Summer: 15,05 m |
|
Freeboard |
12.700 mm Summer: 7.347 mm |
|
Depth |
29,70 m |
|
Speed |
24,3 knots |
|
Built |
2009 |
|
Launch date |
13.12.2008 |
|
Date of completion |
08.04.2009 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd. |
|
Yard number |
4127 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
10 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai-MAN-B&W 12K98ME-C - 2 stroke 12 cylinder 980 x 2.400 cm internal combustion engine - 72.264 kW / 98.152 hp at 104,0 rpm Built: 2008 Builder: Hyundai Heavy Industry Co., Ltd. - Engine and Mach, Ulsan - South Korea |
|
Propeller |
1x Screw Propeller Solid at 104 rpm |
|
Boilers |
1x CHO Aalborg Industries L 42,00 m² - 10,0 bar |
|
Generators |
4x Daihatsu 8DK32C main diesel generatorsets each 4.000 kVA - 3.200 kW - 4.337 hp |
|
Emergency generators |
1x Diesel generatorset 688 kVA - 550 kW - 810 hp |
|
Number of holds |
10 |
|
Total capacity of holds |
278.119,10 m³ |
|
Fuel capacity |
16.897 m³ |
|
Cargo gear |
Gearless |
|
Crew |
22 |
|
Manager |
CMA-CGM |
|
Operator |
CMA-CGM |
|
Owner |
SNC CYPRES BAIL 1 |
