| Zeebrugge 23 June 2009 |
 |
 |
 |
||

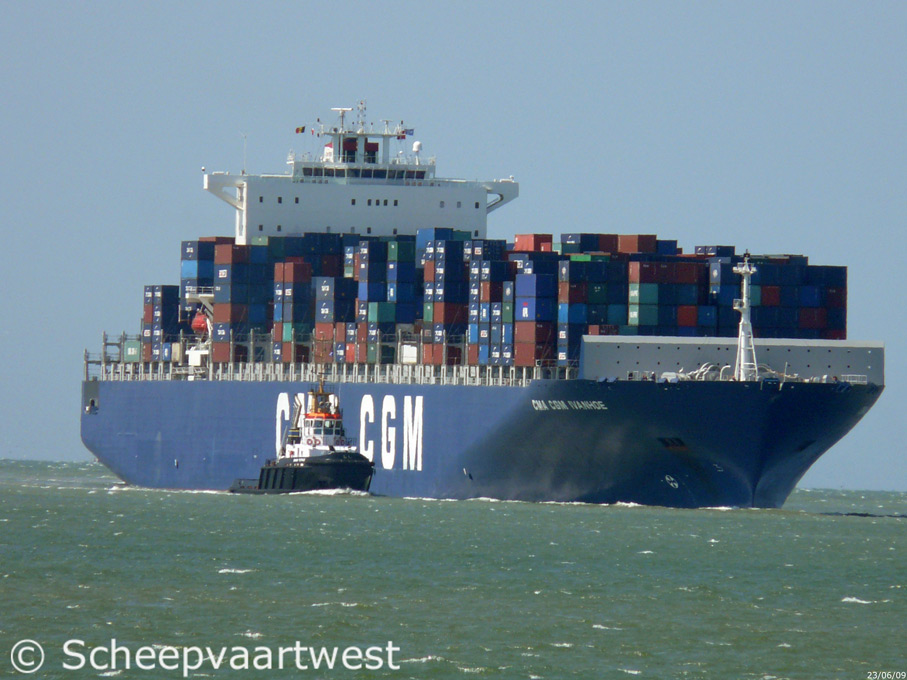

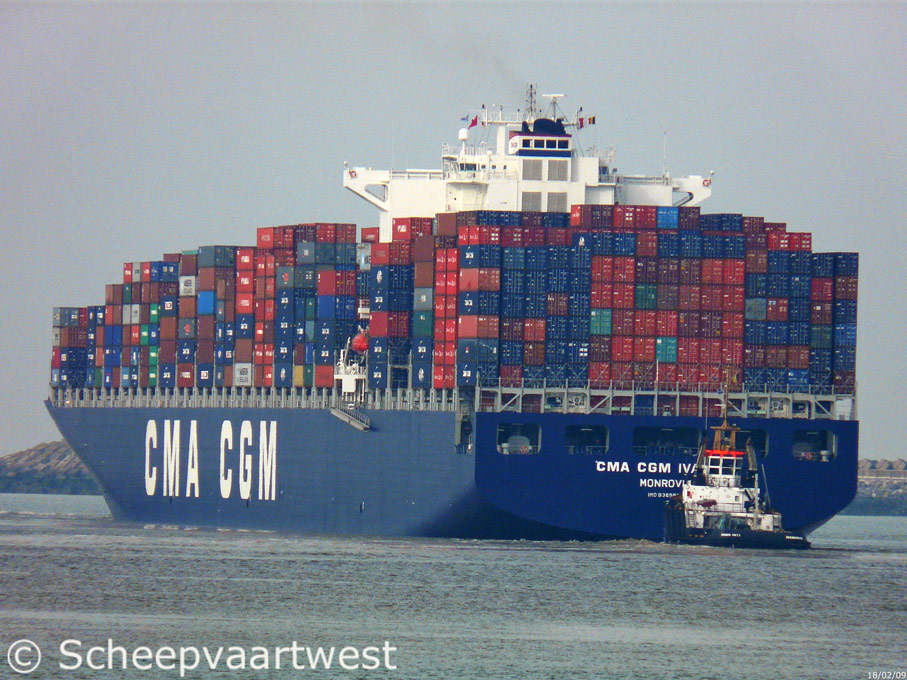

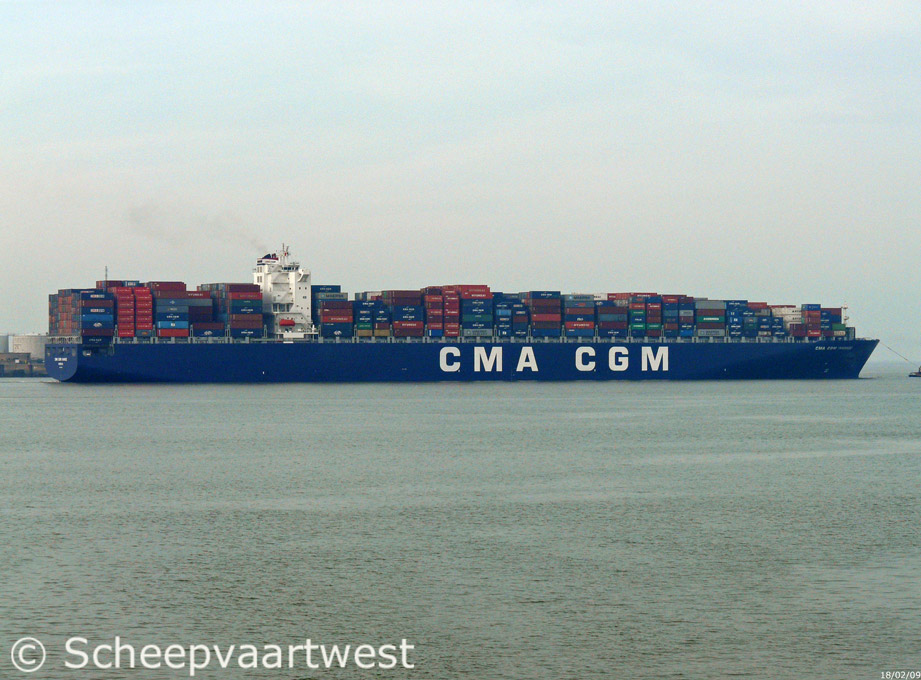

| Zeebrugge 23/06/09 | Zeebrugge 18/02/09 | Zeebrugge 18/02/09 |
|
Name |
CMA CGM IVANHOE |
|
Type |
Cellular containership |
|
IMO-number |
9365805 |
|
Call sign |
A8NO9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
111.249 t Suez: 112.902,2 t |
|
DWT |
120.943 t |
|
NT |
55.844 t Suez: 99.110,27 t |
|
Number of 20ft containers |
9.661 |
|
Container capacity at 14t |
7.180 |
|
Reefer point |
700 |
|
Length |
350,09 m overall 336,78 m registered |
|
Breadth |
42,80 m registered |
|
Draught |
Summer: 15,00 m |
|
Forecastle |
167,895 m |
|
Bridge |
158,295 m |
|
Poop |
9,60 m |
|
Freeboard |
5.159 mm |
|
Depth |
27,30 m moulded |
|
Speed |
26,80 knots |
|
Built |
2008 |
|
Keel laid |
08.07.2008 |
|
Launch date |
26.09.2008 |
|
Date of completion |
20.12.2008 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. |
|
Yard number |
1893 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 12 RTA 96C-B - 2 stroke single acting 12 cylinder 960 x 2.500 mm diesel engine - 68.640 kW at 102,0 rpm Year of manufacture: 2008 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 46,23 m² Manufacture: Aalborg Industries A/S 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 407,0 m² Manufacturer: Aalborg Industries Ltd. Year of manufacture: 2008 |
|
Electric Installations |
1x Plant 6.600 V - 16.300,10 kVA 1x Plant 450 V - 375 kVA 1x Plant 12 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
2x Main diesel generatorsets each 3.760 kVA 3x Main diesel generatorsets each 2.926,7 kVA |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Batteries |
2x Batteries for automation each 200 Ah 12x Batteries for UPS radio each 200 Ah |
|
Compressed air receiver |
2x Receivers each16.800 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 350 litres - 7,7 bar 1x Receiver 2.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster - 3.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 21.500 kg Chain length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew |
26 |
|
Crew size |
28 |
|
Manager |
Reederei Claus-Peter Offen GmbH & Co. KG |
|
Operator |
CMA CGM |
|
Owner |
Kommanditgesellschaft MS "SANTA LUCIANA" Offen Reederei GmbH & Co. |
