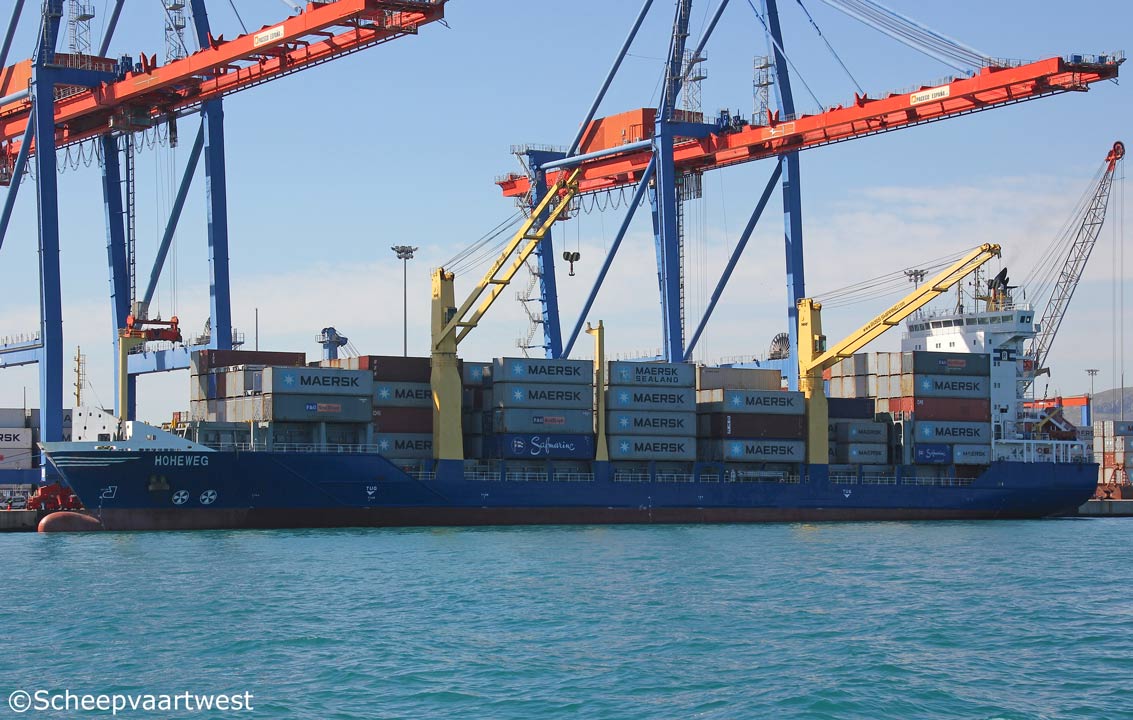

Hoheweg 02

Malaga - Spain 19 March 2017

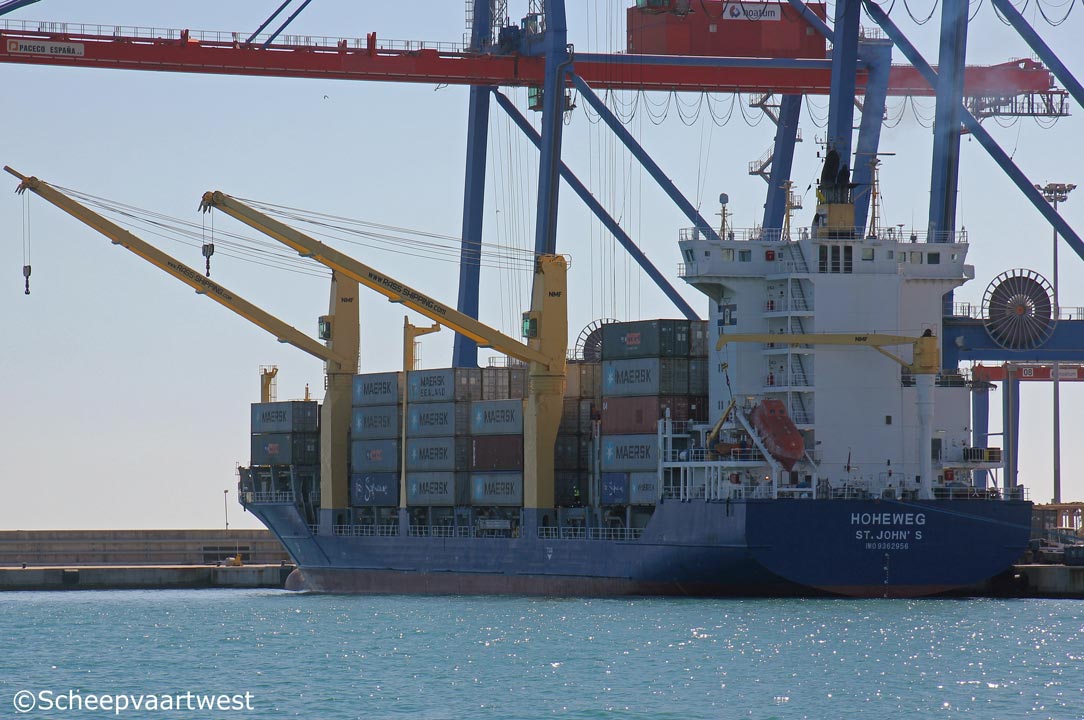

Hoheweg 01
Malaga, Spain 19/03/17



Name

HOHEWEG

Previous names

2007 - 09.2008 Hoheweg

09.2008 - 02.2017 CMA CGM Agadir

Type

Cellular containership

IMO-number

9362956

Call sign

V2CG3

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

9.996 t
Suez: 10.366 t

DWT

Summer: 11.797,8 t

NT

4.900 t

Suez: 8.386 t

Number of 20ft containers

On deck: 658

In hold: 312

Total: 970

Container capacity 14t

604

Reefer capacity

252

Length

139,11 m overall

129,00 m between perpendiculars

130,49 m registered

Breadth

22,85 m extreme

22,60 m moulded

Draught

Max.: 8,80 m

Freeboard

3.014 mm

Depth

11,80 m

Speed

18,8 knots

Built

2007

Keel laid

20.12.2005

Launch date

10.11.2006

Date of completion

02.04.2007

Builder

Yangfan Group Co., Ltd.
169 Lujiazhi Road, Shenjiamen Putuo District
316100 Zhoushan , Zhejiang Province
People's Republic of China

Yard number

2035

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAN B&W 8L 48/60 - 4 stroke 8 cylinder 480 x 600 mm diesel engine - 9.600 kW at 500 rpm

Year of manufacture: 2006

Manufacturer: MAN Diesel & Turbo SE
Stadtbachstr. 1
86153 Augsburg

Federal Republic of Germany

Propellers

1x Screw propeller controllable pitch - aft at 130 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 43,0 m²

1x Exhaust gas heated - 10,0 bar

Heating surface: 158,0 m²

Year of manufacture: 2006

Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd.
Machinery Industry Park Qingdao Development Area
266500 Qingdao
People's Republic of China

Electric installations

1x Plant 450/230 V - 1.138 kVA

1x Plant 450/230 V - 1.138 kVA

1x Plant 450 V - 2.500 kVA

1x Plant 450 V - 721 kVA

1x Plant 24 V - 30 Ah

1x Plant 24 V - 60 Ah

1x Plant 24 V - 120 Ah

1x Plant 24 V - 135 Ah

1x Plant 24 V - 300 Ah

Shaft generator

1x 2.500 kVA - 2.000 kW

Generators

2x MAN-B&W 6L23/30H main diesel generatorsets each 1.138 kVA - 910 kW - 1.325 hp

Emergency generator

1x Diesel generatorset 721 kVA - 577 kW - 842 hp

Batteries

1x Battery for UPS radio 135 Ah

1x Battery for start emergency engine 120 Ah

1x Battery for UPS navigation 30 Ah

Compressed air receivers

2x Receivers each1.600 litres - 33,0 bar

1x Receiver 200 litres - 33,0 bar

1x Receiver 60 litres - 10,0 bar

Bow thruster

1x Transverse thruster - 500 kW forward

1x Transverse thruster - 300 kW forward

Number of holds

7

Tank capacities

Fuel oil: 1.226 m³

Anchor equipment

3x Anchors weight each 5.610 kg

Length: 577,50 m

Diameter: 58 mm

Cargo gear

2x Cranes NMF - SWL 45,0 t each

Crew

15

Crew size

19

Manager

Rass-Schiffahrt-Gesellschaft mbH
Ringstrasse 4
D 27628 Hagen im Bremischen
Germany

Owner

Hoheweg Schiffahrts GmbH & Co KG
Germany

Registered owner

Hoheweg GmbH & Co KG
Germany

Latest data adjustment

21 April 2017
