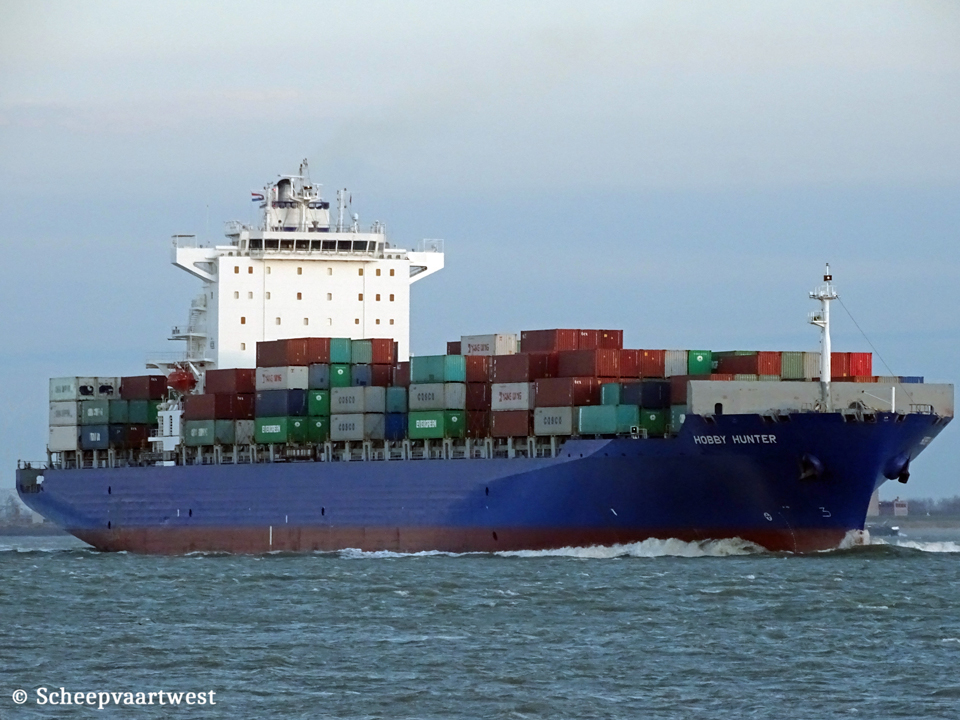

Hobby Hunter IMO 9440825 07

Westerschelde 07 January 2018

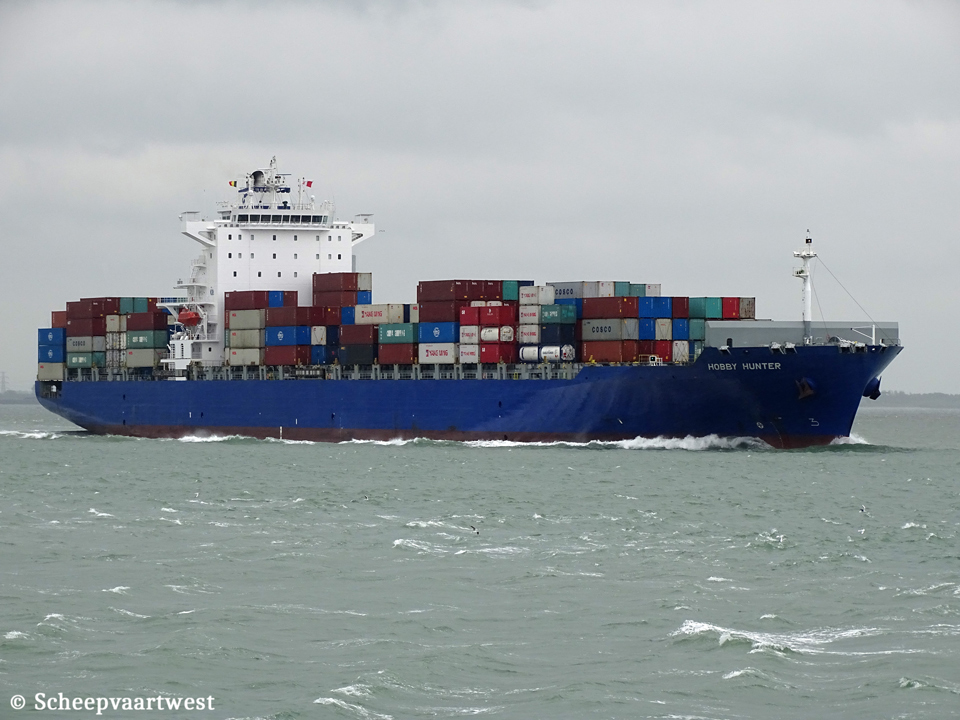

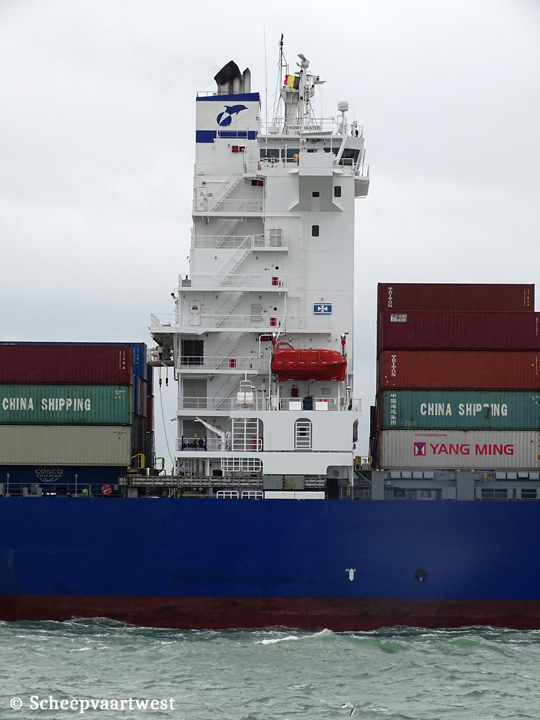

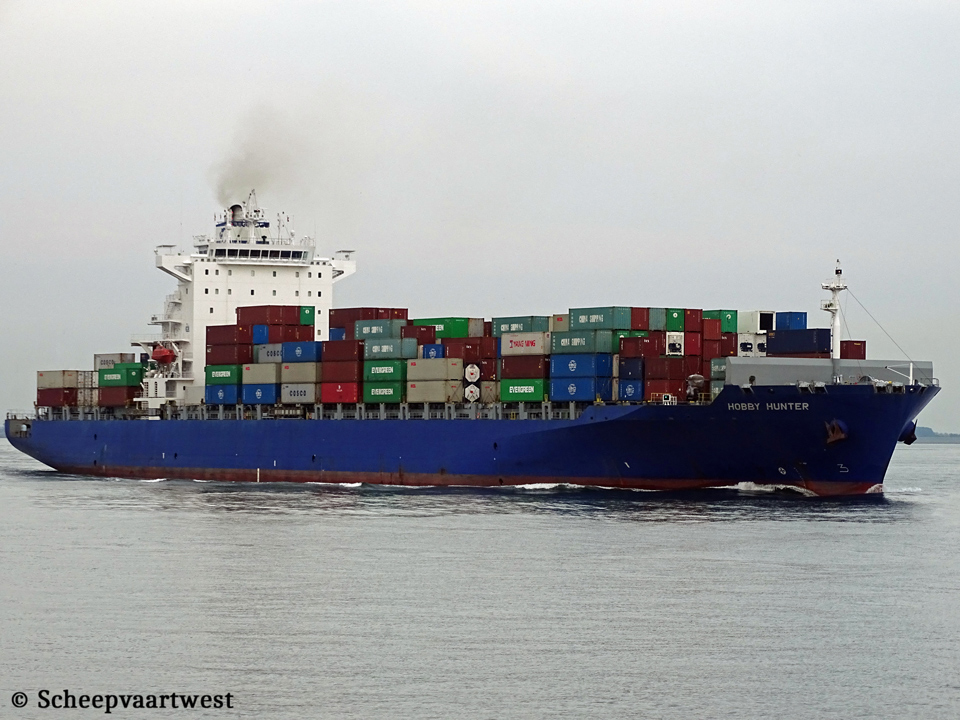

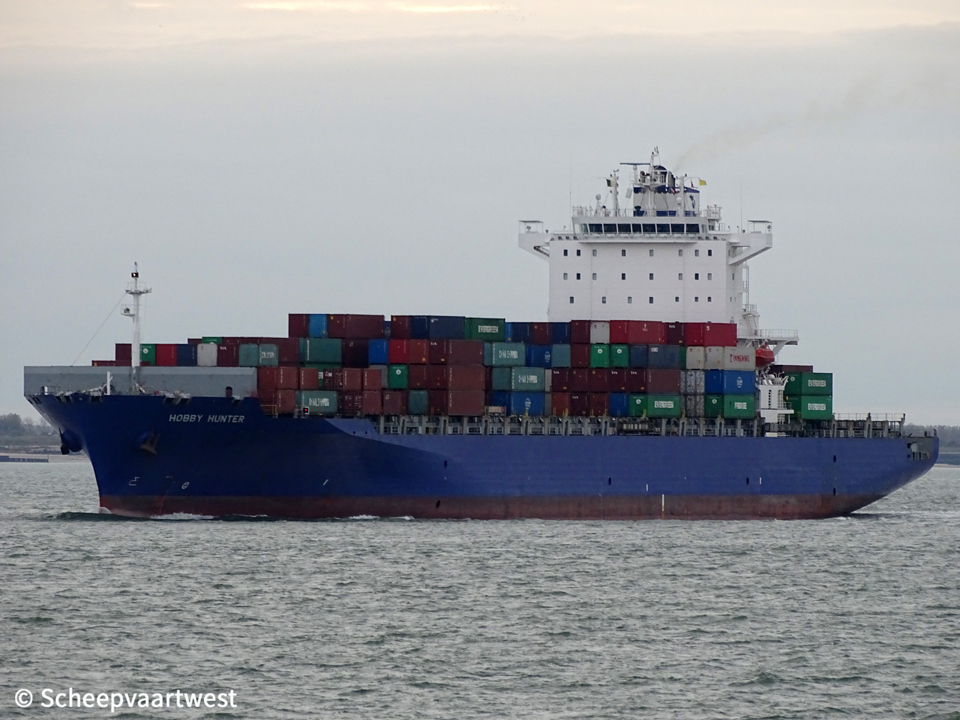

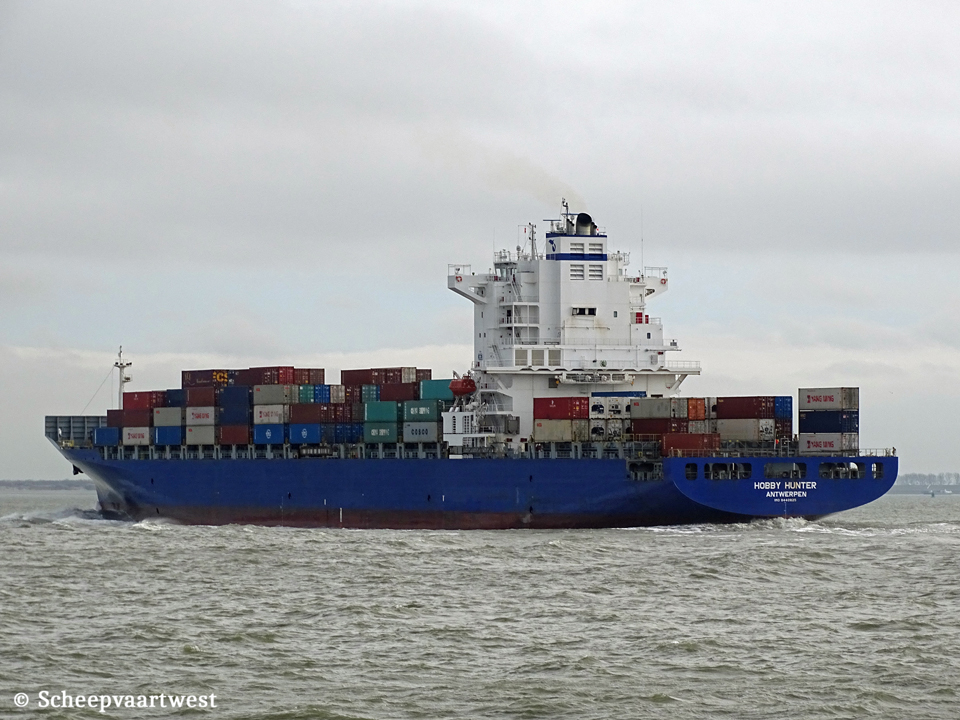

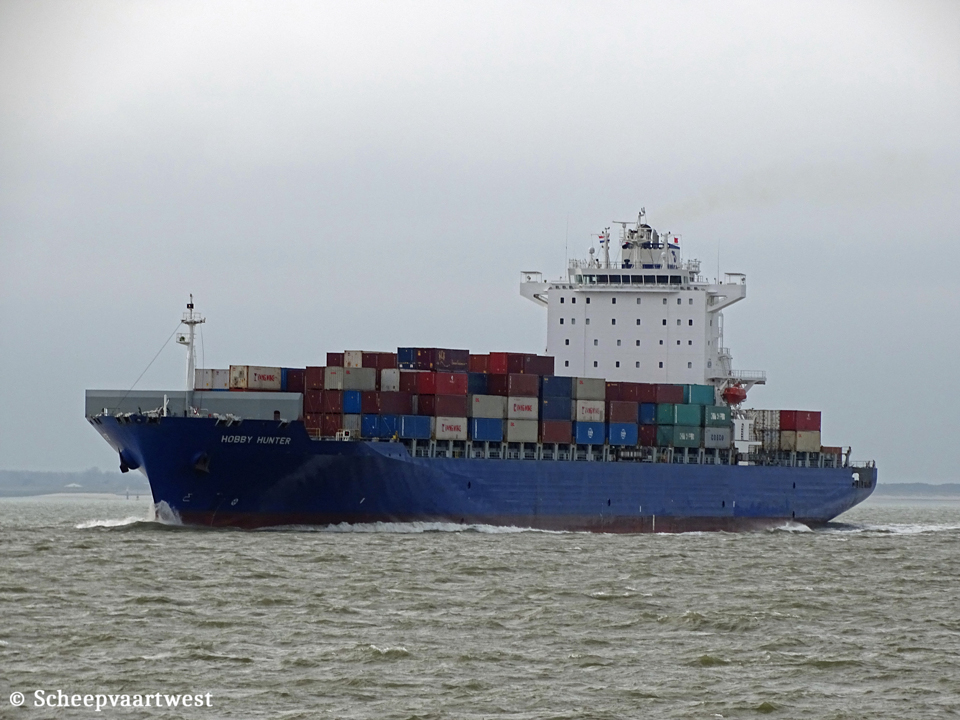

Hobby Hunter IMO 9440825 03   Hobby Hunter IMO 9440825 02   Hobby Hunter 01   Hobby Hunter IMO 9440825 04   Hobby Hunter IMO 9440825 05   Hobby Hunter IMO 9440825 06
Westerschelde 11/10/19   Westerschelde 24/06/19 Westerschelde 01/11/18 WS 11/10/19   Westerschelde 30/01/20   Westerschelde 30/01/20


Name

HOBBY HUNTER

Previous names

2009 build as: Ramadi

06/2009 - 01/2013 UASC Ramadi

01/2013 - 2015 CPO Charleston

2015 - 2018 Cap Hatteras

Type

Cellular containership

IMO-number

9440825

Call sign

ONKF

Flag

Belgium

Port of registry

Antwerpen

Previous flags

2009 - 2012 United Kingdom - Call sign: 2CFJ4

2012 - 2020 Liberia, Monrovia - Call sign: A8UL3

GT

41.358 t

DWT

Summer: 51.671 t

NT

24.234 t

Light displacement

16.603 t

Number of 20ft containers

4.255

Container capacity 14t

3.000

Reefer capacity

560

Length

262,09 m overall

248,01 m between perpendiculars

Breadth

32,25 m extreme

Draught

Max: 12,50 m

Depth

19,30 m

Speed

Max: 24,1 knots

Built

2009

Keel laid

13/04/2009

Launch date

19/06/2009

Date of completion

11/08/2009

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

2063

Hull material

Steel

Hull type

Double Bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x HHI/Wärtsilä 8RTA82C - 2 stroke 8 cylinder 820 x 2.646 mm combustion engine 36.160 kW at 102,0 rpm

Build: 2009

Builder: Hyundai Heavy Industries Co., Ltd.

Propellers

1x Fixed pitch propeller - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface 26,87 m²

Build: 2008

Builder: Alfa Laval Aalborg A/S

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface 172,0 m²

Build: 2008

Builder: Alfa Laval Aalborg A/S

Electric installations

1x Plant 450 V - 2.112,5 kVA

1x Plant 450 V - 2.112,5 kVA

1x Plant 450 V - 2.812,8 kVA

1x Plant 450 V - 2.812,8 kVA

1x Plant 450 V - 188 kVA

1x Plant 12 V - 300 Ah

1x Plant 24 V - 100 Ah

1x Plant 24 V - 130 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

2x Hyundai/ Himsen 6H25/33 main diesel generatorsets each 1.690 kW / 2.112,5 kVA

2x Hyundai/ Himsen 8H25/33 main diesel generatorsets each 2.250 kW / 2.812,8 kVA

Emergency generator

1x Cummins C1-D/L 505/8.3 diesel generatorset 188 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for start emergency engine 300 Ah

1x Battery for UPS radio 200 Ah

1x Battery for automation 130 Ah

1x Battery for automation 100 Ah

Compressed air receivers

2x Receivers each 10.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 200 litres - 8,7 bar

1x Receiver 2.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster 1.500 kW, forward

Tank capacities

Ballast: 13.212,7 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Length: 687,50 m

Diameter: 87 mm

Cargo gear

Gearless

Crew size

28

Commercial manager

Bocimar International NV

De Gerlachekaai 20

2000 Antwerpen

Belgium

ISM Manager

CPO Containerschiffreederei (GmbH & Co.) KG

Bleichenbruecke 10

20354 Hamburg

Germany

Registered owner

CMB NV

De Gerlachekaai 20

2000 Antwerpen

Belgium

Renamed

2021 Dubai Express

Marshall islands, Majuro - Call sign: V7A4657

Owner: UASC Vessel Holding Limited

Manager: United Arab Shipping Company Limited Dubai Branch

Latest data adjustment

29 July 2021
