| Zeebrugge 25 May 2011 |
|
Name |

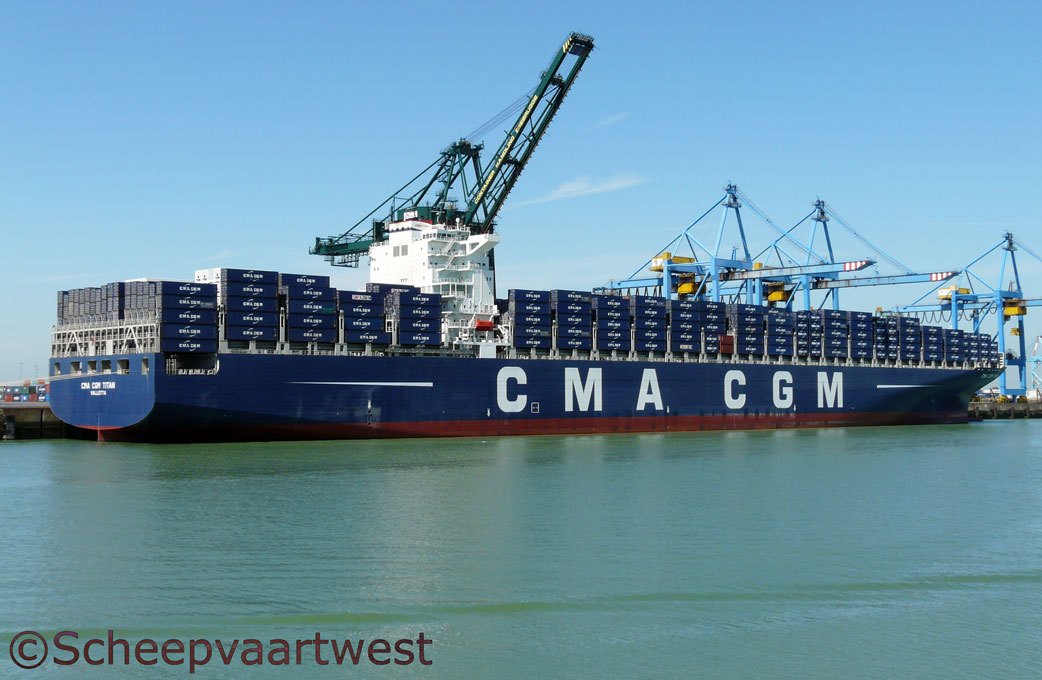

CMA CGM TITAN |
|
Type |
Cellular containership |
|
IMO-number |
9399222 |
|
Call sign |
9HA2146 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
131.332 t Suez: 135.479,26 t |
|
DWT |
128.550 t Summer: 131.228,3 t |
|
NT |
59.901 t Suez: 122.614,25 t |
|
Number of 20ft containers |
11.388 |
|
Container capacity 14t |
8.106 |
|
Reefer capacity |
700 |
|
Length |
363,00 m overall 348,00 m between perpendiculars |
|
Breadth |
45,60 m |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
7.451 mm |
|
Depth |
29,74 m |
|
Speed |
Max.: 24,7 knots |
|
Built |
2009 |
|
Date of completion |
04.11.2009 |
|
Builder |
HHI - Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1956 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
13 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai B&W 12K98MC -CMk7 - 2 stroke 12 cylinder 980 x 2.400 mm diesel engine - 72.240 kW / 98.152 hp at 104,0 rpm Built: 20.05.2009 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div, Ulsan - South Korea |
|
Propelling system |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO AALBORG 40,14 m² - 9,0 bar |
|
Generators |
3x Main diesel generatorsets each 2.926 kVA - 2.341 kW - 3.139 hp |
|
Bow thruster |
3.000 kW |
|
Number of holds |
10 |
|
Total hold capacity |
288.653,70 m³ |
|
Fuel Capacity |
15.562 m³ |
|
Crew |
23 |
|
Cargo gear |
None |
|
Manager |
CMA CGM - Compagnie Maritime D' Affrètement - Compagnie Générale Maritime |
|
Operator |
CMA CGM - Compagnie Maritime D' Affrètement - Compagnie Générale Maritime |
|
Owner |
Alize 1957 |
