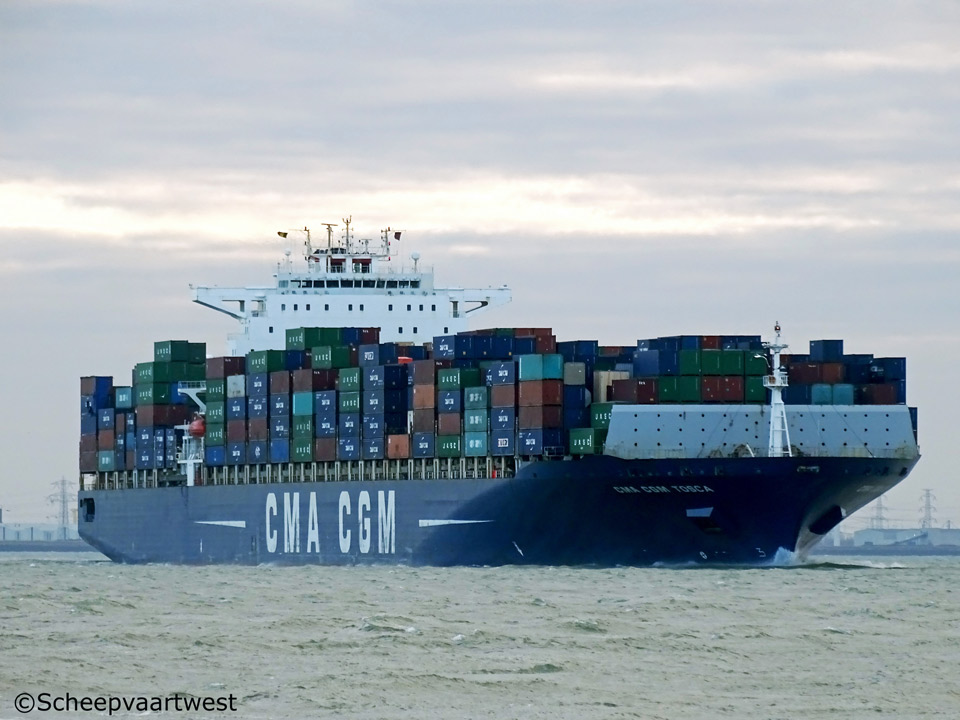

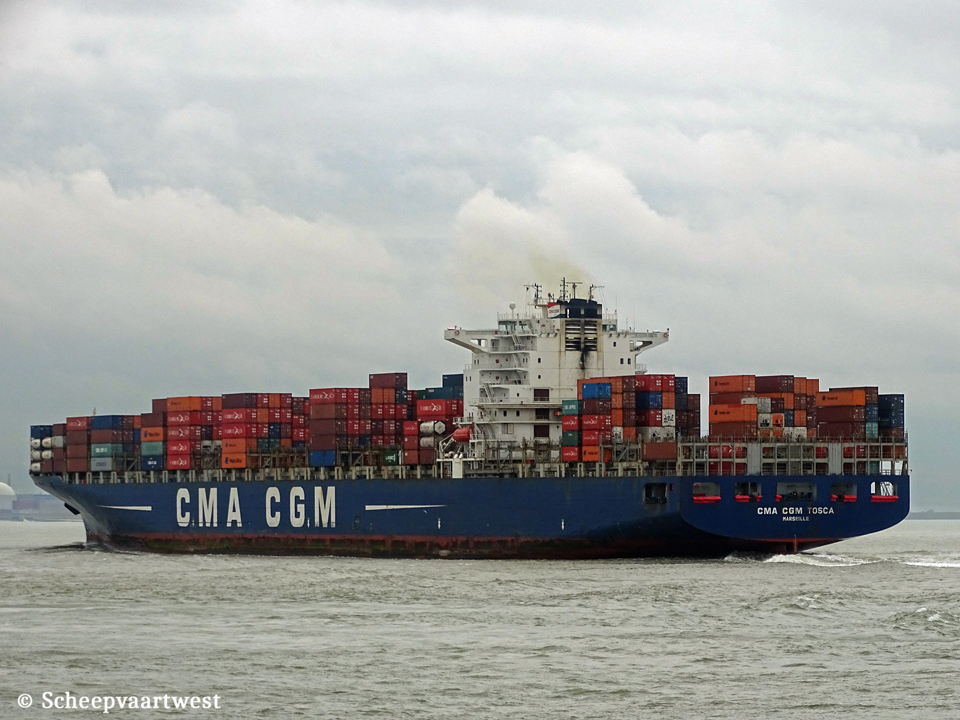

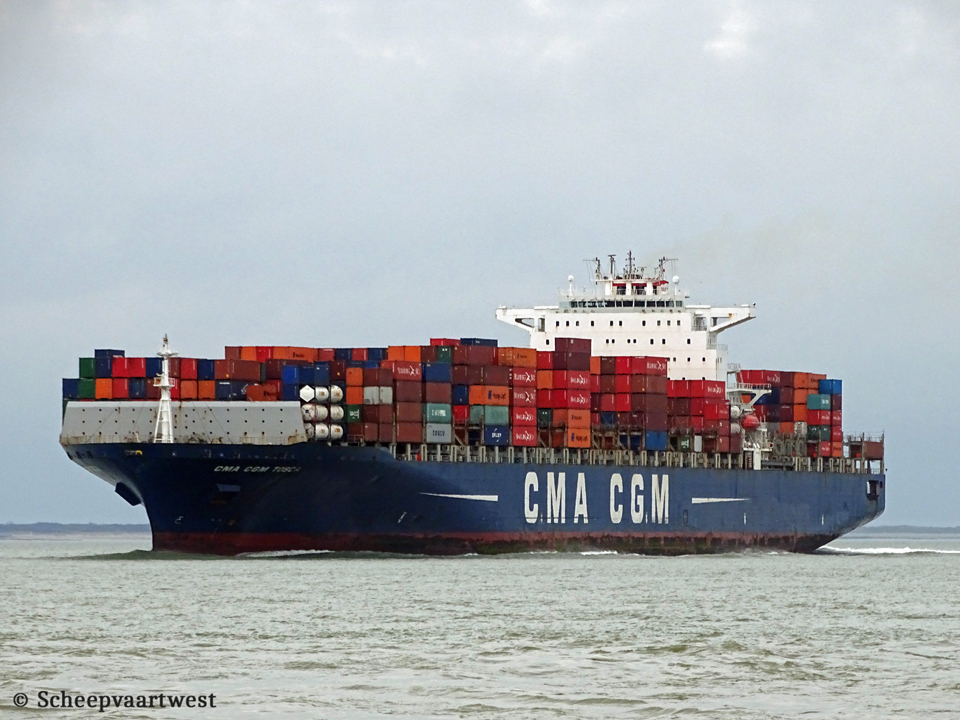

Westerschelde 06 December 2015 |
 |

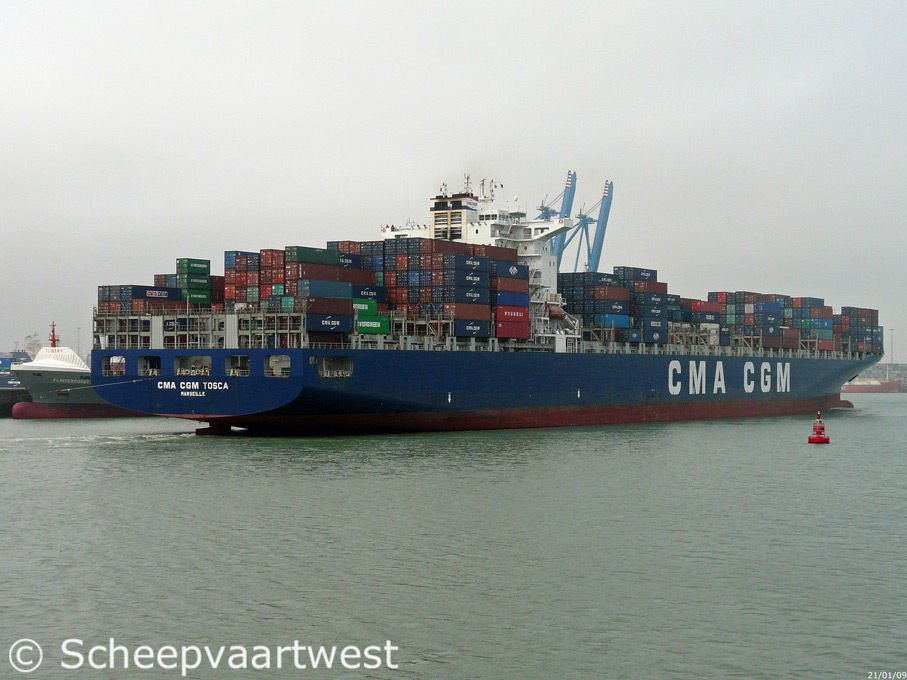

| Zeebrugge 21/01/09 |
|
Name |
CMA CGM TOSCA |
|
Type |
Cellular containership |
|
IMO-number |
9299783 |
|
Call sign |
FMEL |
|
Flag |
France |
|
Previous flags |
2006 France 2006 French Southern & Antarctic Territories |
|
Port of registry |
Marseille |
|
Previous port of registry |
Port Aux Français |
|
GT |
91.410 t |
|
DWT |
Summer: 101.818 t |
|
NT |
48.921 t |
|
Number of 20ft containers |
8.488 |
|
Container capacity 14t |
6.143 |
|
Reefer points |
700 |
|
Length |
334,07 m overall |
|
Breadth |
42,80 m overall |
|
Draught |
Summer: 14,52 m |
|
Freeboard |
Summer: 5.749 mm |
|
Depth |
24,60 m |
|
Speed |
Max.: 25,4 knots Service: 23,0 knots |
|
Built |
2005 |
|
Date of completion |
30.12.2005 |
|
Builder |
Hyundai Samho Heavy Industries Co. Ltd. |
|
Yard number |
S253 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
12 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAN B&W 12K98MC Mk VI - 2 stroke 12 cylinder 980 x 2.660 diesel engine - 68.640 kW / 93.261 hp at 94,0 rpm Built: 2005 Builder: Hyundai Heavy Industries Co. Ltd. Engine & Mach. Div., Ulsan - South Korea |
|
Number of screws |
1x Screw propeller solid at 94 rpm |
|
Boilers |
1x CHO Aalborg 40,14 m² - 10,0 bar |
|
Electrical installation |
Power voltage: 6.600 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x MAN-B&W 7L27/38 main diesel generatorsets each 2.933 kVA - 2.346 kW - 3.139 hp |
|
Emergency generators |
1x Diesel generatorset 625 kVA - 500 kW - 815 hp |
|
Bow thruster |
2.500 kW |
|
Cargo holds |
9 |
|
Tank capacities |
Fuel oil: 14.138 m³ |
|
Cargo gear |
Gearless |
|
Crew |
28 |
|
Manager |
CMA CGM Marseille |
|
Operator |
CMA CGM |
|
Registered owner |
ABCL Tosca Limited |
|
Latest data adjustment |
27 January 2017 |
