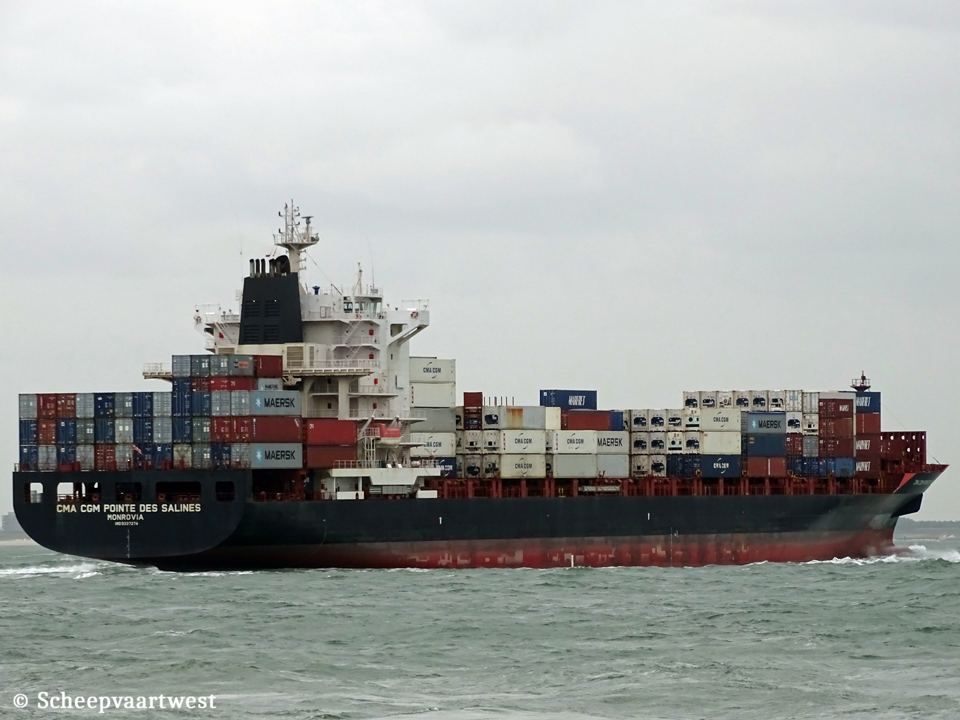

Westerschelde 12 July 2017 |
 |
 |
 |
||

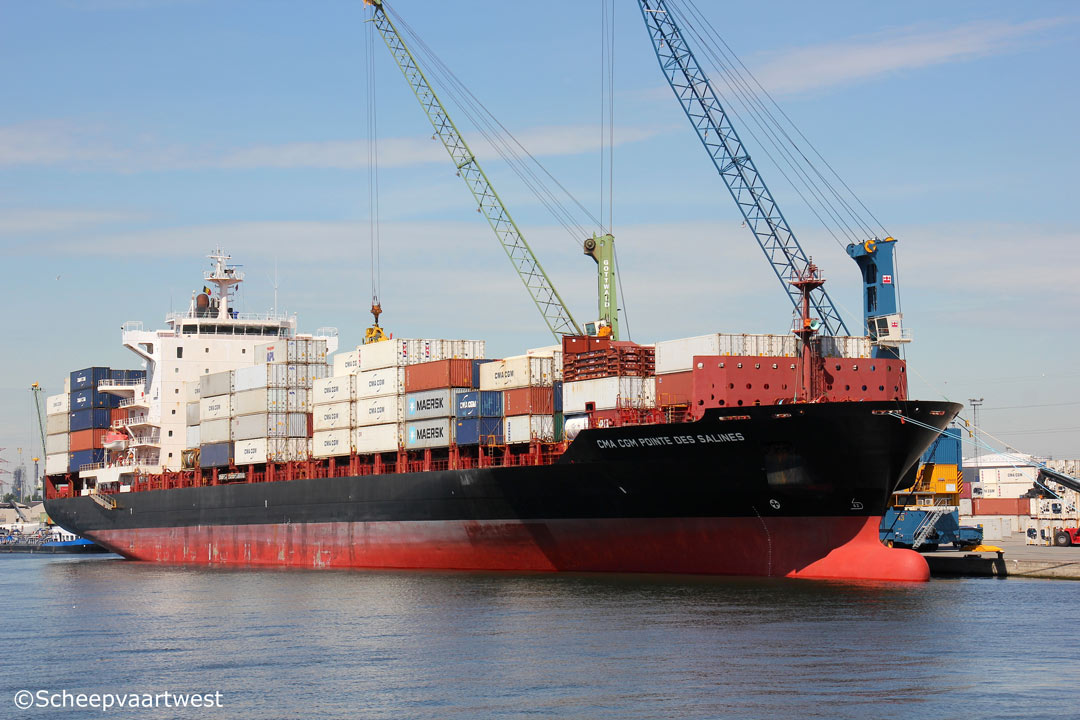

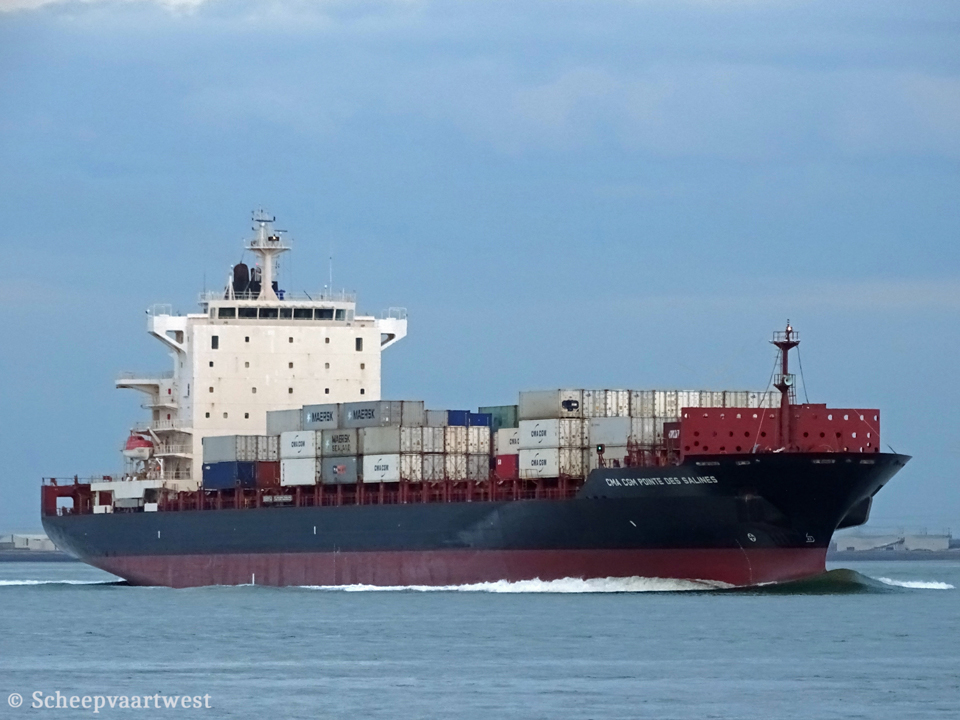

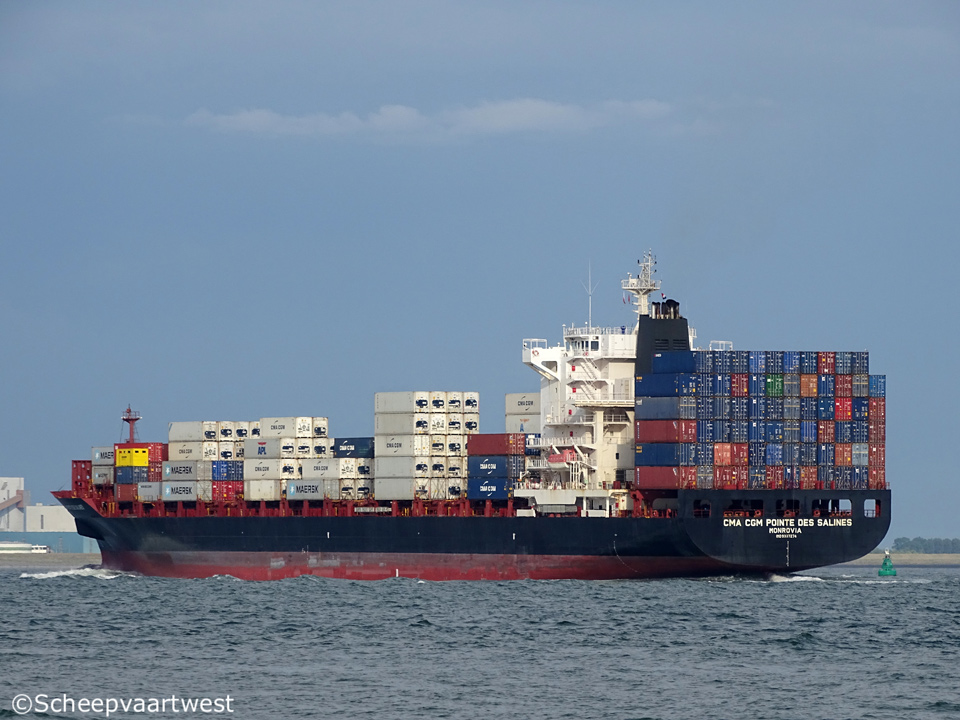

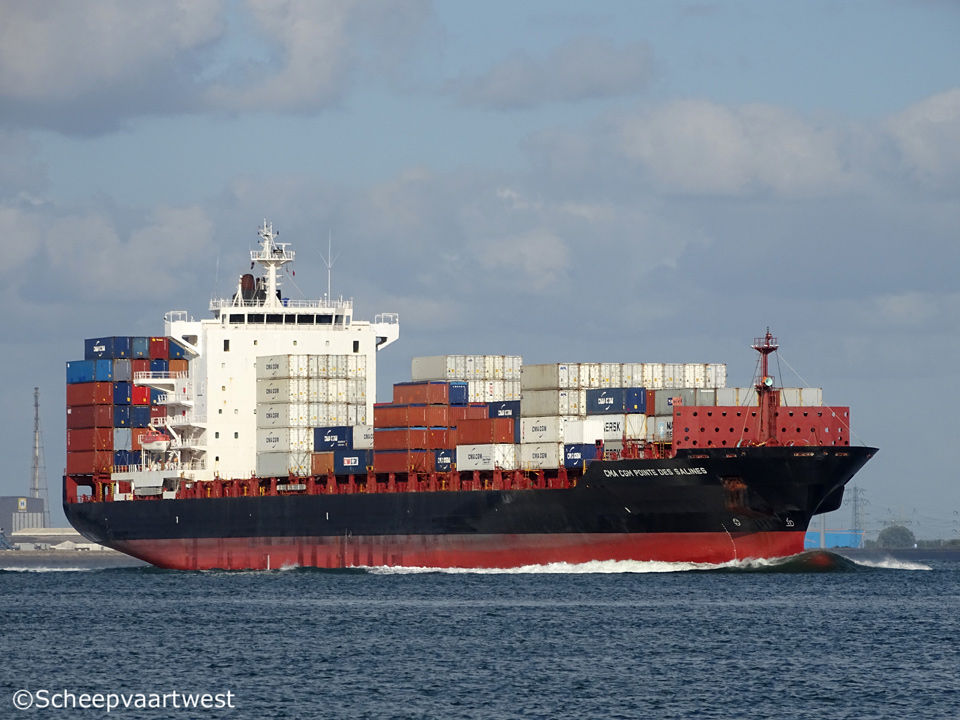

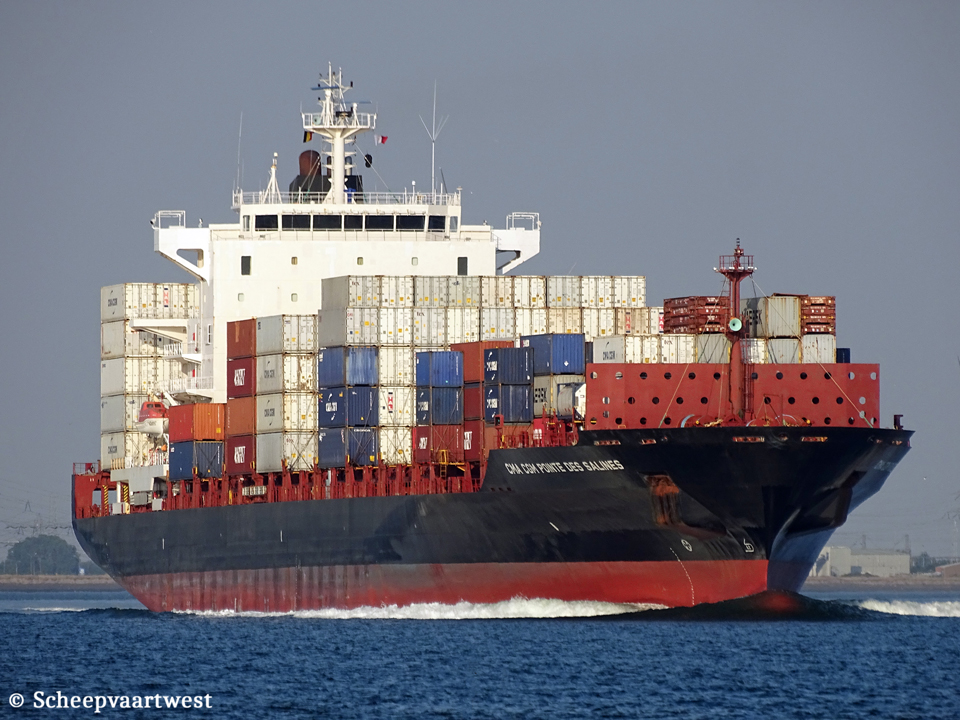

| Westerschelde 12/07/17 | Antwerpen 17/05/17 | Westerschelde 22/03/17 | ||
|
Name |
CMA CGM POINTE DES SALINES |
|
Previous names |
Launch as: Sofia Schulte 05/2007 - 04/2012 Cap Cleveland 04/2012 - 07/2013 Sofia Schulte 07/2013 - 03/2017 Mozart |
|
Type |
Cellular containership - Post-Panamax |
|
IMO-number |
9337274 |
|
Call sign |
A8MA9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
28.616 t registered Suez: 29.363 t |
|
DWT |
Summer: 39.339,3 t |
|
NT |
14.769 t registered Suez: 27.947 t |
|
Number of 20ft containers |
On deck: 1.798 (7 tiers) In hold: 1.026 Total: 2.824 |
|
Container capacity 14t |
1.958 |
|
Reefer capacity |
On deck: 312 In hold: 274 Total: 586 |
|
Length |
222,15 m overall 210,02 m between perpendiculars |
|
Breadth |
30,07 m extreme |
|
Draught |
Summer: 12,00 m |
|
Moulded L x B x D |
212,20 x 30,00 x 16,80 m |
|
Registered L x B x D |
212,20 x 30,00 x 16,80 m |
|
Freeboard |
4.837 mm |
|
Depth |
16,80 m |
|
Speed |
Max.: 23,0 knots |
|
Built |
2007 |
|
Keel laid |
18/01/2007 |
|
Launch date |
10/04/2007 |
|
Date of completion |
23/05/2007 |
|
Builder |
Hyundai Mipo Dockyard Co Ltd. Ulsan South-Korea |
|
Yard number |
457 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull - Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 7K80MC-C - 2 stroke single acting 7 cylinder 800 x 2.300 mm combustion engine 25.270 kW at 104,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 700 mm |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Steam boiler, oil fired 1x Exhaust gas heated Max. allow. working pressure 10,0 bar Heating surface 28,0 m² Heating surface 695,0 m² Builder: Aalborg Industries (Shanghai) Ltd. |
|
Generators |
4x MAN-B&W 8L28/32H main diesel generatorsets each 1.600 kW / 2.000 kVA |
|
Emergency generator |
1x Diesel generatorset 187,5 kVA |
|
Batteries |
Batteries for emergency lighting each 300 Ah Batteries for automation each 200 Ah |
|
Compressed air receivers |
2x Receivers each 8.500 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 1.100 kW |
|
Hatch cover type |
Steel pontoon type, non-sequential |
|
Tank capacities |
Heavy fuel oil abt.: 3.300 m³ Marine diesel oil abt.: 220 m³ Fresh water abt.: 220 m³ Ballast water abt.: 11/300 m³ |
|
Anchor equipment |
3x Anchors weight each 9.900 kg Length: 660,00 m Diameter: 78 mm |
|
Cargo gear |
Gearless |
|
Crew size |
26 |
|
Manager |
E.R. Schiffahrt GmbH & Cie. KG Hohe Bleichen 12 20354 Hamburg Germany |
|
Operator |
CMA CGM |
|
Registered owner |
MS "MOZART" Schiffahrtsgesellschaft mbH & Co. KG |
|
Renamed |
11/2018 Mozart Liberia, Monrovia - Call sign: A8MA9 Owner: Bomar Mozart LLC Manager: Boden Denizcilik A.S. 11/2021 GSL Mercer Liberia, Monrovia - Call sign: A8MA9 Reg. owner: Global Ship Lease 61 Llc.; Athens 145 61 - Greece Manager: Technomar Shipping Inc. , Kifissia - Greece |
|
Latest data adjustment |
30 October 2024 |
