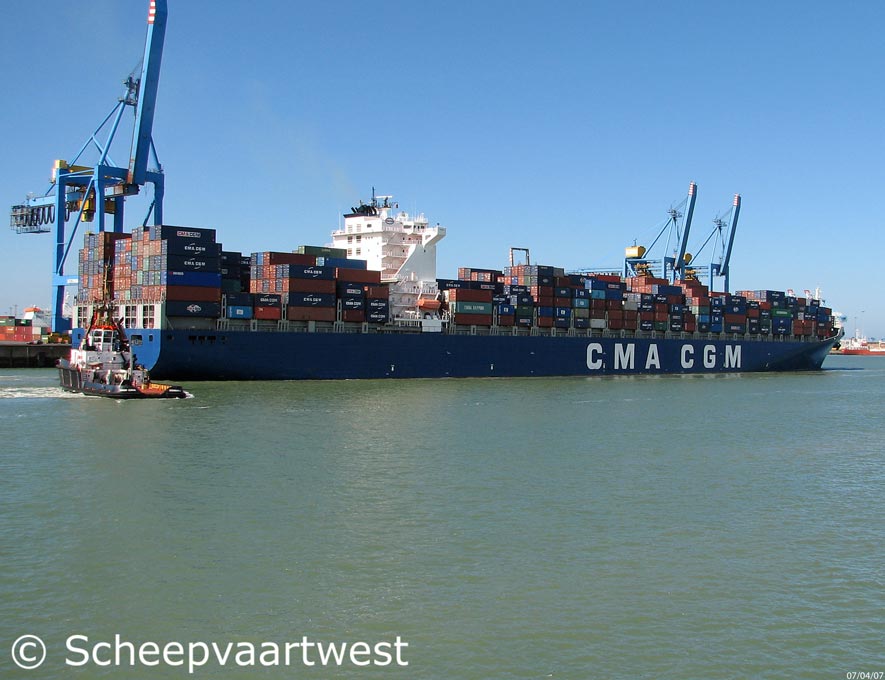

| Zeebrugge 07 April 2007 |
 |

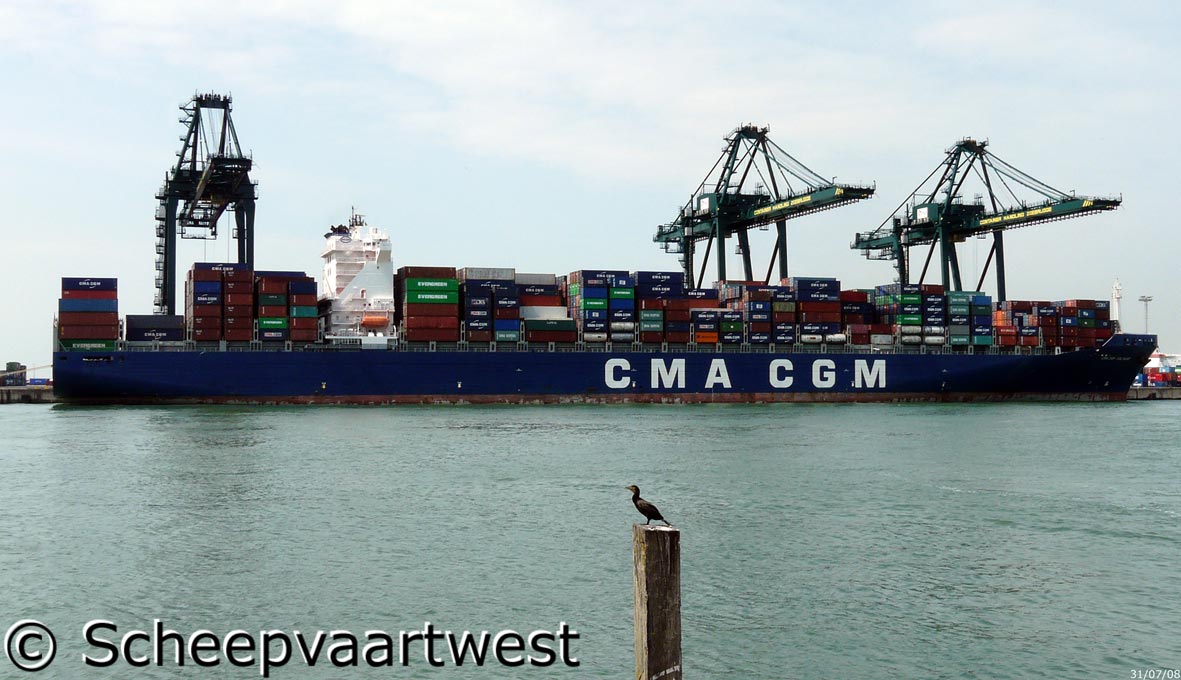

| Zeebrugge 31/07/08 |
|
Name |
CMA CGM VOLTAIRE |
|
Previous name |
2001-10.08.2001 Buxcoast |
|
Type |
Cellular containership |
|
IMO-number |
9221827 |
|
Call sign |
DQXQ |
|
Flag |
Germany |
|
Previous flag |
10.08.2001 Republic of Panama |
|
Port of registry |
Hamburg |
|
GT |
72.760 t |
|
DWT |
79.559 t |
|
NT |
41.077 t |
|
Number of 20ft containers |
6.446 |
|
Container capacity 14t |
4.880 |
|
Reefer points |
500 on deck up to 3rd tier |
|
Length |
300,00 m overall |
|
Breadth |
40,00 m over all |
|
Draught |
Summer: 14,50 m |
|
Freeboard |
9.700 mm |
|
Depth |
24,20 m moulded |
|
Speed |
26,1 knots |
|
Built |
2001 |
|
Keel laid |
19.03.2001 |
|
Launch date |
09.06.2001 |
|
Date of completion |
08.2001 |
|
Builder |
DSME - Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard / Geoje-si |
|
Yard number |
4071 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAN-B&W 12K98MC-C - 2 stroke single acting 12 cylinder 980 x 2.400 mm diesel engine - 68.520 kW |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,8 bar |
|
Electric installations |
1x 440/220 V - 10.500 kVA |
|
Generators |
3x Main diesel generatorsets each 3.500 kVA |
|
Emergency generator |
1x Diesel generatorset 688 kVA |
|
Compressed air receivers |
2x Receivers each 22.000 litres - 30,0 bar |
|
Bow thruster |
1x Variable pitch propeller LIPS - 1.500 kW, forward |
|
Tank capacities |
Ballast: 19.301 m³ |
|
Anchor equipment |
3x Anchors weight each 16.100 kg |
|
Cargo gear |
Gearless |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG. |
|
Operator |
CMA CGM |
|
Owner |
Bereederungs- und Schiffahrtsges. mbH & Co. MS "BUXCOAST" KG |
