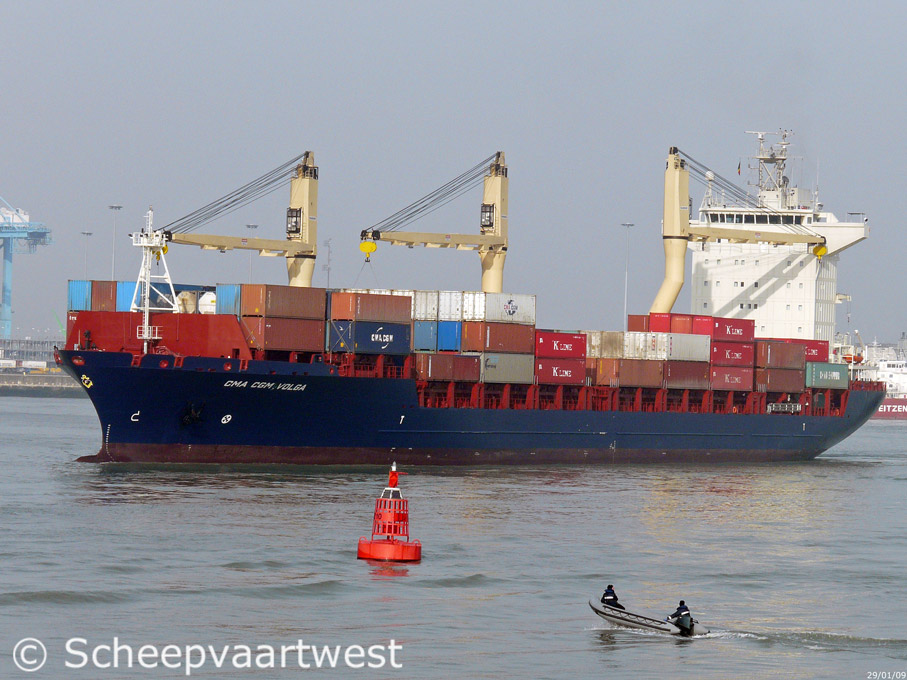

| Zeebrugge 29 january 2009 |
 |
 |
 |
||

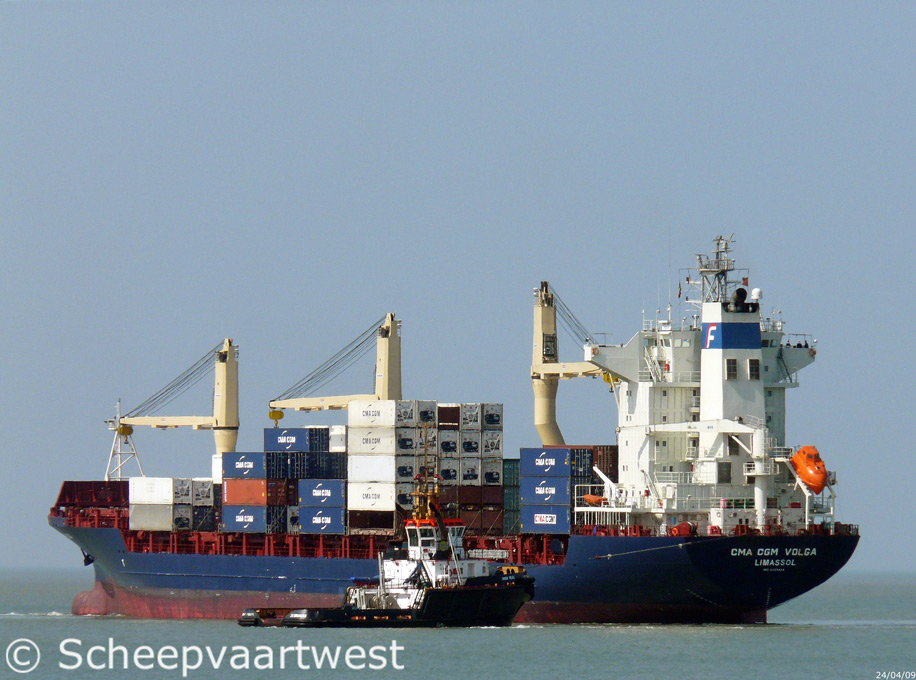

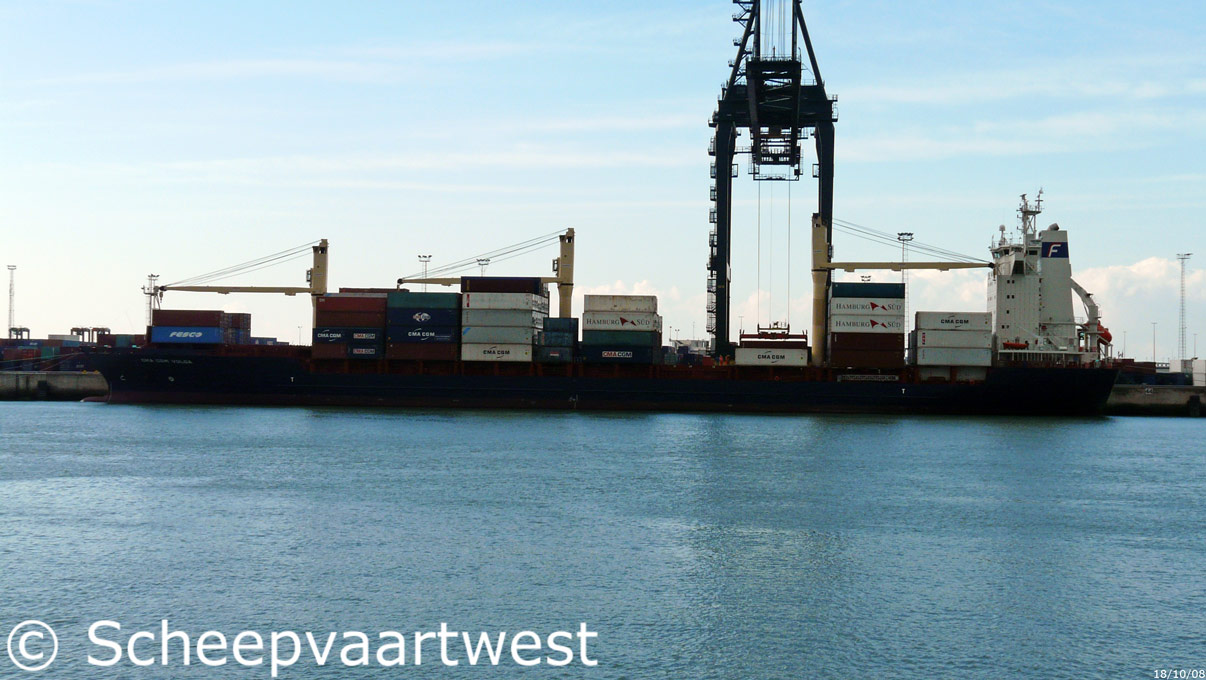

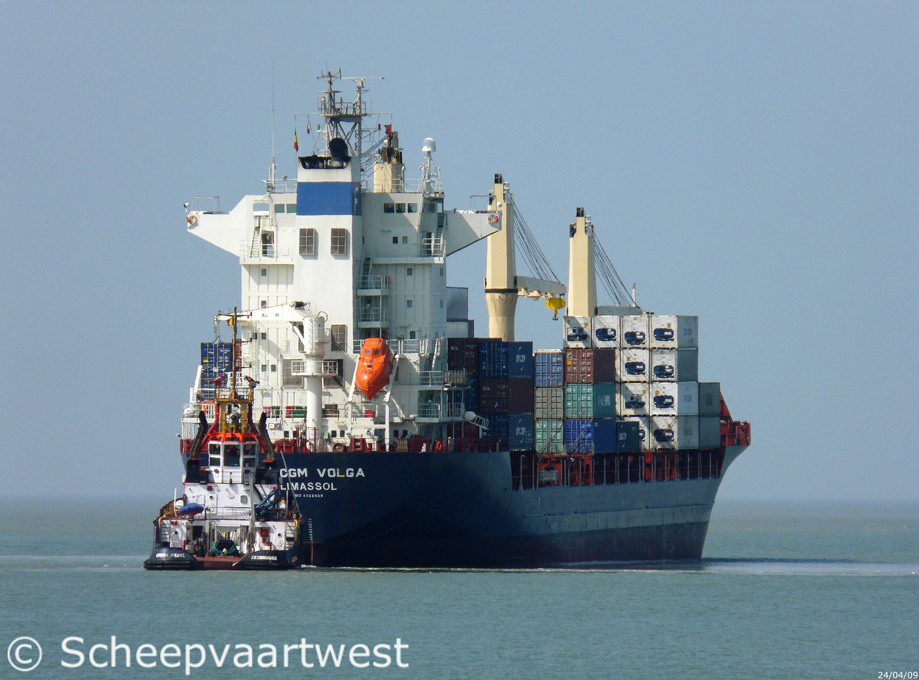

| Zeebrugge 24/04/09 | Zeebrugge 24/04/09 | Zeebrugge 18/10/08 |
|
Name |
CMA CGM VOLGA |
|
Previous name |
Fesco Vitim |
|
Type |
Cellular containership |
|
IMO-number |
9322009 |
|
Call sign |
5BJR2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
16.803 t |
|
DWT |
22.749 t |
|
NT |
8.648 t |
|
Number of 20ft containers |
1.730 |
|
Container capacity 14t |
1.094 |
|
Reefer point |
200 plugs - 440 V - 60 Hz |
|
Length |
183,98 m overall 172,32 m registered |
|
Breadth |
25,30 m registered |
|
Draught |
9,889 m |
|
Forecastle |
36,819 m |
|
Poop |
15,082 m |
|
Freeboard |
3.633 mm |
|
Depth |
13,50 m moulded |
|
Speed |
19,7 knots |
|
Built |
2008 |
|
Keel laid |
14.01.2008 |
|
Launch date |
17.05.2008 |
|
Date of completion |
26.08.2008 |
|
Builder |
Stocznia Szczecinska Nowa Sp. |
|
Yard number |
B170-V/1 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 6 RTA 62U Cegielski - 2 stroke single acting 6 cylinder 620 x 2.150 mm diesel engine - power output 13.320 kW at 113,0 rpm Year of manufacture: 2008 Manufacturer: H. Cegielski-Poznan S.A. |
|
Propeller |
1x Solid propeller (keyless) - aft at 113 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 24,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 294,0 m² Year of manufacture: 2008 Manufacturer: Aalborg Industries A/S |
|
Electric Installations |
1x Plant 450/220 V - 4.110 kVA 1x Plant 450 V - 156 kVA 1x Plant 12 V - 50 Ah 1x Plant 24 V - 42 Ah 1x Plant 24 V - 126 Ah |
|
Generators |
3x Main diesel generatorsets each 1.370 kVA |
|
Emergency generator |
1x Diesel generatorset 156 kVA |
|
Batteries |
1x Battery for automation 126 Ah 2x Batteries for start emergency engine each 50 Ah 1x Battery for UPS Radio 42 Ah |
|
Compressed air receivers |
2x Receivers each 6.300 litres - 30,0 bar 1x Receiver 500 litres - 30,0 bar 1x Receiver 40 litres - 30,0 bar 1x Receiver 750 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster 750 kW - forward |
|
Cargo capacity |
Grain: 29.816 m³ |
|
Cargo gear |
3x Cranes - SWL 45 t each |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m |
|
Fuel capacity |
2.230 m³ |
|
Crew |
17 |
|
Crew size |
25 |
|
Manager owners |
Fesco Wallem Shipmanagement Ltd. |
|
Operator |
CMA CGM |
|
Owner |
Mar Space Shipping Co. Ltd. |
