Westerschelde 15 February 2016 |
 |
 |
 |
||
| Westerschelde 19/03/16 | Westerschelde 02/07/16 | Westerschelde 14/06/15 | ||
|
Name |

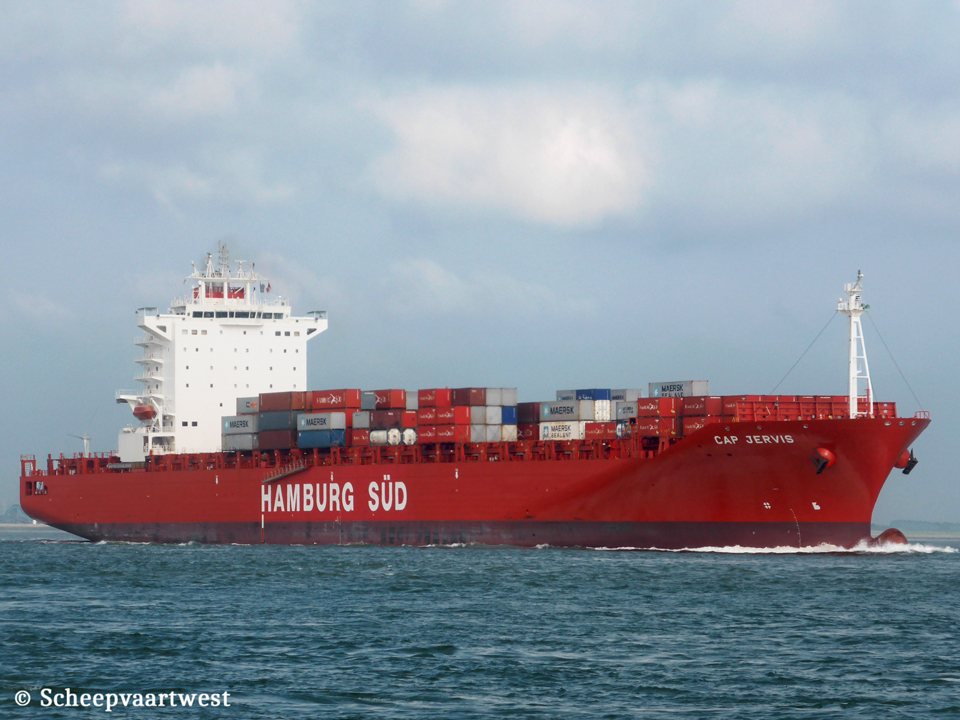

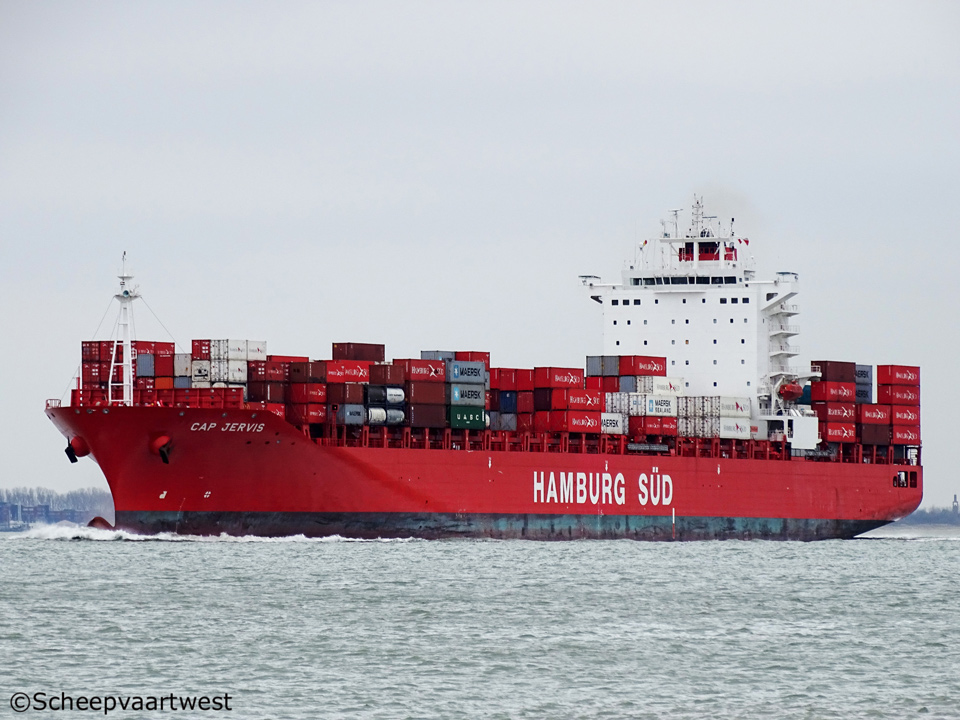

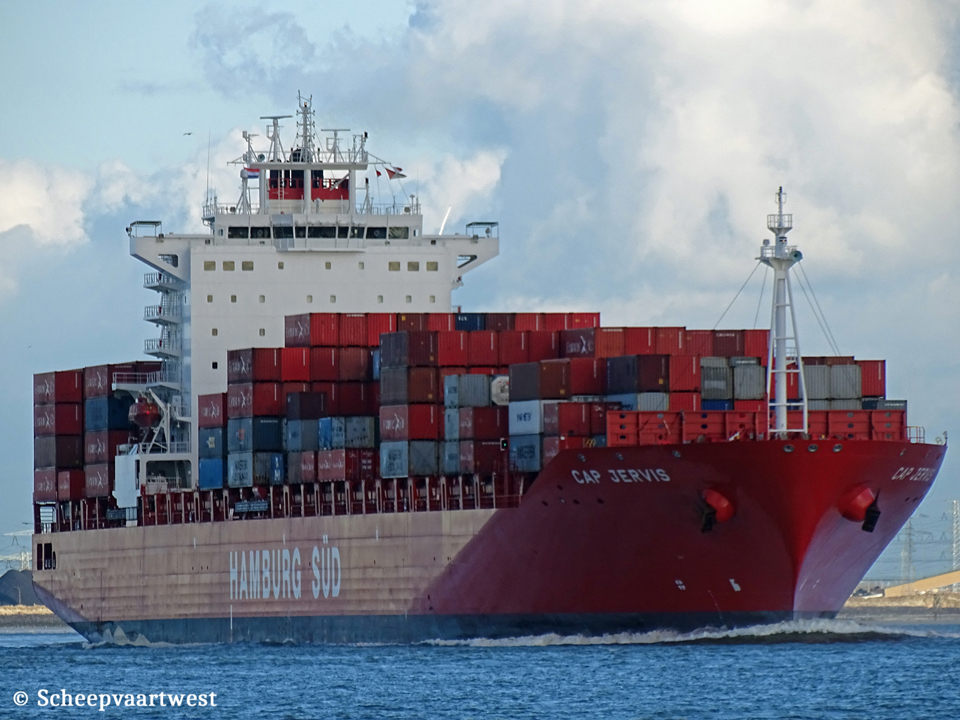

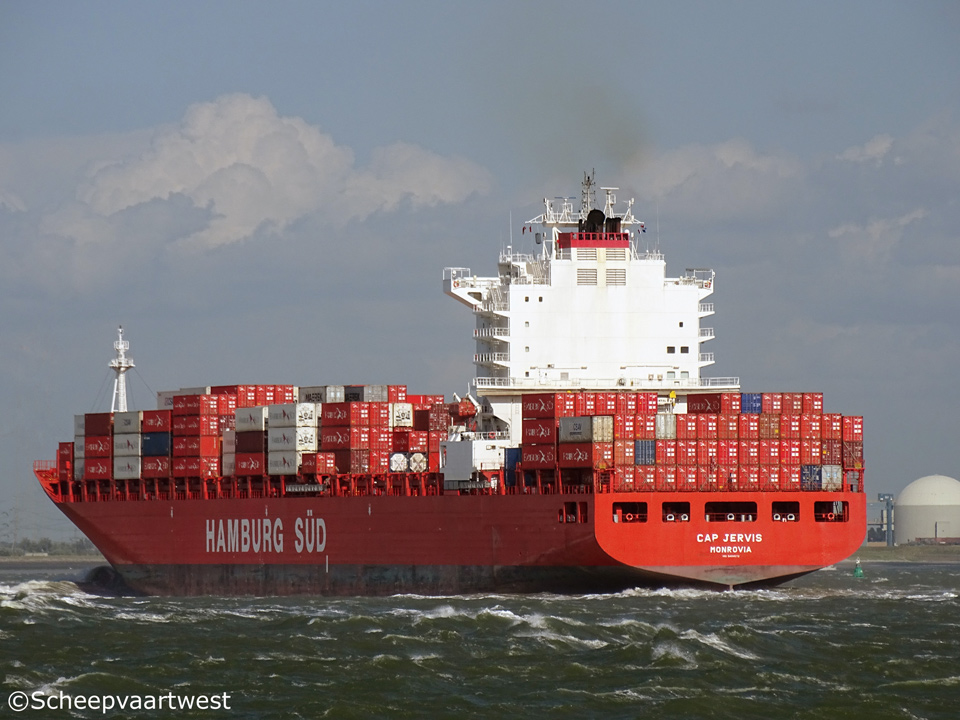

CAP JERVIS |
|
Type |
Cellular containership |
|
IMO-number |
9484572 |
|
Call sign |
9V6246 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flag |
2010 - 2018 Liberia, Monrovia - Call sign: A8VL7 |
|
GT |
47.877 t registered |
|
DWT |
Summer: 59.266 t |
|
NT |
29.554 t registered |
|
Number of 20ft containers |
4.616 |
|
Reefer capacity |
516 |
|
Length |
264,39 m overall |
|
Breadth |
32,20 m |
|
Draught |
13,50 m |
|
Freeboard |
3.858 mm |
|
Depth |
21,50 m |
|
Speed |
Max.: 24,5 knots |
|
Built |
2010 |
|
Delivery date |
01/07/2010 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo South Korea |
|
Yard number |
4190 |
|
Hull material |
High strength steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Doosan 8K90MC-C6 – 2 stoke 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW / 49.707 hp at 104,0 rpm Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Composite auxiliary boiler – 9,0 bar Manufacturer: Kangrim Industries Co., Ltd. |
|
Generators |
4x Hyundai/HimSen 8H25/33 diesel generatorsets each 2.400 kW |
|
Bow thruster |
1x 1.500 kW |
|
Number of holds |
7 |
|
Cargo hold capacity |
97.175,4 m³ |
|
Number of tanks |
Ballast: 19 Fuel oil: 14 Lubricating oil: 9 Waste water: 4 Chain: 2 Diesel oil: 2 Fresh Water: 2 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 244,9 m³ Freshwater: 282,4 m³ Fuel Oil: 6.425,2 m³ Lube Oil: 345,6 m³ Tank Ballast: 14.537,2 m³ |
|
Lifting equipment |
1x Provisions crane – SWL 10,0 t |
|
Cargo gear |
Gearlerss |
|
Registered Owner |
A.P. Moller Singapore Pte Ltd 1 Paya Lebar Link #13-01 Paya Lebar Quarter Singapore City, 408533 Republic of Singapore |
|
Latest data adjustment |
23 January 2024 |
