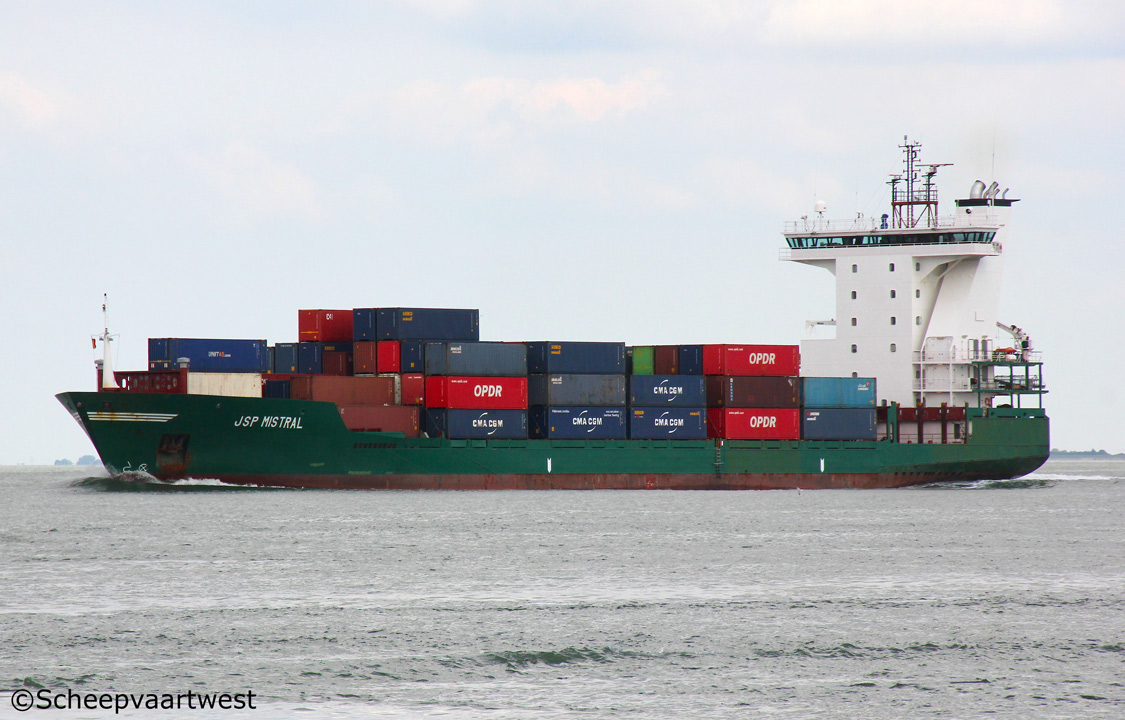

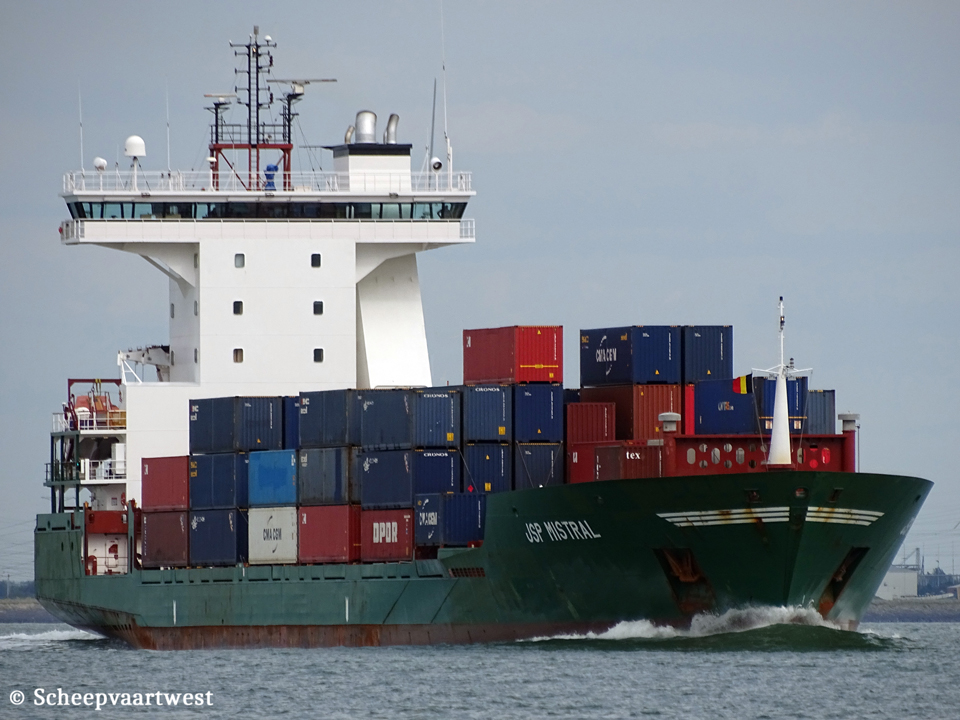

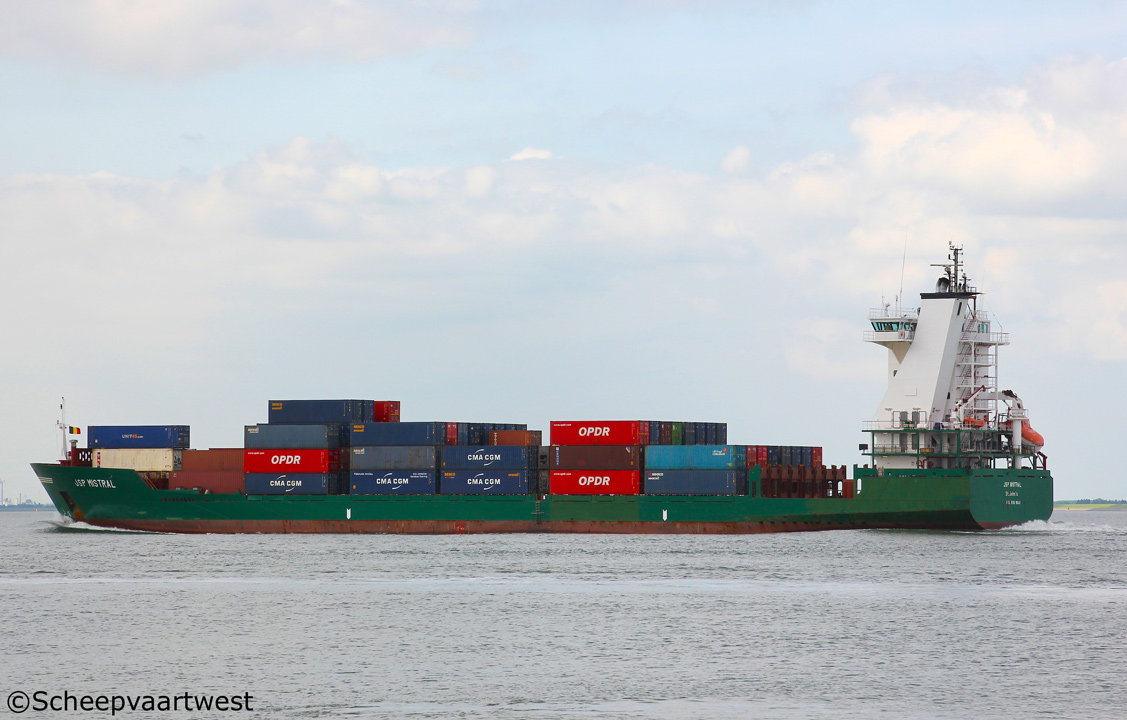

Westerschelde 21 August 2017 |
 |
 |
 |
||
| Terneuzen 21/08/17 | Terneuzen 21/08/17 | Westerschelde 26/05/17 | ||
|
Name |
JSP MISTRAL |
|
Previous names |
Build as: 2010 Euro Adventure 2010 - 2016 Meera |
|
Type |
Containership |
|
IMO-number |
9368041 |
|
Call sign |
V2FD7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
8.039,5 t |
|
DWT |
10.316 t |
|
NT |
3.615 t |
|
Number of 20ft containers |
In hold: 239 On deck: 668 Total: 907 |
|
Container capacity 14t |
583 |
|
Reefer capacity |
200 |
|
Length |
137,76 m overall 129,80 m between perpendiculars |
|
Breadth |
21,80 m extreme 21,70 m moulded |
|
Draught |
Max.: 7,74 m |
|
Freeboard |
1.413 mm |
|
Depth |
9,15 m |
|
Speed |
Max.: 17,9 knots |
|
Built |
2010 |
|
Keel laid |
24/06/2003 |
|
Launch date |
23/02/2009 |
|
Date of completion |
29/07/2010 |
|
Builder |
Schiffswerft Hugo Peters GmbH Wewelsfleth Germany |
|
Yard number |
678 |
|
Hull material |
Steel |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8M43C - 8 cylinder 430 x 610 mm combustion engine 8.000 kW / 10.870 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 137 rpm |
|
Boilers |
1x Thermal oil heater, exhaust heated type AWE 950 V 53 - 10,0 bar 1x Thermal oil heater, oil fired type DWE 1100 V 53 - 10,0 bar |
|
Shaft generator |
1x 2.400 kW / 3.000 kVA |
|
Generators |
2x Volvo Penta D34A-MS main diesel generatorsets each 800 kVA - 640 kW - 923 hp |
|
Emergency generator |
1x MAN D2876 LE 201 diesel generatorset 500 kVA - 400 kW - 482 hp |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
4 |
|
Total capacity of holds |
12.752 m³ |
|
Tank capacities |
Fuel oil: 525,8 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 56 mm |
|
Cargo gear |
Gearless |
|
Operator |
Schiffahrtskontor Tom Wörden GmbH & Co. KG Wilhelm-Schröder-Straße 3 21726 Oldendorf Germany |
|
Registered owner |
MS 'JSP Mistral' Schifffahrts UG (haftungsbeschraenkt) & Co. KG |
|
Latest data adjustment |
07 June 2024 |
