Westerschelde 03 June 2017 |
 |
 |
|
| WS 03/06/17 | Westerschelde 30/06/16 |
|
Name |

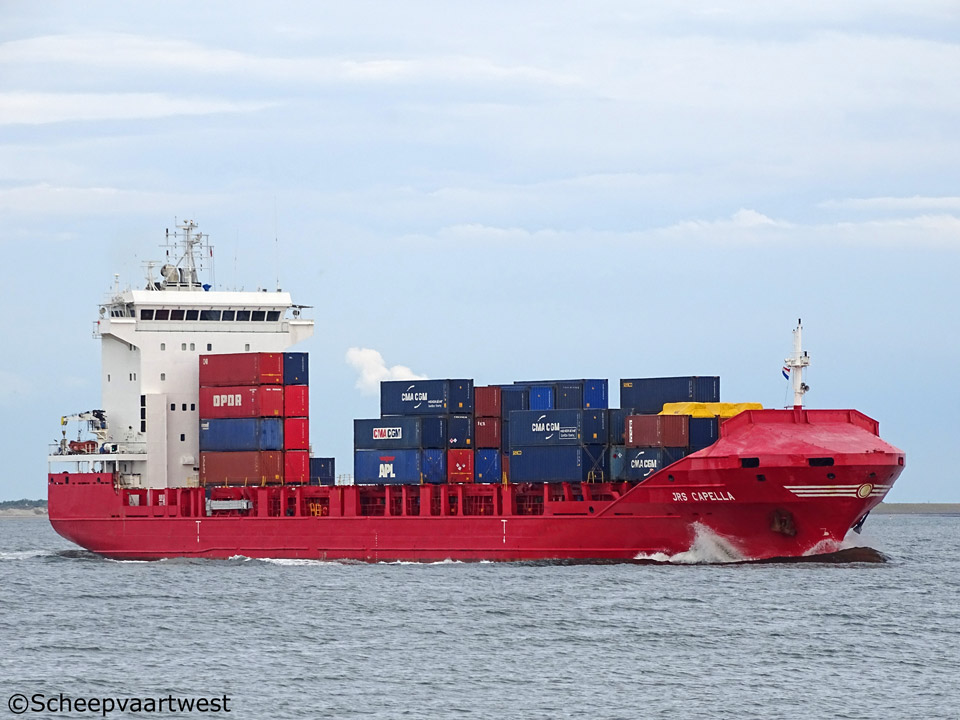

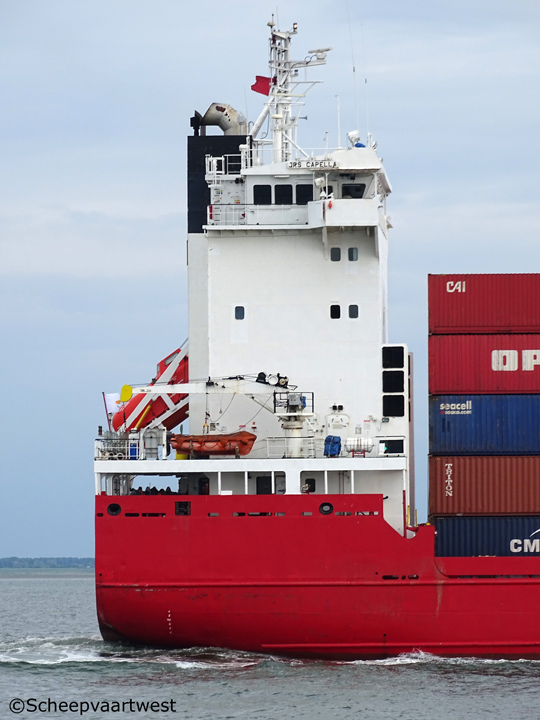

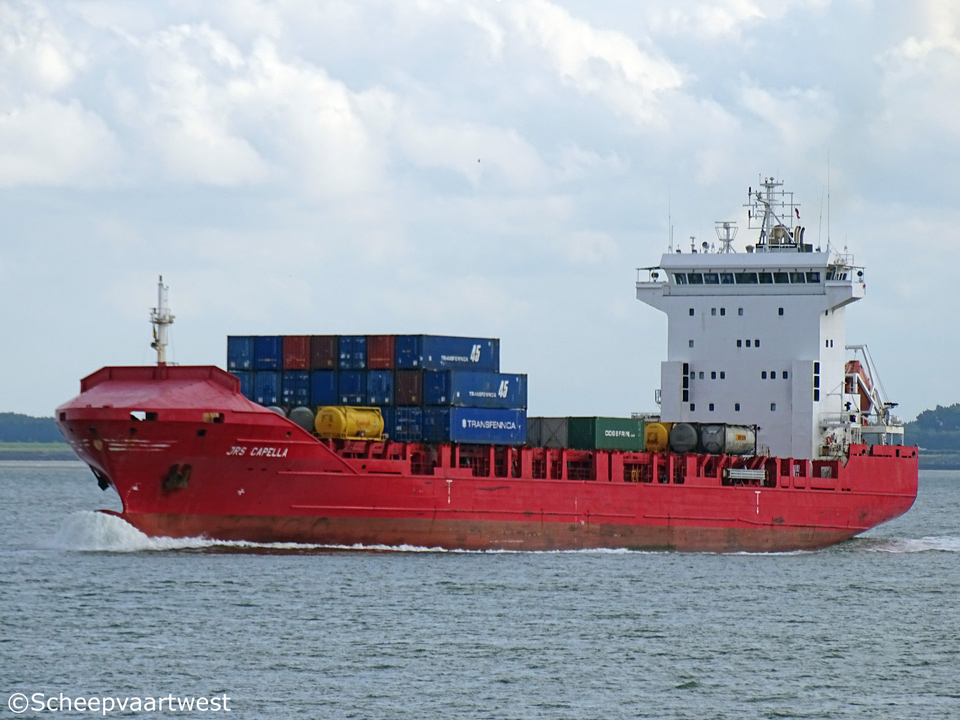

JRS CAPELLA |
|
Type |
Containership |
|
IMO-number |
9329564 |
|
Call sign |
5BER4 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
7.464 t |
|
DWT |
Summer: 8.261,9 t |
|
NT |
3.085 t |
|
Number of 20ft containers |
On deck: 472 in hold: 226 Total: 698 |
|
Container capacity 14t |
436 |
|
Reefer capacity |
120 |
|
Length |
129,51 m overall 120,34 m between perpendiculars |
|
Breadth |
20,83 m extreme 20,60 m moulded |
|
Draught |
7,40 m |
|
Forecastle |
8,53 m |
|
Poop |
9,87 m |
|
Depth |
10,80 m |
|
Speed |
Max.: 17,5 knots |
|
Built |
2004 |
|
Keel laid |
21.05.2004 |
|
Launch date |
31.08.2004 |
|
Date of completion |
23.12.2004 |
|
Builder |
Fujian Mawei Shipbuilding Ltd. |
|
Yard number |
VMW437-04 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 8M43C - 4 stroke 8 cylinder 430 x 610 mm diesel engine 7.200 kW at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 29,8 m² 1x Thermal oil heater, exhaust heater - 10,0 bat Heating surface: 121,5 m² Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Shaft generator |
1x 1.000 kW / 1.250 kVA |
|
Generators |
3x Yanmar 6N18AL-DV diesel generatorsets each 450 kW / 563 kVA |
|
Emergency generator |
1x Sisu diesel 634 DSBIG diesel generatorset 181 kVA |
|
Batteries |
2x Batteries for automation each: 200 Ah |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 600 kW, forward |
|
Number of holds |
4 |
|
Tank capacities |
IFO: 663,3 m³ MGO: 112,9 m³ Ballast: 3.315,7 m³ |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Length: 550,00 m Diameter: 52 mm |
|
Cargo gear |
Gearless |
|
Crew size |
15 |
|
Manager |
Marlow Ship Management Deutschland GmbH & Co. KG |
|
Registered owner |
MS ''JRS CAPELLA'' Schiffahrtsgesellschaft mbH & Co. KG |
|
Latest data adjustment |
27 July 2017 |
