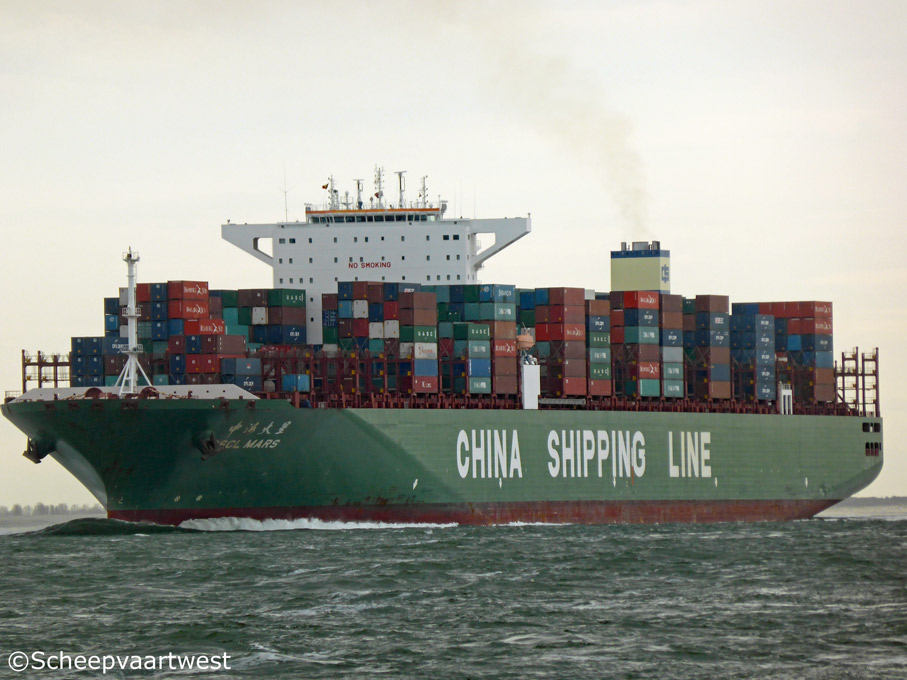

Westerschelde 29 April 2015 |
 |
 |
 |
 |
 |
||||

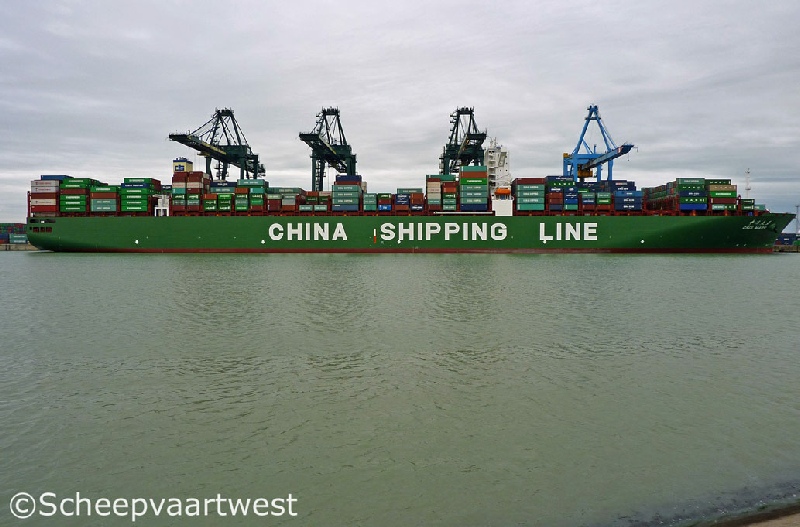

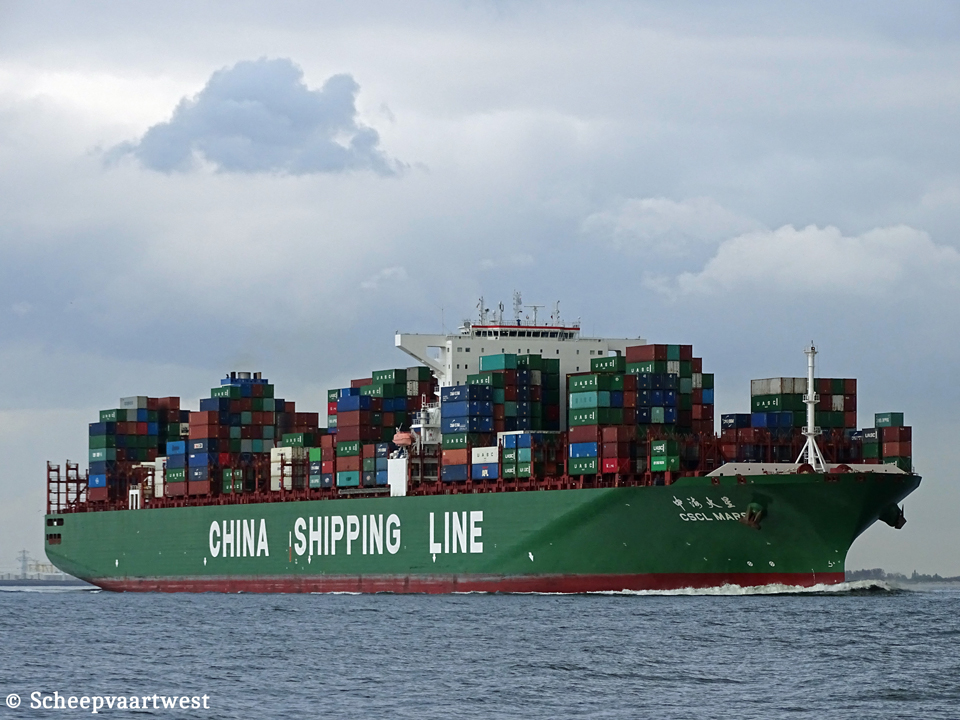

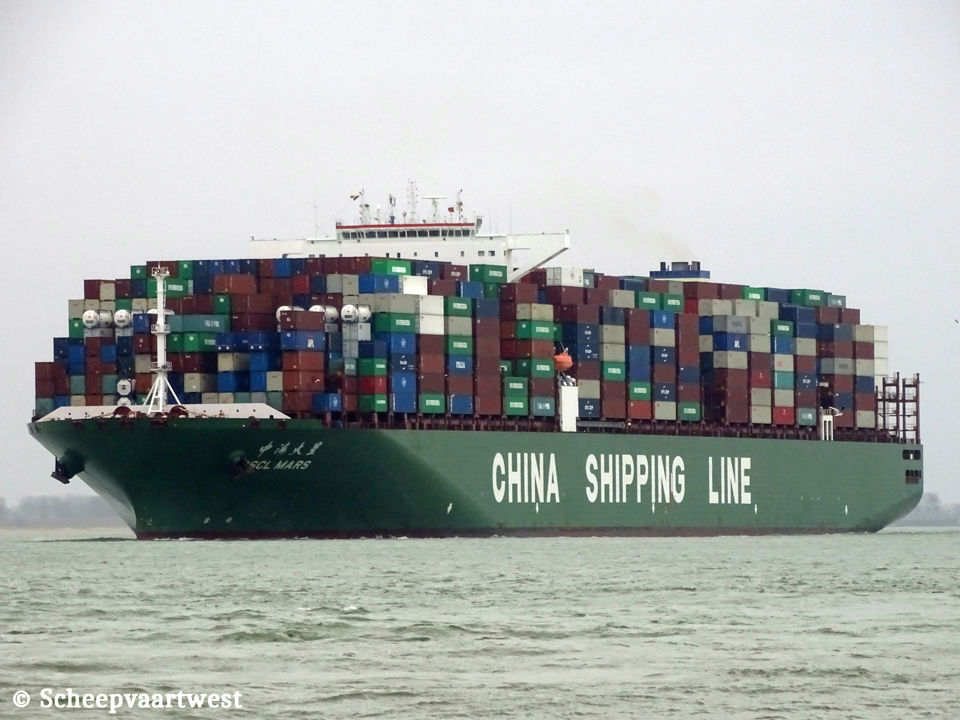

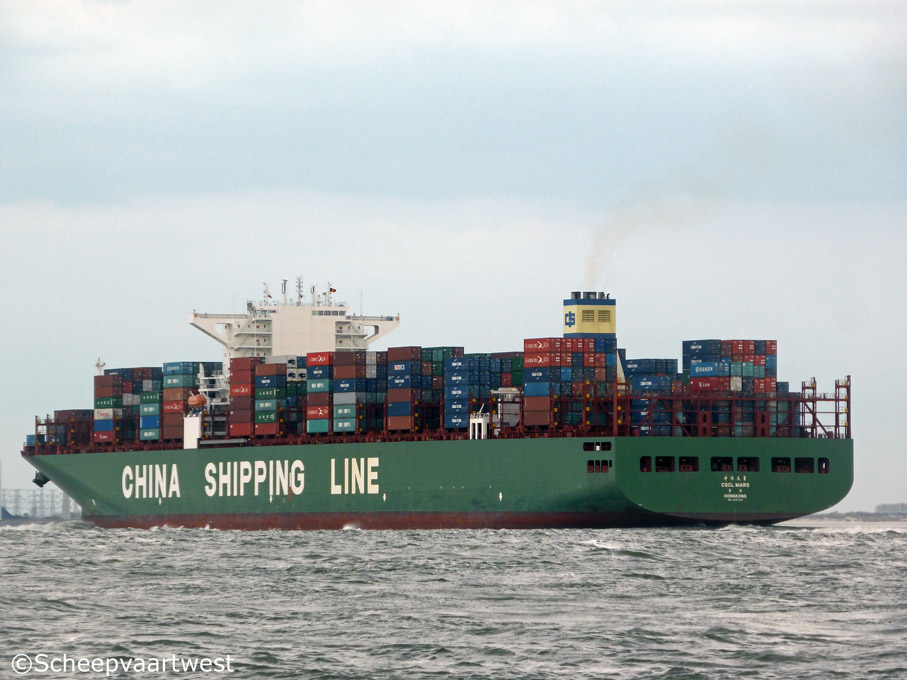

| Westerschelde 16/04/17 | Westerschelde 29/04/15 | Westerschelde 29/04/15 | Zeebrugge 11/12/11 | Westerschelde 05/01/19 | ||||
|
Name |
CSCL MARS |
|
China name |
中海火星 |
|
Type |
Cellular containership |
|
IMO-number |
9467287 |
|
Call sign |
VRJG2 |
|
Flag |
Hong Kong special administrative regions of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
150.853 t |
|
DWT |
Summer: 155.467 t |
|
NT |
80.514 t |
|
Number of 20ft containers |
On deck: 7.658 In hold: 6.416 14.074 |
|
Container capacity 14t |
10.500 |
|
Reefer capacity |
1.000 |
|
Length |
366,07 m overall 349,60 m between perpendicular 351,50 m registered |
|
Breadth |
51,20 m registered |
|
Draught |
Summer: 15,50 m |
|
Keel to mast end |
62,50 m |
|
Deckhouse |
6,30 m |
|
Freeboard |
4.936 mm |
|
Depth |
29,90 m moulded |
|
Speed |
Max: 25,1 knots |
|
Built |
2011 |
|
Keel laid |
19/05/2011 |
|
Launch date |
13/08/2011 |
|
Date of completion |
28/10/2011 |
|
Builder |
Samsung Shipbuilding & Heavy industries Co., Ltd. Goeje shipyard South Korea |
|
Yard number |
1823 |
|
Hull material |
Steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
10 |
|
Continuous deck |
2 1x Upper deck 1x 2nd deck |
|
Main engine |
1x MAN-B&W 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW at 104,0 rpm Build: 16/06/2011 Manufacturer: Doosan Engine Co., Ltd., Changwon - Republic of Korea |
|
Propeller |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,85 bar Heating surface: 75,9 m² 1x Steam boiler, exhaust gas heated - 7,85 bar Heating surface: 897,0 m² Build: 2011 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric Installations |
1x Plant 6.600 V - 3.500 kVA 1x Plant 6.600 V - 3.500 kVA 1x Plant 6.600 V - 4.750 kVA 1x Plant 6.600 V - 4.750 kVA 1x Plant 450 V - 375 kVA 1x Plant 24 V - 8 Ah 3x Plants each 24 V - 36 Ah 2x Plants each 24 V - 76 Ah 4x Plants each 24 V - 100 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 2x Plants each 110 V - 360 Ah |
|
Generators |
2x Main diesel generatorsets each 4.750 kVA 2x Main diesel generatorsets each 3.500 kVA |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Batteries |
2x Batteries for automation each 360 Ah 1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 200 Ah 4x Batteries for diesel control each 100 Ah 2x Batteries for automation each 76 Ah 3x Batteries for automation each 36 Ah 1x Battery for start emergency engine 4 Ah 1x Battery for start emergency engine 4 Ah |
|
Compressed air receivers |
2x Receivers each 18.000 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 400 litres - 7,7 bar |
|
Bow thruster |
2x Transverse thruster each 1.700 kW, forward |
|
Number of holds |
7 |
|
Number of hatches |
7 |
|
Tank capacities |
Ballast: 43.764 m³ |
|
Anchor equipment |
3x Anchors weight each 26.000 kg Chain Length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
31 |
|
Commerical manager |
COSCO Shipping Development Room A538, International Trade Center, China (Shanghai) Port Free Trade Zone, Pudong Xinqu Shanghai, 201308 China |
|
ISM Manager |
China International Ship management Unit E, 6th Floor, China Development Bank Tower, 500, Pudong Nanlu, Pudong Xinqu Shanghai, 200120 China |
|
Operator |
CSCL - China Shipping Container Lines |
|
Registered owner |
CSCL Mars Shipping Co., Ltd. Care of COSCO Shipping Development Co Ltd , Room A538, International Trade Center, China (Shanghai) Port Free Trade Zone, Pudong Xinqu Shanghai, 201308 China. |
|
Latest data adjustment |
14 November 2021 |
