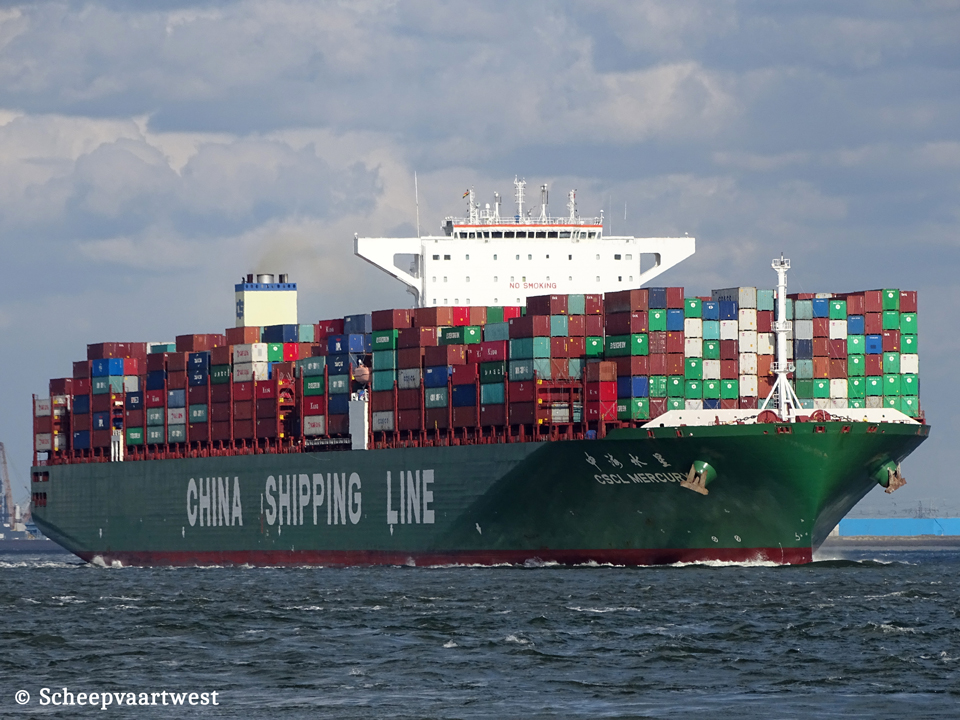

| Westerschelde 25 April 2017 |
 |
|

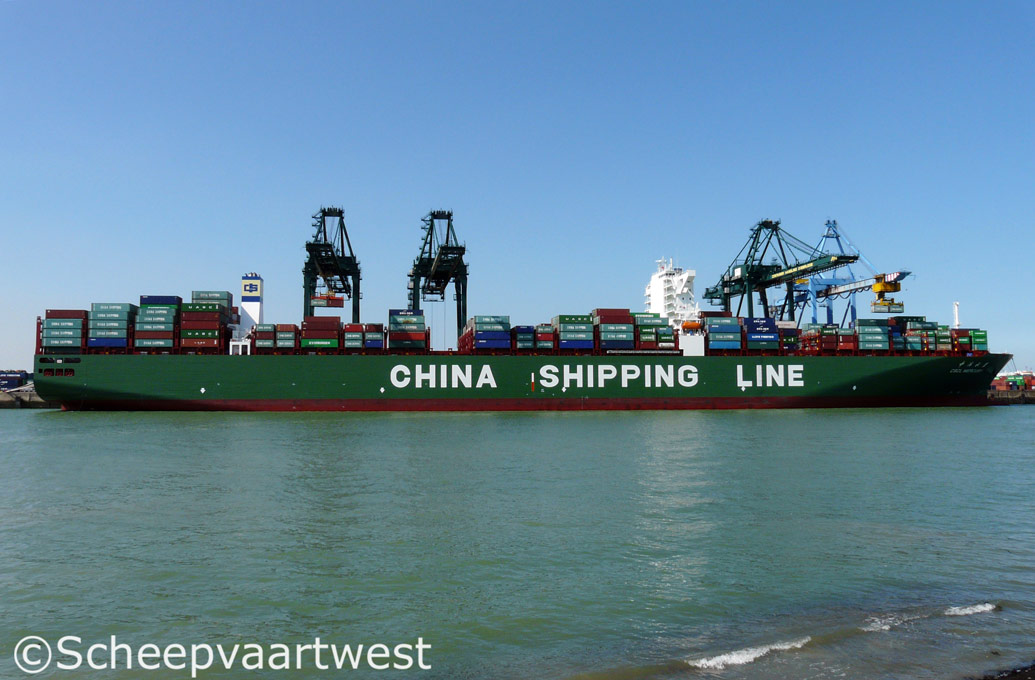

| Zeebrugge 01/09/11 | |
|
Name |
CSCL MERCURY |
|
China name |
中海水星 |
|
Type |
Cellular containership |
|
IMO-number |
9467275 |
|
Call sign |
VRIQ7 |
|
Flag |
Hong Kong - People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
151.933 t |
|
DWT |
155.374 t |
|
NT |
80.514 t |
|
Number of 20ft containers |
On deck: 7.658 In hold:6.416 Total: 14.074 |
|
Container capacity 14t |
10.500 |
|
Reefer capacity |
1.000 |
|
Length |
366,07 m overall 350,00 m between perpendiculars |
|
Breadth |
51,20 m moulded |
|
Draught |
14,50 m |
|
Deck house |
9,00 m |
|
Freeboard |
4.936 mm |
|
Depth |
29,90 m moulded |
|
Speed |
24,2 knots |
|
Built |
2011 |
|
Keel laid |
10/03/2011 |
|
Launch date |
29/04/2011 |
|
Date of completion |
13/07/2011 |
|
Builder |
Samsung Shipbuilding & Heavy industries Co. Ltd. Geoje South Korea |
|
Yard number |
1822 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Number of decks |
2 Upper deck & 2nd deck |
|
Watertight bulkheads |
8 |
|
Main engine |
1x MAN-B&W/Doosan 12K98ME-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine power output 72.239 kW at 104,0 rpm Build: 2011 Builder: Doosan Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, exhaust gas heated Heating surface: 897,0 m² 1x Steam boiler, oil fired - 7,85 bar Heating surface: 75,9 m² Build: 2011 Builder: KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric Installations |
1x Plant 6600 V - 3.500 kVA 1x Plant 6600 V - 3.500 kVA 1x Plant 6600 V - 4.750 kVA 1x Plant 6600 V - 4.750 kVA 1x Plant 450 V - 375 kVA 1x Plant 24 V - 8 Ah 3x Plants, each 24 V - 36 Ah 2x Plants, each 24 V - 76 Ah 4x Plants, each 24 V - 100 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 2x Plants each 110 V - 360 Ah |
|
Generators |
2x Main diesel generatorsets each 3.800 kW / 4.750 kVA 2x Main diesel generatorsets each 2.800 kW / 3.500 kVA |
|
Emergency generator |
2x Diesel generatorset 375 kVA |
|
Batteries |
2x Batteries for automation each 360 Ah 1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 200 Ah 4x Batteries for diesel control each 100 Ah 2x Batteries for automation each 76 Ah 3x Batteries for automation,each 36 Ah 1x Battery for start emergency engine 4 Ah 1x Battery for start emergency engine 4 Ah |
|
Compressed Air Receivers |
2x Receivers each 18000 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 400 litres - 7,0 bar |
|
Bow thrusters |
1x Transverse thruster 1.700 kW, forward |
|
Number of holds |
7 |
|
Number of hatches |
7 |
|
Tank capacities |
Ballast: 43.764 m³ |
|
Anchor equipment |
3x Anchors weight each 26.000 kg Chain length: 770,00 m |
|
Lifting capacity |
1x Crane - SWL 12,5 t 2x Cranes - SWL 4,0 t each 2x Cranes - SWL 3,0 t each |
|
Cargo gear |
Gearless |
|
Crew |
25 |
|
Crew size |
31 |
|
Manager |
China Shipping Container Lines 450, Fushan Lu, Pudong Xinqu Shanghai, 200122 China |
|
Operator |
Shanghai Ocean Shipping Co.,Ltd. No 415 Zhengmin Road Shanghai 200433 China |
|
Registered owner |
CSCL Mercury Shipping Co., Ltd. Care of China Shipping Container Lines Co Ltd , 450 Fushan Lu, Pudong Xinqu Shanghai, 200122 China |
|
Latest data adjustment |
05 March 2023 |
