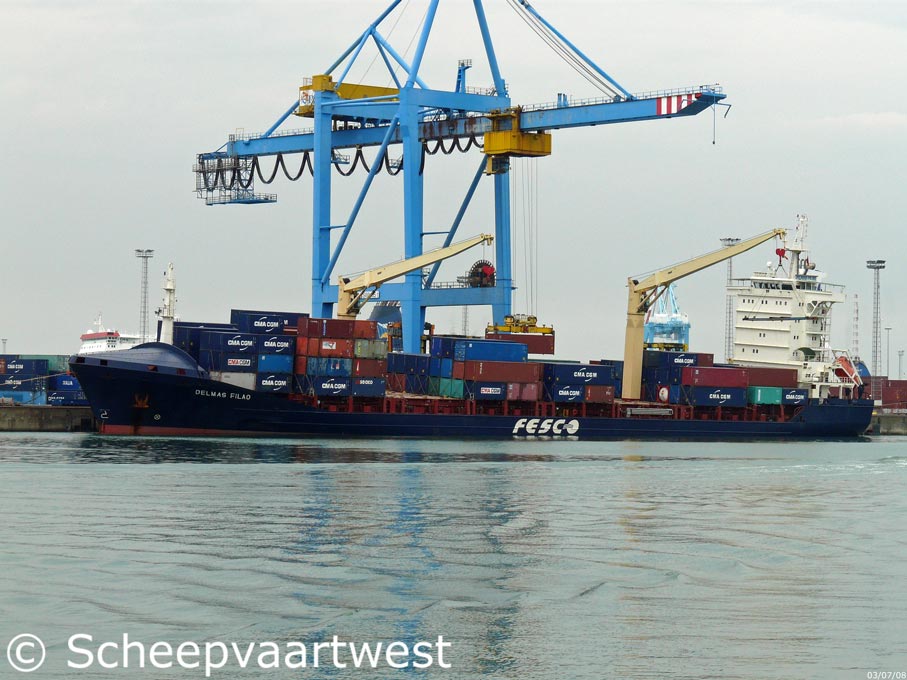

Delmas Filao - IMo 9324942

Name

DELMAS FILAO

Previous names

2006-10.05.2006 Fesco Askold

10.05.2006-11.03.2009 Delmas Filao

Type

Cellular Containership

IMO-number

9324942

Call sign

C4JA2

Flag

Cyprus

Port of registry

Limassol

GT

9.957 t

DWT

Summer: 13.806 t

NT

5.032 t

Number of 20ft containers

1.118

Container cap. at 14t

700

Reefer Capacity

220

Length

147,87 m overall
140,30 m between perpendiculars

141,37 m registered

Breadth

23,25 m over all

Draught

Summer: 8,506 m

Forecastle

11,70 m

Poop

13,30 m

Freeboard

2.990 mm

Depth

11,50 m

Speed

19,6 knots

Built

2006

Keel laid

06.12.2004

Launch date

07.11.2005

Date of completion

20.04.2006

Builder

China Changjiang National Shipping Group Nanjing Jinling Shipyard
55, Yanjiang Road
210015 Nanjing , Jiangsu
People's Republic of China

Yard number

JLZ040-405

Hull material

Shipbuilding steel (standard)

Hull type

Single hull

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN-B&W 7 L 58/64 - 4 stroke single acting 7 cylinder 580 x 640 mm diesel engine - output 9.730 kW

Year of manufacture: 2005

Builder: MAN Group Munchen
Stadtbachstr. 1
86153 Augsburg
Federal Republic of Germany

Number of screws

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 98,8 m²

1x Thermal oil heater, oil fired - 13,0 bar
Heating surface: 28,0 m²

Year of manufacture: 2005

Manufacturer: Aalborg Industries Ltd.
1485-1 Ja-dong, Haeundae-gu 5th Floor, Saesam Building
Busan
Republic of Korea

Electric installations

1x 450/230 V - 2.139 kVA

1x 450 V - 1.750 kVA

1x 450 V - 687,5 kVA

1x 24 V - 640 Ah

Shaft generator

1.750 kVA / 1.400 kW

Generators

3x Main diesel generatorsets each 713 kVA / 570,4 kW

Emergency generator

1x Diesel generatorset 687,5 kVA / 550 kW

Batteries

2x Batteries for emergency lighting each 120 Ah

Compressed air receivers

2x Receivers each 1.250 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 700 kW, forward

Number of hatchways

5

1x 14,00 x 10,40 m
4x 12,60 x 18,00 m

Largest hatch

Length: 27,30 m
Breadth: 18,00 m

Cargo gear

2x Cranes - SWL 45 t each

Anchor equipment

3x Anchors weight each 6.000 kg

Chain length: 577,50 m

Crew size

22

Manager

FesCo
Astro Moon Shipping Cie.
Cyprus

Operator

CMA CGM Marseille Head Office
4, quai d'Arenc 13235
Marseille cedex 02
France

Shipping company

Delmas
1 Quai Colbert BP 7007X
76080 Le Havre Cedex
France

Owner

Far-Eastern Shipping Co (FESCO)

Owner as completed

Far-Eastern Sg Co.
Limassol
Cyprus

Renamed

11.03.2009 Fresco Askold
