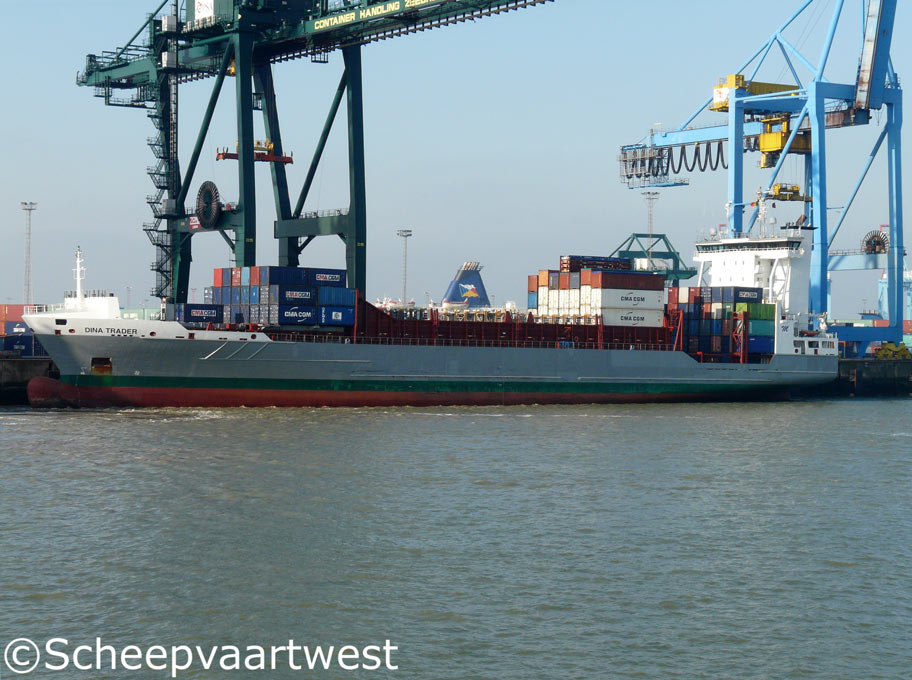

Dina Trader 05
Zeebrugge 29 January 2011



Name

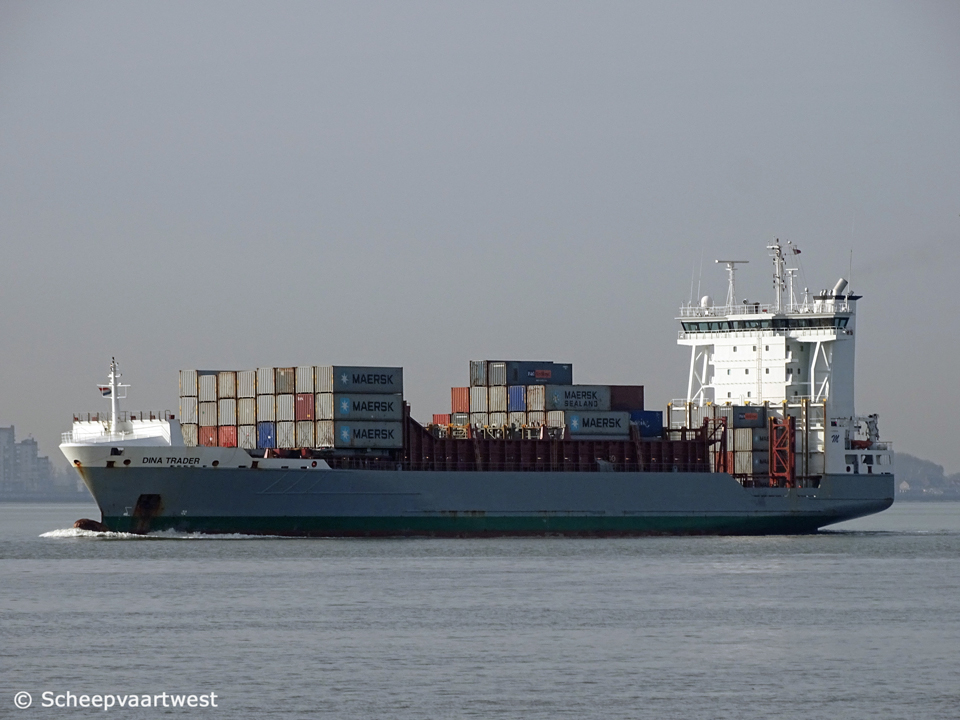

DINA TRADER

Previous name

Jan-Fabian

Type

Cellular containership

IMO-number

9354442

Call sign

ZDIW5

Flag

Gibraltar

Port of registry

Gibraltar

GT

9.981 t

DWT

11.287 t

NT

6.006 t

Number of 20ft containers

868

or 394 FEU + 80 TEU

Container capacity 14 t

612

Reefer point

234 plugs - 380 Volt -50 Hz -3 ph

Length

134,44 m overall

125,08 m registered

124,41 m between perpendiculars

Breadth

22,50 m registered

Draught

Summer: 8,71 m

Forecastle

62,54 m

Poop

28,85 m

Freeboard

2.609 mm

Depth

11,30 m moulded

Speed

18,5 knots

Built

2007

Keel laid

14.12.2004

Launch date

24.08.2007

Date of completion

31.10.2007

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1243

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MAK 9 M43 C - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 8.400 KW at 500 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 128 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating Surface: 221,5 m²

1x Thermal oil heater, oil fired - 10,0 bar

Heating Surface: 517,0 m²

Year of manufacture: 2007

Manufacturer: PWT Prozesswärmeträgertechnik GmbH
Max-Weber-Str. 10
25451 Quickborn
Federal Republic of Germany

Electric installations

1x Plant 400 V - 1.155 kVA

1x Plant 400 V - 1.390 kVA

1x Plant 400 V - 1.860 kVA

1x Plant 400 V - 400 kVA

1x Plant 24 V - 170 Ah

1x Plant 24 V - 180 Ah

Shaft generator

1x 1.860 kVA / 1.488 kW

Generators

1x Main diesel generatorset - 1.390 kVA / 1.112 kW

1x Main dieselgeneratorset - 1.155 kVA / 924 kW

Emergency generator

1x Diesel generatorset 400 kVA / 340 kW

Batteries

2x Batteries for start emergency engine each 180 Ah

2x Batteries for UPS Radio each 170 Ah

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster CCP - 750 kW forward

1x Transverse thruster CCP - 450 kW aft

Anchor equipment

3x Anchors weight each 5.250 kg
Chain length: 577,50 m

Tank capacities

Fuel oil: 861 t

Gas oil: 113 t

Fresh water: 128 t

Water ballast: 4.030 t

Cargo gear

Gearless

Crew

17

Manager

Myklebusthaug Management AS
Fonnes Kai
5953 Fonnes
Norway

Operator

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

Owner

Myklebusthaug Shipping AS
5953 Fonnes
Norway
