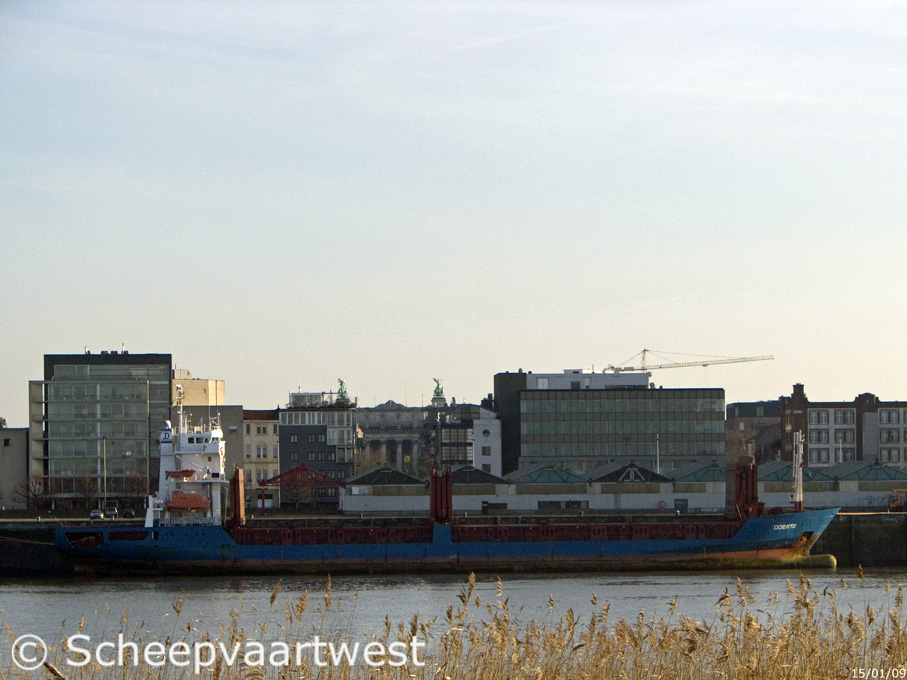

Doerte 01
Antwerpen 15 January 2009



Name

DOERTE

Previous names

1994-1999 Dörte
1999 Mathilda

Type

Containership

IMO-number

9100061

Call sign

V2CG

Flag

Antigua & Barbuda

Previous flag

1994 Germany

Port of registry

St. John's

GT

3.957 t

DWT

5.388 t

NT

2.080 t

Number of 20ft containers

448

Reefer capacity

36

Length

107,98 m overall
100,42 m between perpendiculars

Breadth

16,40 m overall

Draught

Summer: 6,00 m

Freeboard

1.870 mm

Depth

7,05 m

Speed

15,2 knots

Freeboard

Summer: 1.870 mm

Built

1994

Builder

Detlef Hegemann Rolandwerft GmbH & Co. KG,
Bremen
Germany

Yard number

171

Hull material

Steel

Hull type

Single hull

Watertight compartments

8

Continuous decks

2

Main engine

1x Deutz MWM TBD645L9 - 9 cylinder 350 x 330 mm diesel engine - 3.690 kW / 5.014 hp at 600 rpm
Built: 1993
Builder: Deutz Group AG Werk Mannheim - Germany

Propelling system

1x Screw propeller controllable pitch at 168 rpm

Electrical installation

Power voltage: 380 V
Lighting Voltage: 220 V

Shaft generator

1x 600 kW

Diesel generators

2x Main diesel generatorsets each 310 kVA - 248 kW - 361 hp

Emergency generators

1x Diesel generatorset 98 kVA - 78 kW - 111 hp

Cargo holds

2

Bunker capacity

321 t

Cargo gear

Gearless

Manager

Kapitän Manfred Draxl Schiffahrts GmbH & Co. KG MS "DÖRTE"
Haren Ems
Germany

Owner

Kapitan Manfred Draxl
Haren Ems
Germany
