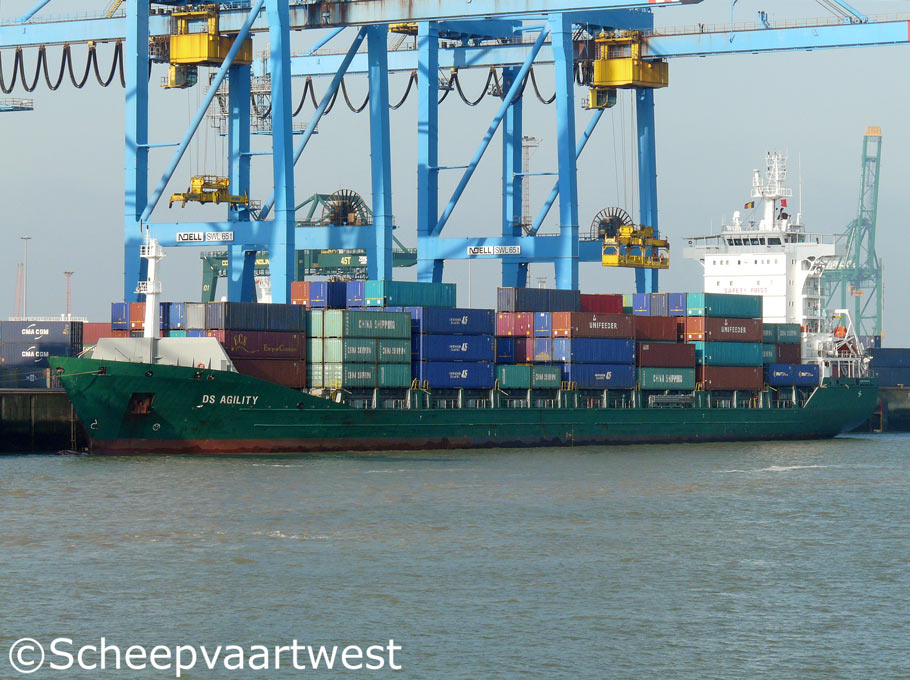

DS Agility 04
Zeebrugge 29 january 2011



Name

DS AGILITY

Previous names

SITC Ability

Type

Cellular containership

IMO-number

9395616

Call sign

A8LD9

Flag

Liberia

Port of registry

Monrovia

GT

9.940 t

DWT

13.856 t

NT

5.020 t

Number of 20ft containers

1118

Container capacity 14t

720

Reefer capacity

220

Length

147,87 m overall

141,37 m registered

Breadth

23,25 m registered

Draught

Summer: 8,50 m

Depth

11,50 m moulded

Speed

Max.: 19,6 knots

Built

2008

Keel laid

28.12.2004

Launch date

27.09.2007

Date of completion

25.04.2008

Builder

China Changjiang Shipping Group Qingshan Shipyard
Chuan Chang Xin Cun Industry Port, Qingshan District
430082 Wuhan , Hubei
People's Republic of China

Yard number

QS2004 0324

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN 7 L58/64 - 4 stroke single acting 7 cylinder580 x 640 mm diesel engine - output 9.730 kW at 428 rpm

Year of manufacture: 2007

Manufacturer: MAN Diesel & Turbo SE

Propeller

1x Controllable pitch propeller - aft at 131 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 141,5 m²

Year of manufacture: 2007

Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH
Hirtscheider Str. 13-15
57647 Nistertal
Federal Republic of Germany

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 285,0 m²

Year of manufacture: 2007

Manufacturer: Aalborg Industries A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x Plant 450 V - 712,5 kVA

1x Plant 450 V - 712,5 kVA

1x Plant 450 V - 712,5 kVA

1x Plant 450 V - 2.500 kVA

1x Plant 450 V - 687,5 kVA

1x Plant 24 V - 120 Ah

1x Plant 24 V - 135 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Shaft generator

1x 2.500 kVA

Generators

3x Main diesel generatorsets each 712,5 kVA

Emergency generator

1x Diesel generatorset 687,5 kVA

Batteries

1x Battery for Diesel control 300 Ah

2x Batteries for UPS Radio each 200 Ah

1x Battery for UPS Navigation 135 Ah

1x Battery for start emergency engine 120 Ah

Compressed air receiver

2x Receivers each 1.250 litres - 30,0 bar

1x Receiver 1.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster - 700 kW, forward

Anchor equipment

3x Anchors weight each 6000 kg
Chain length: 577,50 m

Cargo gear

Gearless

Crew size

22

Crew

17

Manager

DS-Schiffahrt GmbH & Co. KG
Domstr. 17
20095 Hamburg
Federal Republic of Germany

Registered owner

DS-Rendite-Fonds Nr. 132 DS Activity und DS Agility GmbH & Co. Containerschiffe KG
Stockholmer Allee 53
44269 Dortmund
Federal Republic of Germany
