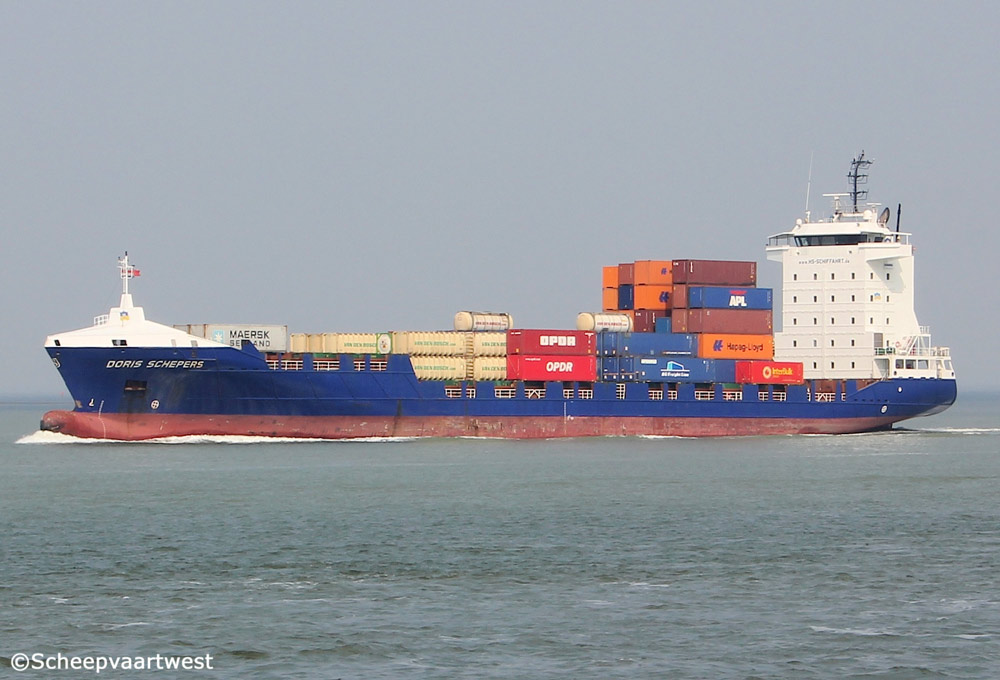

Doris Schepers 01

Westerschelde 04 September 2014



Name

DORIS SCHEPERS

Type

Containership

IMO-number

9404065

Call sign

V2DS2

Flag

Antigua & Barbuda

Previous flag

Germany - Call sign: DCZR2

Port of registry

St. John's

GT

7.852 t

DWT

Summer: 9.321 t

NT

3.363 t

Number of 20ft containers

803

Container capacity 14t

517

Reefer capacity

180

Length

140,60 m overall

130,60 m between perpendiculars

Breadth

21,80 m

Draught

Max.: 7,34 m

Depth

9,50 m moulded

Speed

18,0 knots

Built

2007

Keel laid

29.03.2006

Launch date

09.03.2007

Date of completion

24.07.2007

Builder casco

Santierul Naval Damen Galati S.A.
Galati
Romania

Yard number: 1108

Builder completion

Damen
Gorinchem
The Netherlands

Yard number: 8301

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm diesel engine - 8.400 kW at 500 rpm

Year of manufacture: 2007

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 140 rpm

Boilers

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 28,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 126 m²

Year of manufacture: 2007

Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH
Hirtscheider Str. 13-15
57647 Nistertal

Federal Republic of Germany

Electric installations

1x Plant 450/230 V - 530 kVA

1x Plant 450/230 V - 530 kVA

1x Plant 450 V - 2.000 kVA

1x Plant 450 V - 268,75 kVA

1x Plant 24 V - 150 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 230 Ah

Shaft generator

1x 1.600 kW / 2.000 kVA

Generators

2x Main diesel generatorsets each 420 kW / 525 kVA

Emergency generator

1x Diesel generatorset 215 kW / 268,75 kVA

Batteries

1x Battery for UPS navigation 230 Ah

2x Batteries for start emergency engine each 200 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 700 kW, forward

1x Transverse thruster - 500 kW, aft

Number of hatches

3

Anchor equipment

3x Anchors weight each 4.890 kg

Chain Length: 550,00 m

Cargo gear

Gearless

Crew

15

Manager

HS Bereederung (HS management)
Thyssenstraße 16
Haren Ems
Germany

Owner

HS Schiffahrt
Haren Ems
Germany

Registered owner

HS Schiffahrts GmbH & Co. KG MS “Doris Schepers”
Haren-Ems
Germany

Latest data adjustment

27 December 2014
