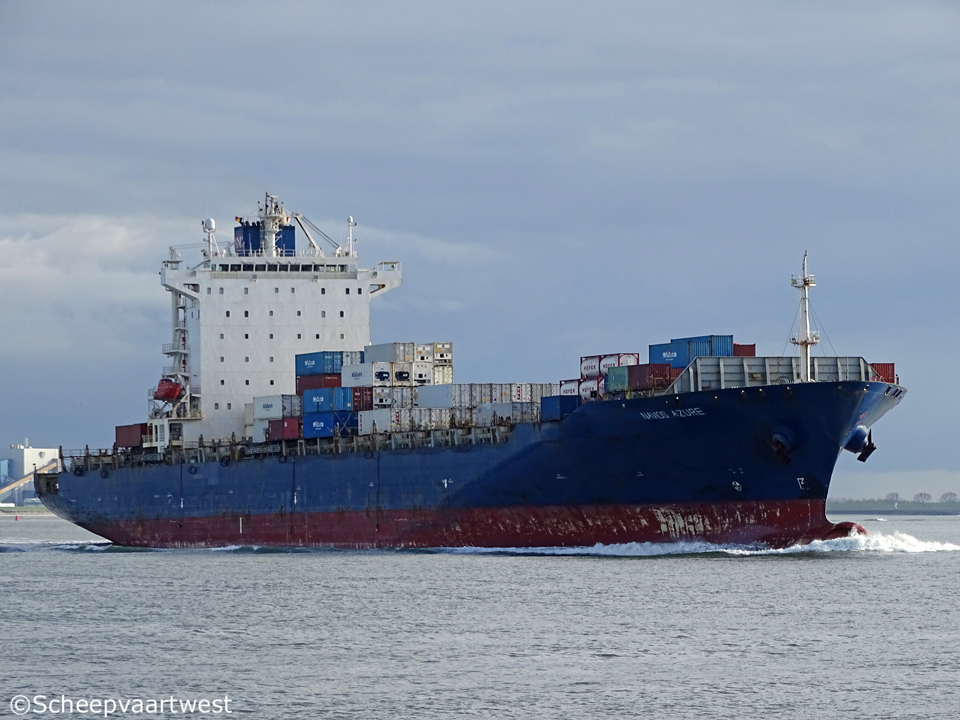

Navios Azure 01

Westerschelde 24 November 2017

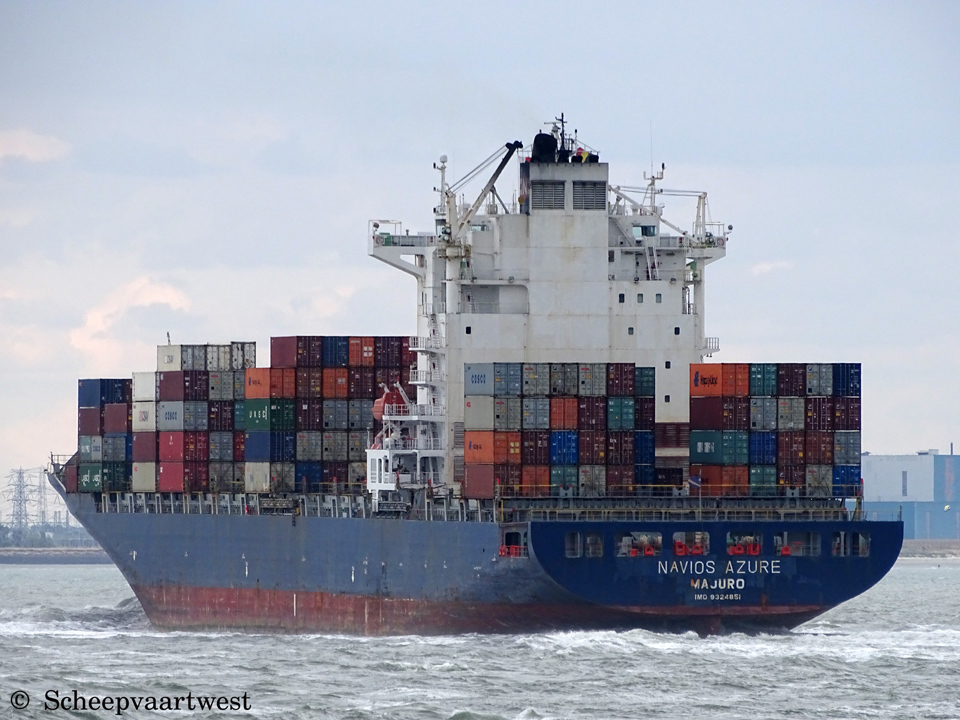

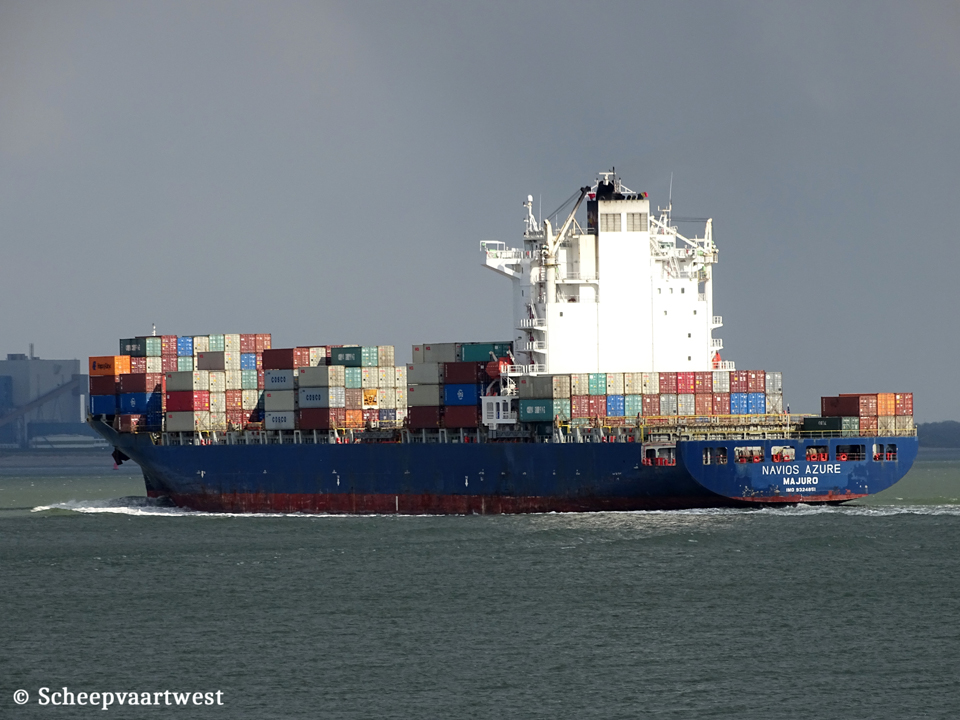

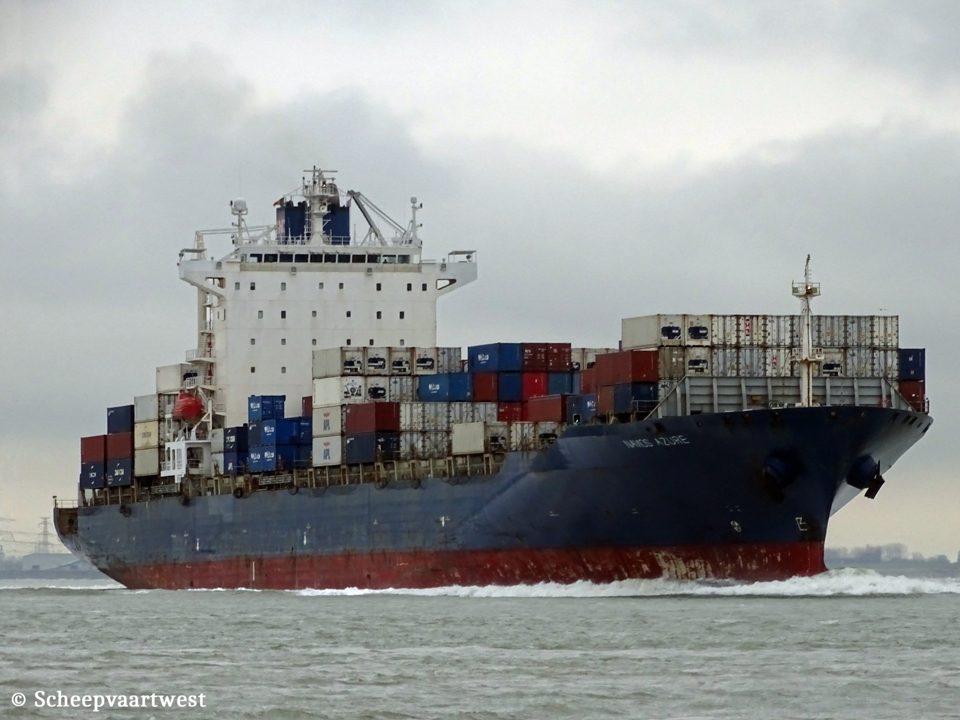

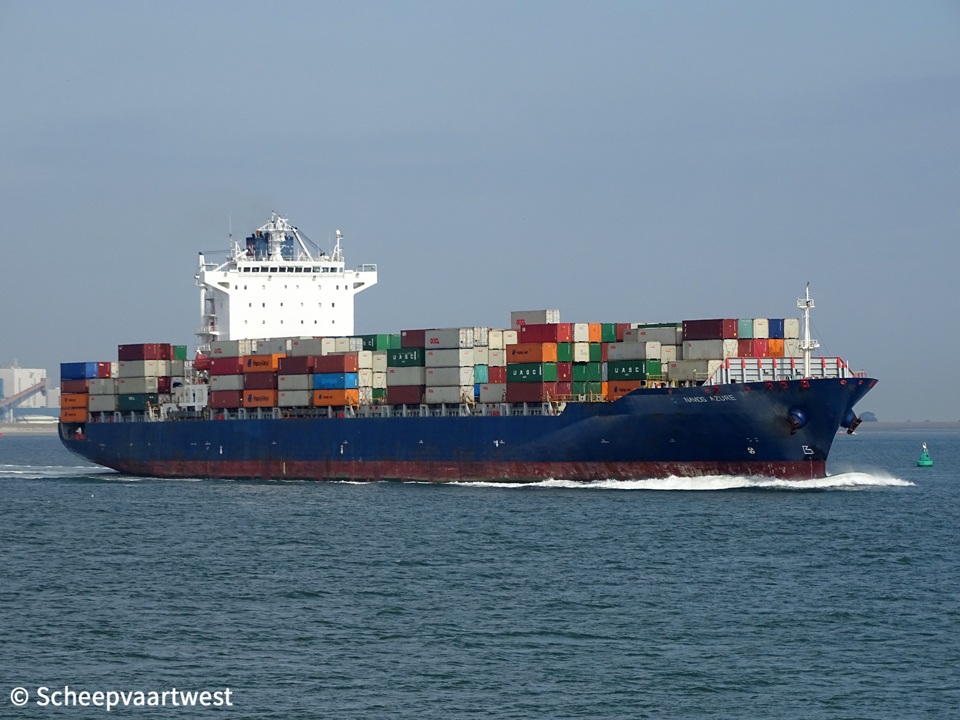

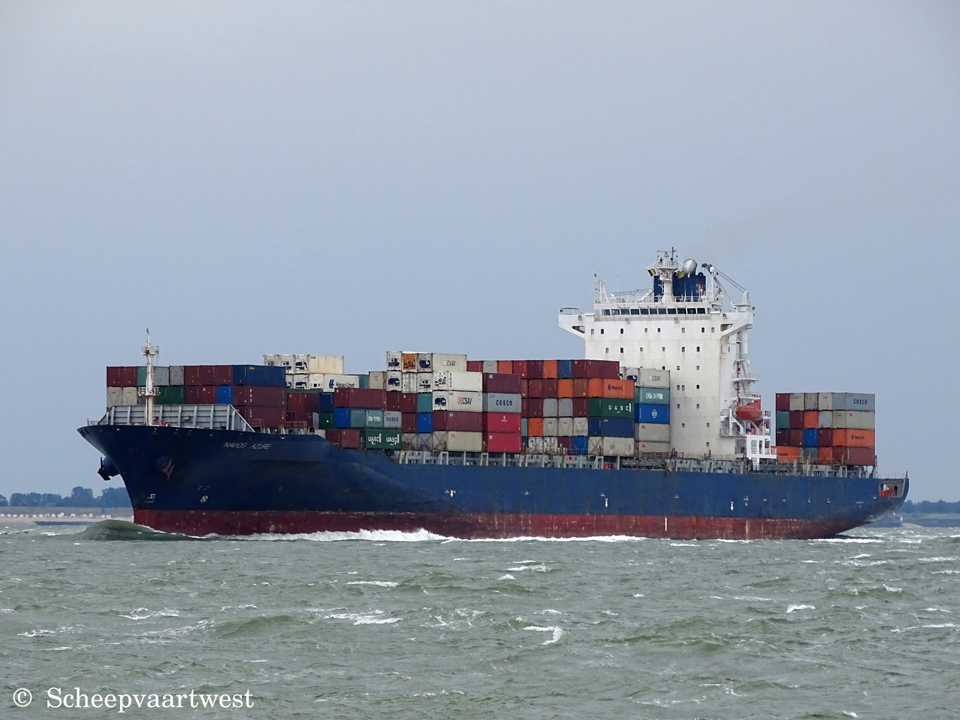

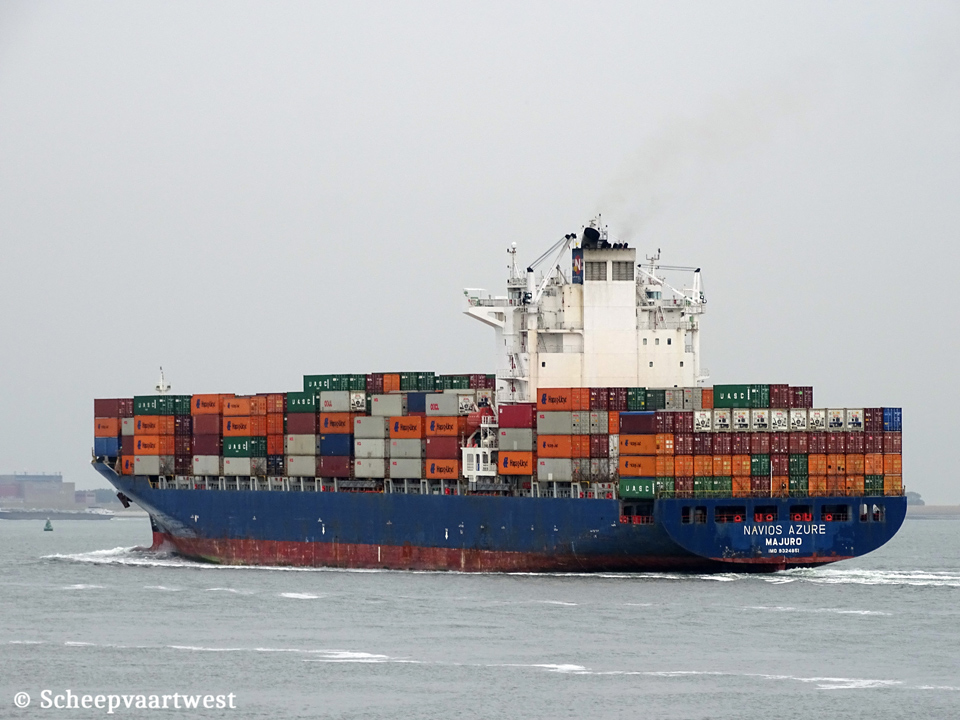

Navios Azure 02   Navios Azure 03   Navios Azure 04   Navios Azure 05   Navios Azure IMO 9324851 06   Navios Azure IMO 9324851 07
Westerschelde 10/08/18 Westerschelde 10/08/18 Westerschelde 11/0//19 Westerschelde 10/07/19   Westerschelde 13/04/19   Westerschelde 20/01/18

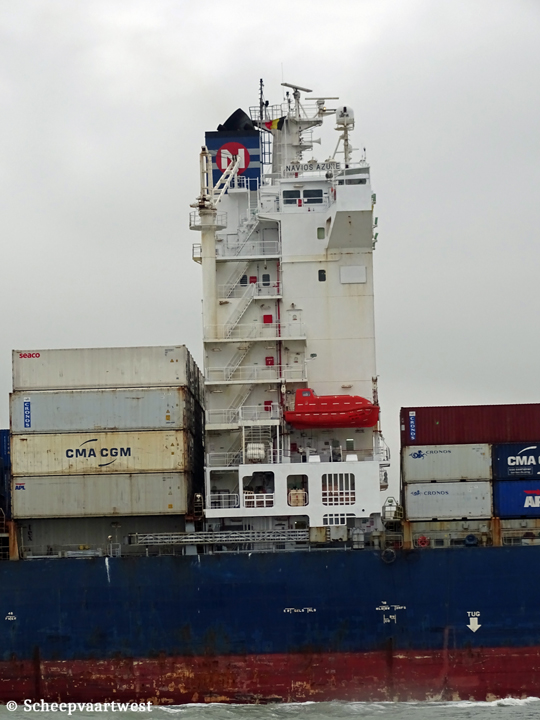

Navios Azure IMO 9324851 08
WS 20/01/18


Name

NAVIOS AZURE

Previous names

2007 - 2007 Marte Rickmers

2007 - 2017 CMA CGM Azure

2017 - 2017 Marte Rickmers

Type

Cellular containership - Handysize

Panamax

IMO-number

9324851

Call sign

V7WK3

Flag

Marshall Island

Port of registry

Majuro

Previous flags

2007 - 2017 Republic of Singapore - Call sign: 9V8055

GT

39.906 t

Suez: 41.504 t

DWT

Summer: 50.629 t

NT

24.504 t

Suez: 24.898 t

Number of 20ft containers

In hold: 1.586

On deck: 2.664

Total: 4.250

Container capacity 14t

2.805

Reefer capacity

400

Length

260,05 m overall

246,04 m between perpendiculars

Breadth

32,30 m extreme

32,25 m moulded

Draught

12,60 m

Keel to mast end

54,93 m

Depth

19,30 m

Speed

Max: 24,5 knots

Built

2007

Keel laid

30/09/2006

Launch date

18/04/2007

Date of completion

11/07/2007

Builder

Dalian Shipyard, China Shipbuilding Heavy Ind. Corp.

China

Yard number

CS4250-03

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W/Doosan 8K90MC-C - 2 stroke single acting 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW/ 49.707 hp at 104,0 rpm

Builder: Doosan Engine Co Ltd - South Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1x Auxiliary boiler, composite Mission OC

Generators

4x MAN SXD 9L21/31 - 4 stroke 9 cylinder 210 x 310 mm diesel engines each 1.800 kW connected with generators each 1.700 kW / 450 Volt 60 Hz

Emergency generator

1x Sisu 645 DSBAG diesel generatorset 200 kW

Bow thruster

1x 1.600 kW / 2.175 bhp, forward

Number of holds

7

Tank capacities

Ballast: 11.665,1 m³

Anchor equipment

Length: 687,50 m

Diameter: 87 mm

Cargo gear

Gearless

ISM & commercial manager

Navios Containers Management Inc.

85, Akti Miaouli

185 38 Piraeus

Greece

Registered owner

Bertyl Ventures Co

Majuro

Marshall Islands

Previous owner

Marte Rickmers Navigation Ltd.

Ocean Wood Tang Shipping Ltd

Latest data adjustment

26 August 2024
