Westerschelde 05 January 2018 |
 |
 |
 |
 |
|||
| Westerschelde 05/01/18 | Westerschelde 05/01/18 | Westerschelde 22/12/17 | Westerschelde 22/12/17 | |||
|
Name |

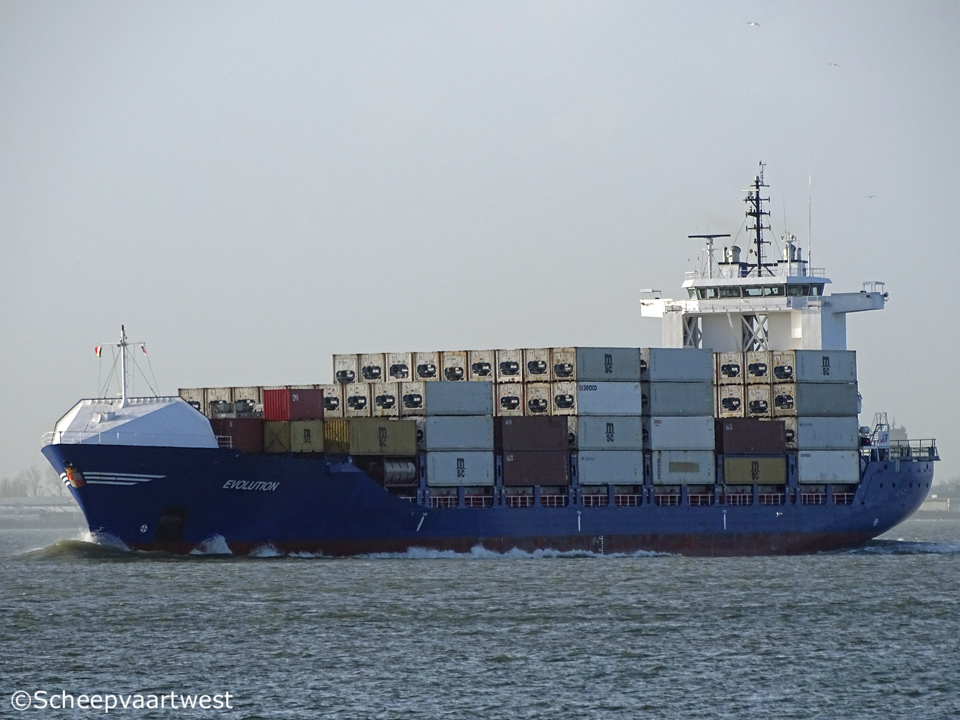

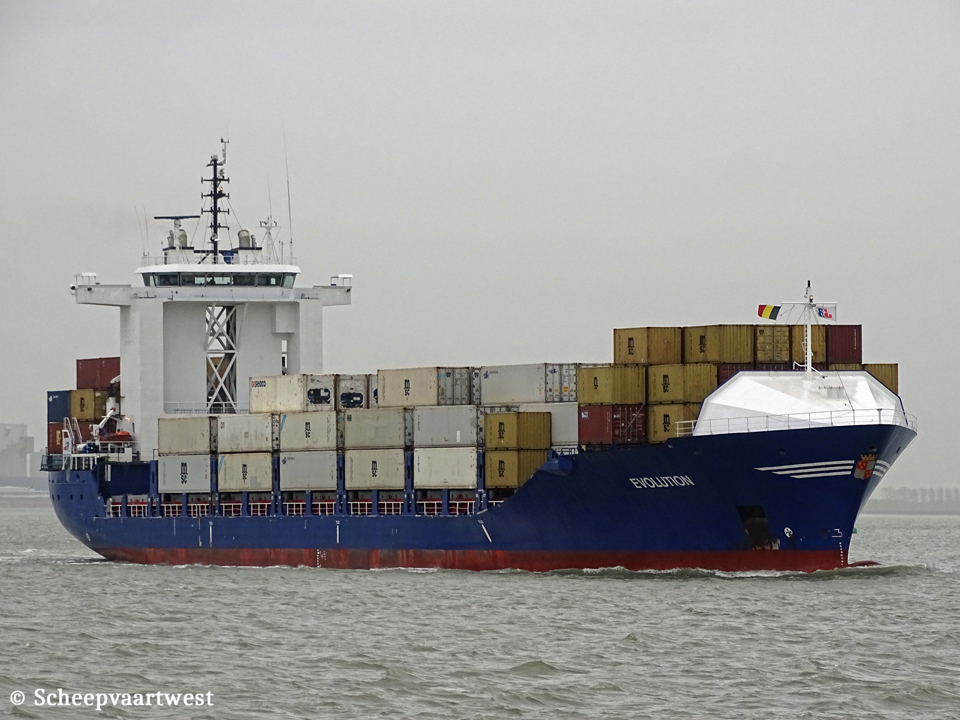

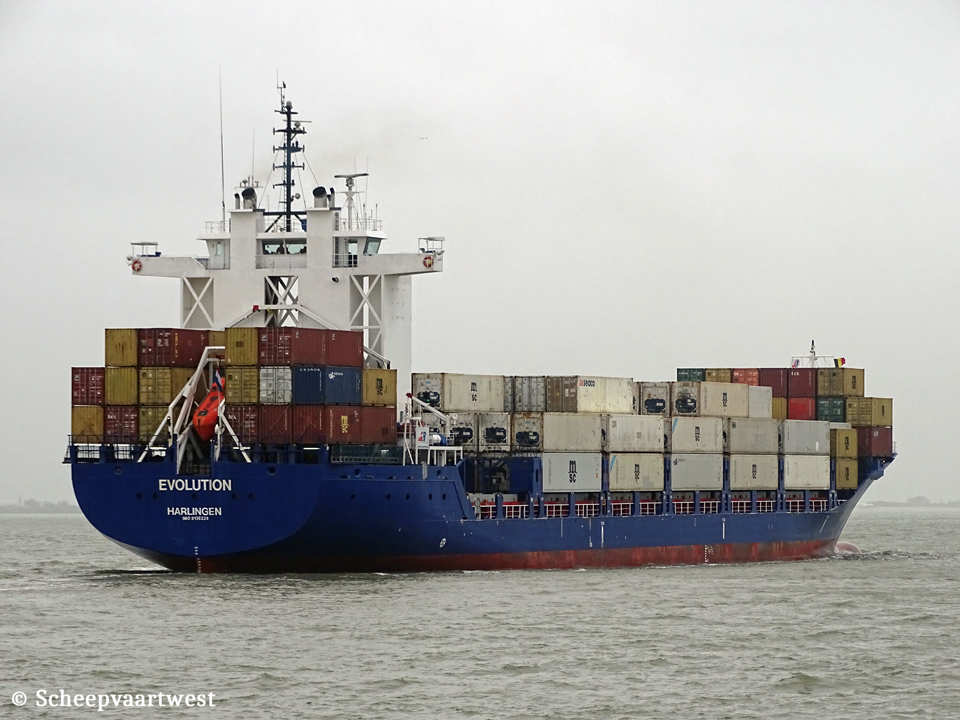

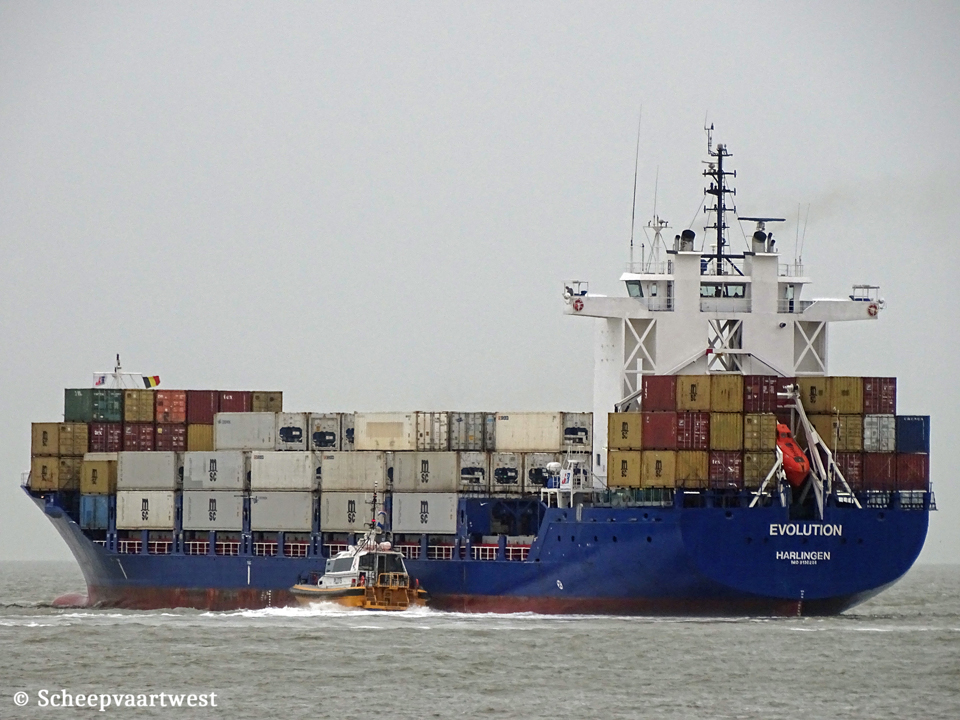

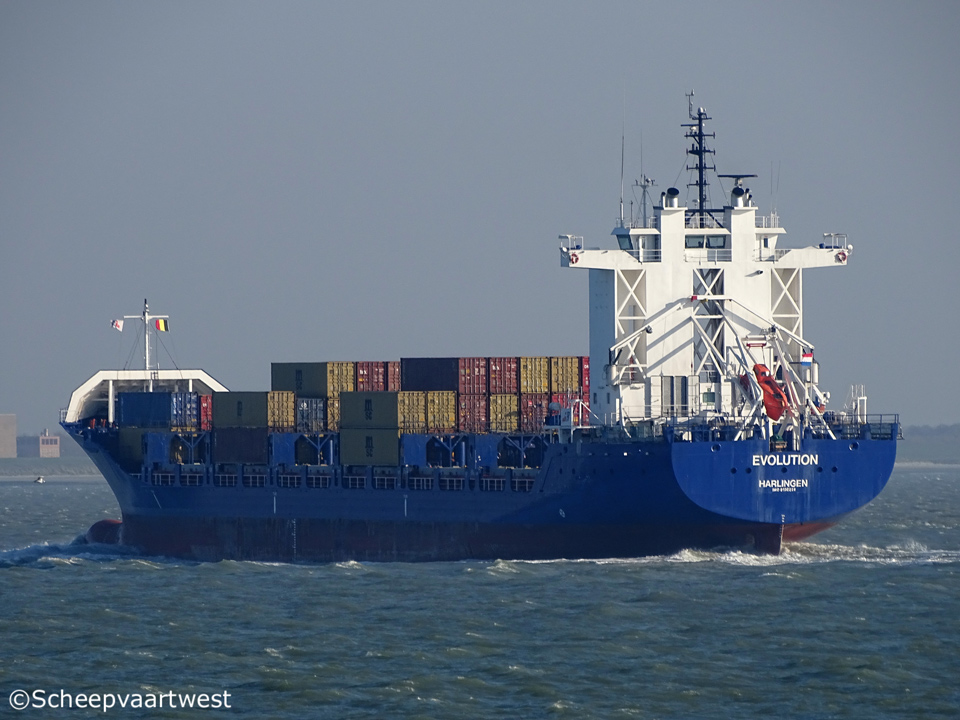

EVOLUTION |
|
Previous names |
1996 - 11/2004 Sea Baltica 11/2004 - 07/2005 Evolution 07/2005 - 11/2008 Maersk Roscoff |
|
Type |
Fully cellular containership - Feeder |
|
IMO-number |
9136228 |
|
Call sign |
PHHV |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
Previous flags |
1996 - 2004 The Netherlands, Lemmer - Cal sign: PHHV |
|
GT |
9.191 t |
|
DWT |
Summer: 13.248 t |
|
NT |
5.284 t |
|
Number of 20ft containers |
1.050 |
|
Number of 40ft containers |
512 + 26 TEU |
|
Container capacity 14t |
750 |
|
Reefer points |
In hold: 56 On deck: 122 Total: 178 |
|
Length |
145,70 m overall 135,92 m between perpendiculars |
|
Breadth |
23,39 m extreme |
|
Draught |
8,78 m |
|
Depth |
11,70 m |
|
Speed |
Service: 19,0 knots |
|
Built |
1996 |
|
Keel laid |
01/12/1995 |
|
Launch date |
28/09/1996 |
|
Date of completion |
03/12/1996 |
|
Builder |
IJsselwerf B.V. Capelle aan den IJssel The Netherlands |
|
Yard number |
268 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x Wärtsilä 8L38 - 4 stroke single acting 8 cylinder 380 x 475 mm combustion engines Mcr 5.280 kW at 600 rpm Total 10.560 kW Manufacturer: Stork-Wärtsilä Diesel B.V., Zwolle - The Netherlands |
|
Propellers |
1x KAMEWA Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired KH 0,5/25 1x Thermal oil heater, exhaust heated AKV 0.8/40 |
|
Shaft generator |
1x 2.000 kW |
|
Generators |
2x 56RMPTA main diesel generatorsets each 570 kW |
|
Emergency generator |
1x 56RMPTA main diesel generatorset 570 kW |
|
Bow thruster |
1x KAMEWA controllable pitch propeller 1.000 kW, forward 1x KAMEWA controllable pitch propeller 750 kW, aft |
|
Hatch cover type |
Pontoon type |
|
Tank capacities |
HFO: 1.006,1 m³ Gas oil: 125,3 m³ Fresh water: 108 m³ Ballast: 5.607,1 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Manager |
JR Ship Management B.V. Korte Lijnbaan 25 8861 NS Harlingen The Netherlands |
|
Previous managers |
|
|
Registered owner |
Evolution Shipping B.V. The Netherlands |
|
Previous names & owners |
|
|
Renamed |
02/2019 Bal Boan Republic of panama, Panama Cvity - Call sign: 3EDD Manager: Qingdao Pengteng International Ship Management Co. Ltd., Shandong - China Owner: Boan Shipping Enterprise Company, Qingdao - China |
|
Latest data adjustment |
30 May 2019 |
