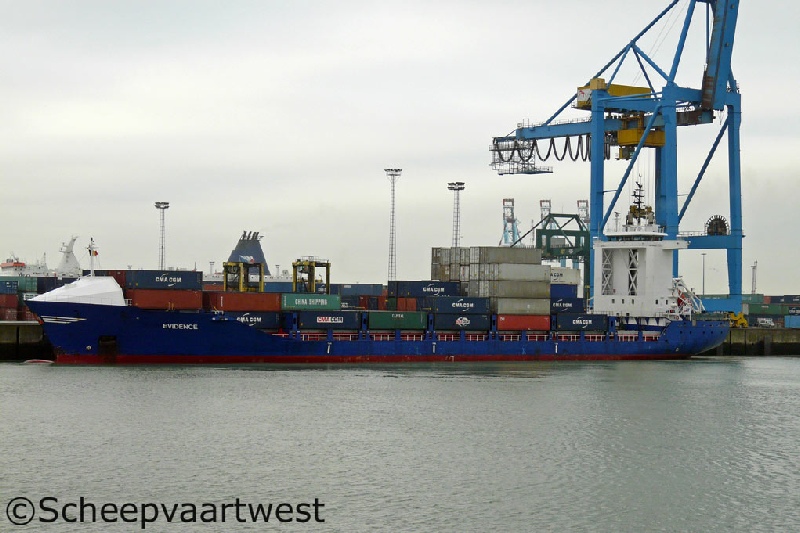

| Zeebrugge 22 December 2011 |
 |

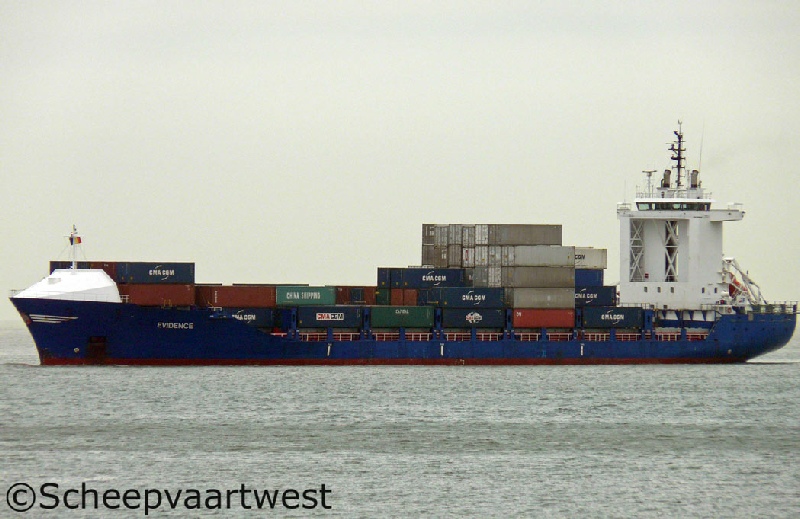

| Zeebrugge 22/12/11 |
|
Name |
EVIDENCE |
|
Previous names |
05.1997-2005 Sea Nordica 2005-07.2005 Evidence 07.2005 - 03.2009 Maersk Rauma 03.2009 - 05.2017 Evidence |
|
Type |
Cellular containership |
|
IMO-number |
9136230 |
|
Call sign |
PCDA |
|
Flag |
The Netherlands |
|
Port of registry |
Harlingen |
|
Previous flags |
1997 - 2005 The Netherlands, Lemmer - Call sign: PCDA 2005 - 2017 The Netherlands, Harlingen - Call sign: PCDA |
|
GT |
9.191 t |
|
DWT |
13.109 t |
|
NT |
5.284 t |
|
Number of 20ft container |
1.044 |
|
Reefer capacity |
178 |
|
Length |
145,45 m overall 135,92 m registered |
|
Breadth |
13,80 m |
|
Draught |
Summer: 8,78 m |
|
Forecastle |
21,45 m |
|
Poop |
15,65 m |
|
Depth |
11,70 m moulded |
|
Speed |
18,5 knots |
|
Built |
1997 |
|
Keel laid |
12.12.1995 |
|
Launch date |
25.03.1997 |
|
Date of completion |
14.05.1997 |
|
Builder |
YVC Ysselwerf B.V. |
|
Yard number |
269 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
2x Stork-Wärtsilä SWD 8L38 - 4 stroke 8 cylinder 380 x 475 mm diesel engine - each 5.280 kW total 10.560 kW at 600 rpm Year of manufacture: 1997 Manufacturer: Stork-Wärtsilä Diesel B.V. |
|
Propeller |
1x Controllable pitch propeller - aft at 108 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating Surface: 29,0 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating Surface: 105,0 m² Year of manufacture: 1996 Manufacturer: Bertrams Heatec AG |
|
Electric installations |
2x Plant 440 V - 645 kVA 1x Plant 440 V - 2.500 kVA 1x Plant 440 V - 675 kVA |
|
Shaft generator |
1x 2.500 kVA / 2.000 kW |
|
Generators |
1x Main diesel generatorset 645 kVA 1x Main diesel generatorset 675 kVA |
|
Emergency + Harbour gen. |
1x Diesel generatorset 645 kVA |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x 1.000 kW, forward |
|
Stern thruster |
1x 750 kW |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
15 |
|
Crew |
11 |
|
Manager |
JR Shipping |
|
Previous managers |
05.1997 - 11.2001 Rederij Master Lemmer B.V., Lemmer - The Netherlands 11.2001 - 2005 Bore Shipowners B.V., Rotterdam - The Netherlands 2005 - 05.2017 JR Shipping B.V., Harlingen - The Netherlands |
|
Owner |
Evidence Shipping B.V. |
|
Previous names & owners |
05.1997 - 11.2001 Sea Nordica - Rederij Madora VI B.V., Lemmer - The Netherlands 11.2001 - 2005 Sea Nordica - Bore Nordica B.V., Rotterdam - The Netherlands 2005 - 07.2005 Evidence - Evidence Shipping C.V., Harlingen - The Netherlands 07.2005 - 03.2009 Maersk Rauma - Evidence Shipping C.V., Harlingen - The Netherlands 03.2009 - 05.2017 Evidence - Evidence Shipping C.V., Harlingen - The Netherlands |
|
Renamed |
05.05.2017 Xiang Shun Republic of Panama, Panama City - Call sign: 3EJU8 Owner: Sofast Shipping Ltd. |
|
Latest data adjustment |
11 November 2017 |
