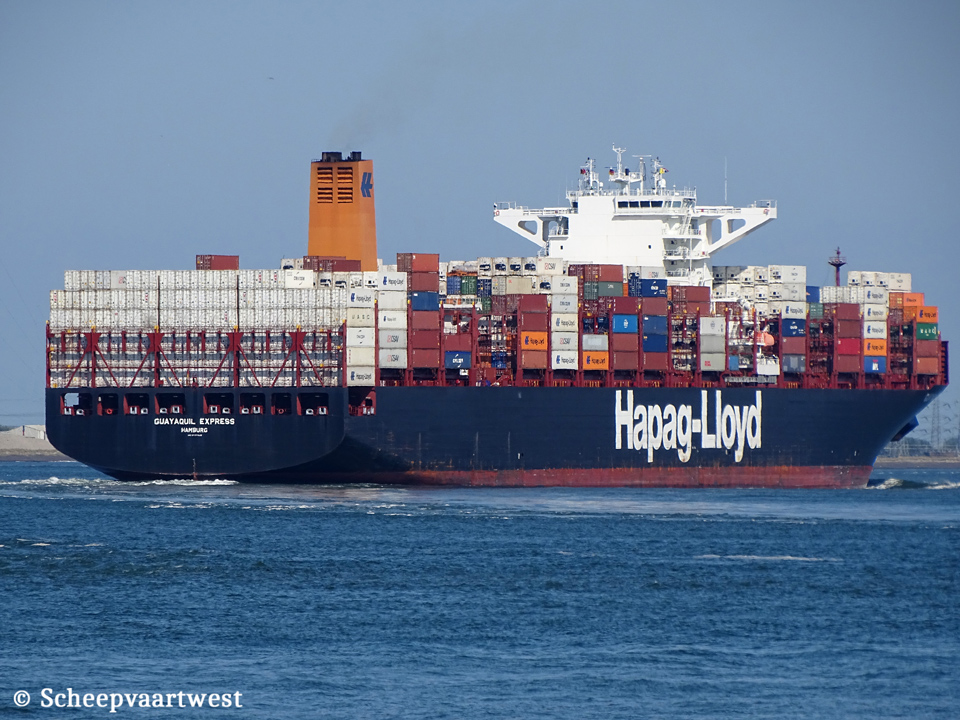

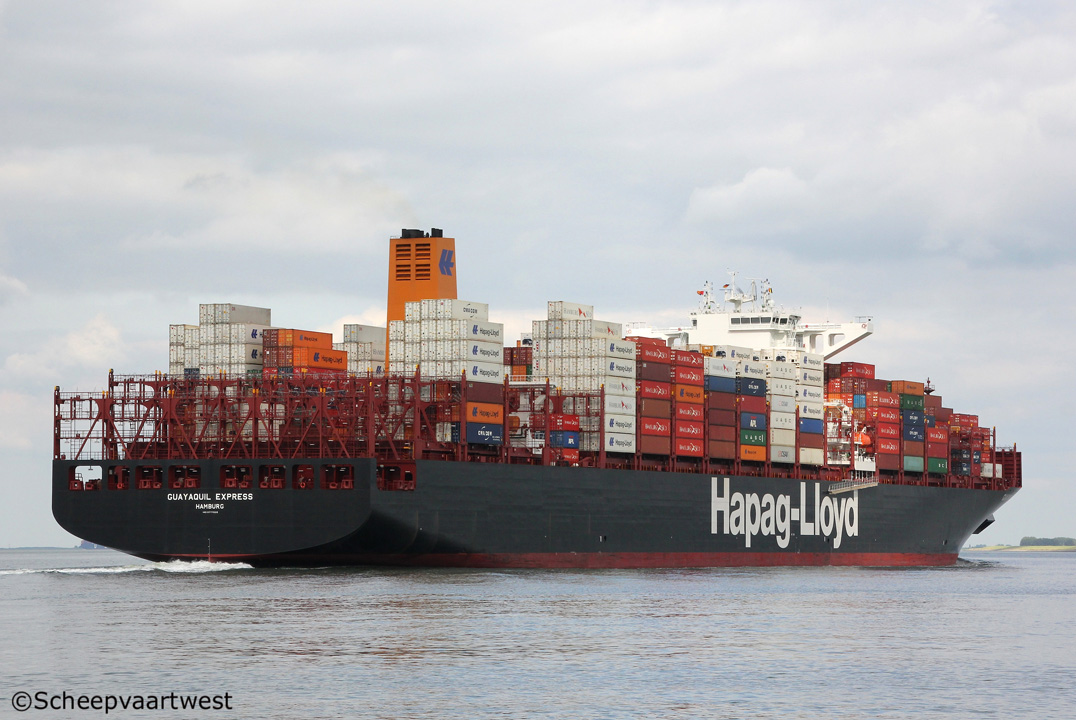

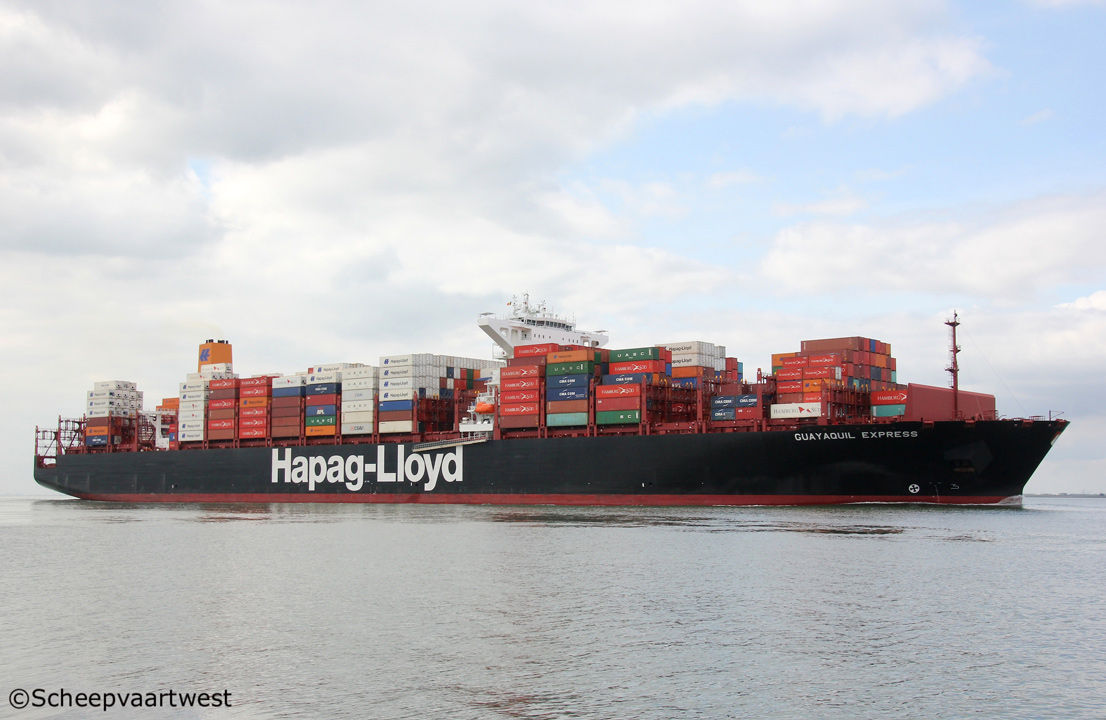

Westerschelde 22 August 2017 |
 |
 |
 |
 |
 |
 |
|||||

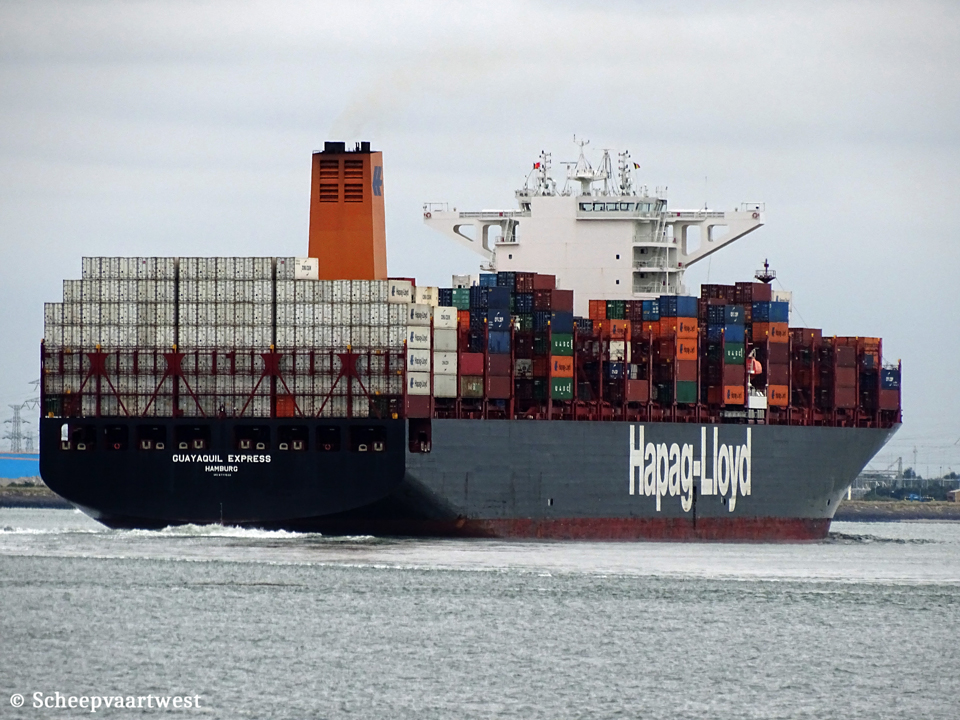

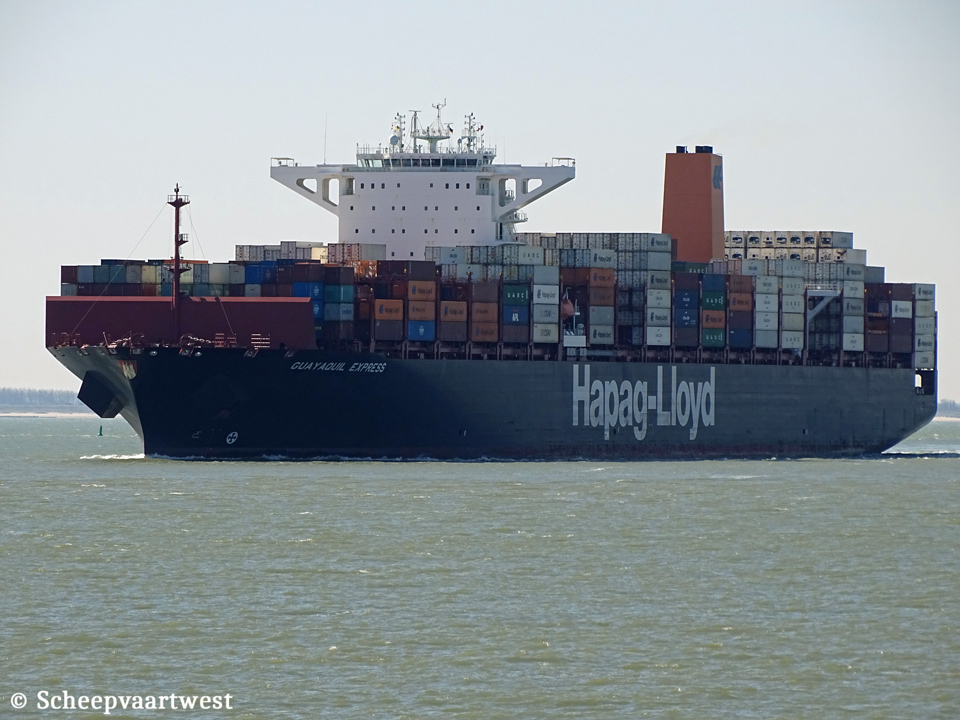

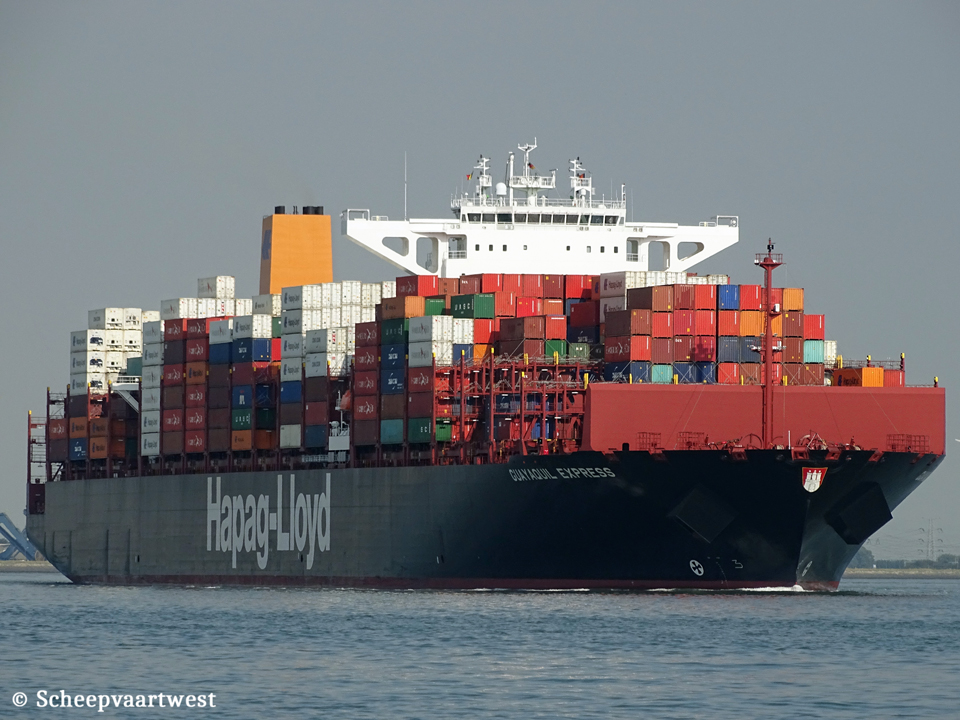

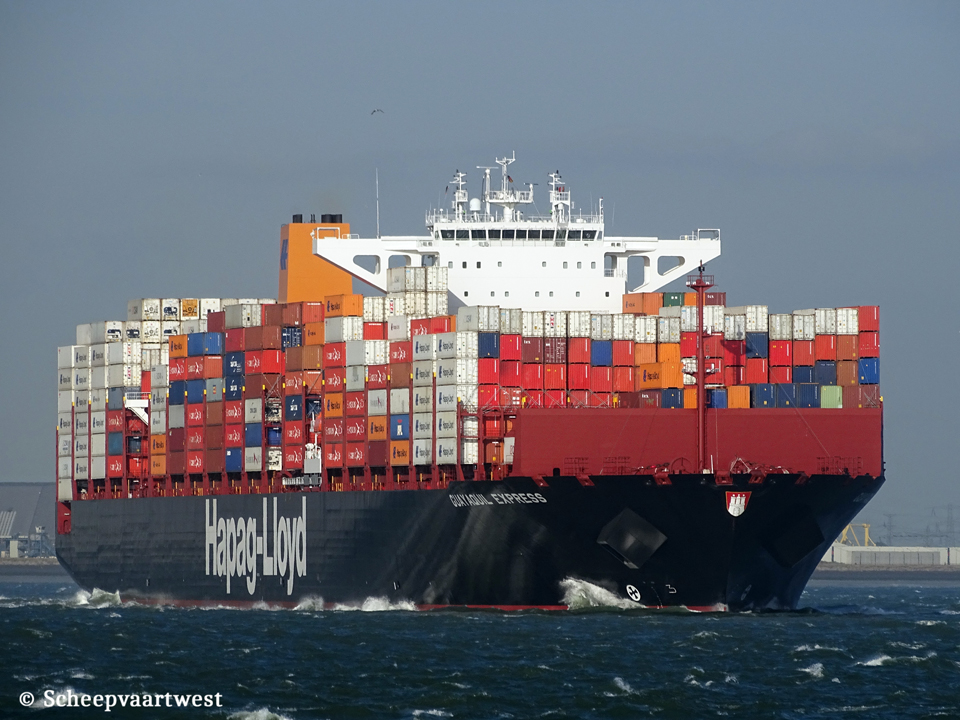

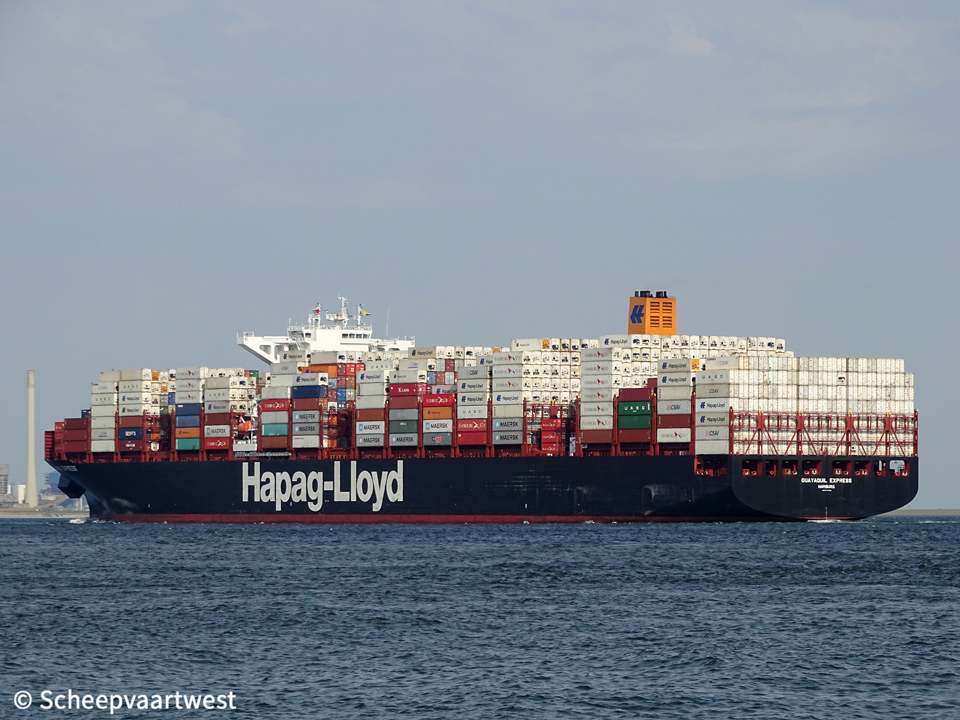

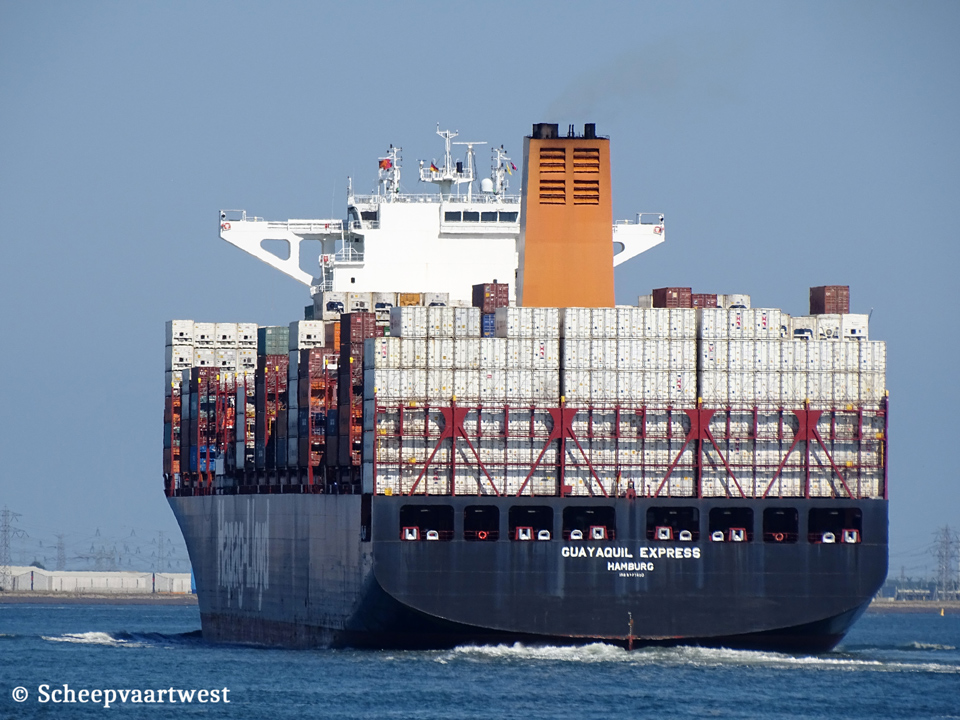

| Westerschelde 24/03/20 | Westerschelde 11/11/18 | Westerschelde 03/07/18 | Westerschelde 25/05/20 | Terneuzen 12/08/17 | Terneuzen 12/08/17 | |||||
 |
 |
|||||||||

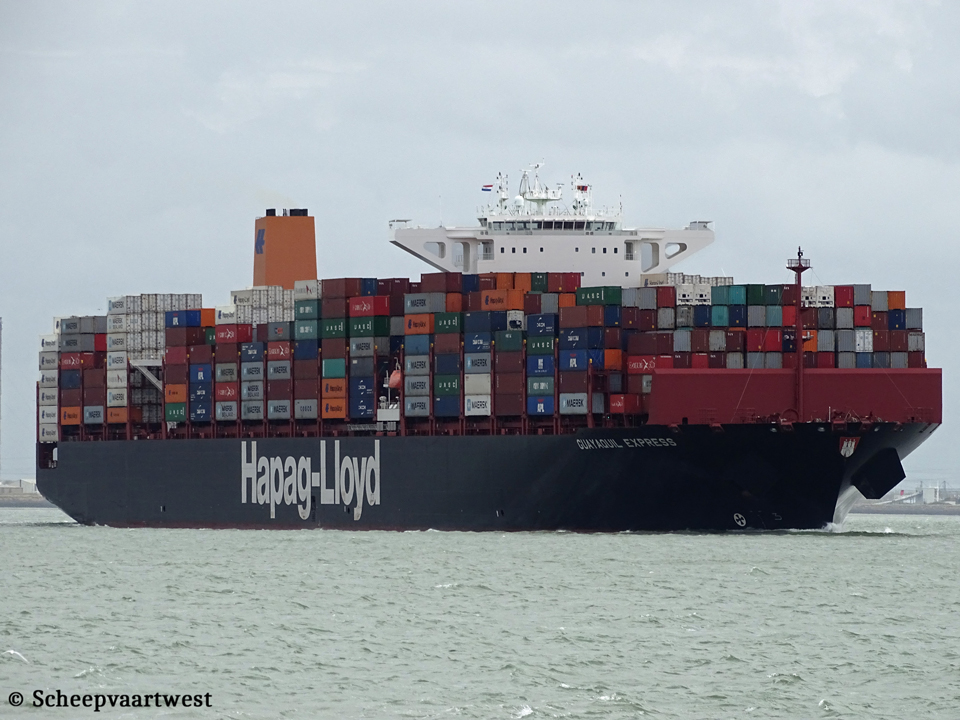

| Westerschelde 16/09/19 | Westerschelde 25/05/20 | |||||||||
|
Name |
GUAYAQUIL EXPRESS |
|
Type |
Cellular containership |
|
IMO-number |
9777620 |
|
Call sign |
DJQC2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
118.945 t registered |
|
DWT |
123.587 t |
|
NT |
52.240 t registered |
|
Number of 20ft containers |
10.593 |
|
Reefer capacity |
2.100 |
|
Length |
333,18 m overall 318,00 m between perpendiculars |
|
Breadth |
48,20 m extreme |
|
Draught |
14,00 m |
|
Depth |
26,80 m |
|
Speed |
Maw: 22,8 knots Service: 21,0 knots |
|
Built |
2017 |
|
Keel laid |
01/12/2015 |
|
Launch date |
03/12/2016 |
|
Date of completion |
02/02/2017 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. South Korea |
|
Yard number |
S835 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Main engine |
1x MAN-B&W/Hyundai 7S90ME-C9&10 - 2 stroke 7 cylinder 900 x 3.260 mm combustion engine 34.224 kW / 46.532 hp at 80,0 rpm |
|
Propellers |
1x Fixed pitch mono-block propeller Manufacturer: Hyundai Heavy Ind. |
|
Boilers |
1x Auxiliary boiler, composite (Composite Boiler) Manufacturer: SAACKE VKK Marine Boilers GmbH |
|
Generators |
1x Daihatsu 6DE-33 main diesel generatorset 3.500 kW 4x Daihatsu 8DE-33 main diesel generatorsets each 4.700 kW Manufacturer: Daihatsu Diesel Mfg. Co., Ltd. Moriyama Factory |
|
Emergency generator |
1x Doosan 222 diesel generatorset Manufacturer: Doosan Infracore Co., Ltd. |
|
Bow thruster |
3.000 kW |
|
Tank capacities |
Ballast: 31.101,8 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 117 mm |
|
ISM & commercial manager |
Hapag-Lloyd Aktiengesellschaft Hapag-Lloyd Haus, Ballindamm 25 20095 Hamburg Germany |
|
Registered owner |
Hapag-Lloyd Aktiengesellschaft Hapag-Lloyd Haus, Ballindamm 25 20095 Hamburg Germany |
|
Latest data adjustment |
05 November 2022 |
