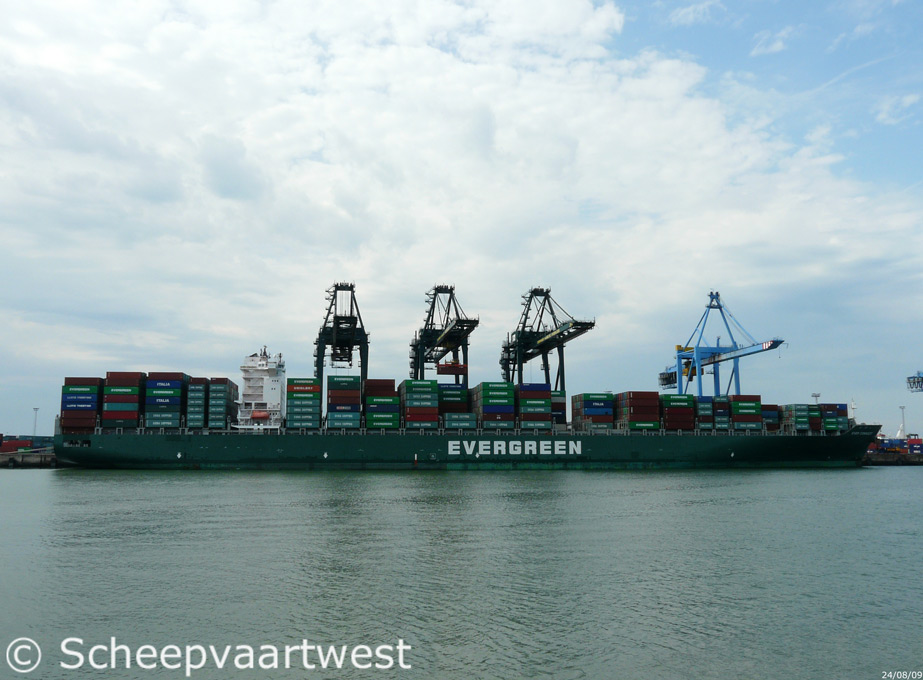

Ever Conquest - IMO 9293818

Name

EVER CONQUEST

Type

Cellular containership

IMO-number

9293818

Call sign

DDZD2

Flag

Germany

Port of registry

Hamburg

GT

90.449 t

DWT

100.909 t

NT

55.452 t

Number of 20ft containers

8.084

Reefer capacity

700

Length

333,99 m overall

319,00 m between perpendiculars

320,62 m registered

Breadth

42,80 m registered

Draught

Summer: 14,50 m

Forecastle

160,03 m

Bridge

149,631 m

Poop

10,40 m

Freeboard

4,875 m

Depth

24,60 m

Speed

25,2 knots

Built

2006

Keel laid

21.11.2005

Launch date

26.01.2006

Date of completion

07.04.2006

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje , Gyeongsangnam-do 656-710
Republic of Korea

Yard number

1528

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

11

Continuous decks

2

Main engine

1x Sulzer 12RTA96C-B - 2 stroke single acting 12 cylinder 960 x 2.500 mm diesel engine - 68.640 kW

Year of manufacture: 2005

Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon , Kyungnam 641-370
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 10,0 bar
Heating surface: 40,14 m²

1x Steam boiler, exhaust gas heated - 10,0 bar
Heating surface: 362,0 m²

Year of manufacture: 2005

Manufacturer: Aalborg Industries Ltd.
86 Guangzhou Road North Jiaozhou
266300 Qingdao , Shandong
People's Republic of China

Electric installations

1x 6.600/225 V - 15.281,25 kVA

1x 450 V - 625 kVA

1x 24 V - 160 Ah

1x 24 V - 200 Ah

1x 24 V - 400 Ah

1x 110 V - 125 Ah

Generators

3x MAN-B&W 7L27/38 main diesel generatorsets each 2.195 kW / 2.743,75 kVA

2x MAN-B&W 9L27/38 main diesel generatorsets each 2.820 kW / 3.525 kVA

Emergency + Harbour gen.

1x Diesel generatorset 625 kVA / 500 kW

Batteries

1x Battery for UPS Radio 200 Ah

2x Batteries for automation each 160 Ah

Compressed air receivers

2x Receivers, each 20.000 litres- 33,0 bar

1x Receiver 500 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver150 litres - 8,8 bar

Bow thruster

1x Transverse thruster - 2.500 kW, forward

Anchor equipment

3x Anchors weight each 18.800 kg
Chain length: 742,50 m

Cargo gear

Gearless

Crew

22

Manager

NSB Niederelbe Schiffahrts GmbH & Co. KG
Harburger Str. 47-51
21614 Buxtehude
Federal Republic of Germany

Operator

Evergreen

Owner

Conti 17. Container Schiffahrts- GmbH & Co. KG MS "CONTI CONQUEST"
Paul-Wassermann-Str. 5
81829 München
Federal Republic of Germany
