| Zeebrugge 05 January 2010 |
 |
 |
|
| Zeebrugge 05/01/10 | Zeebrugge 05/01/10 |
|
Name |
EVER CHARMING |
|
Location |

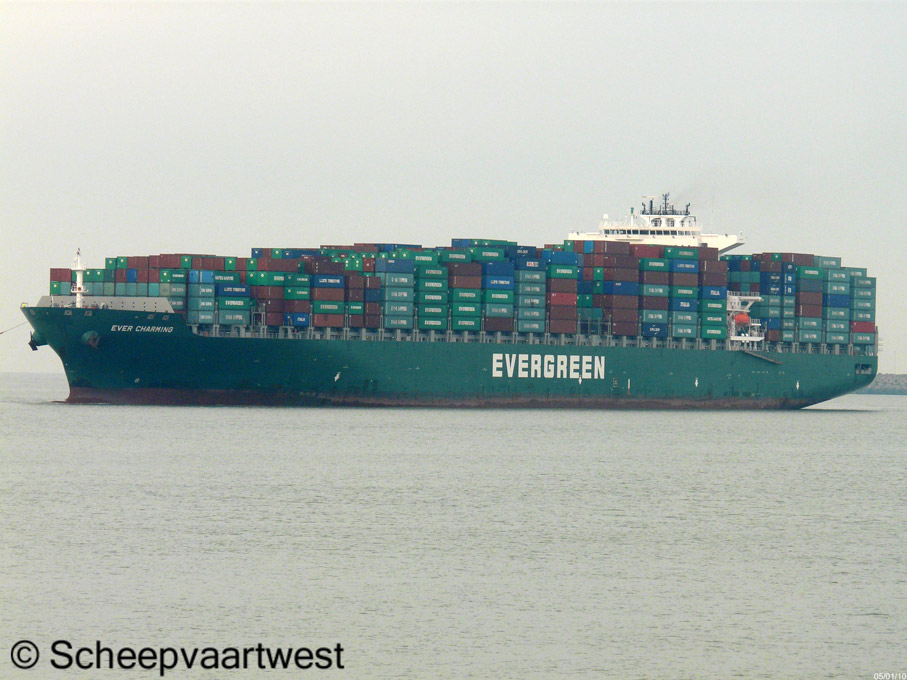

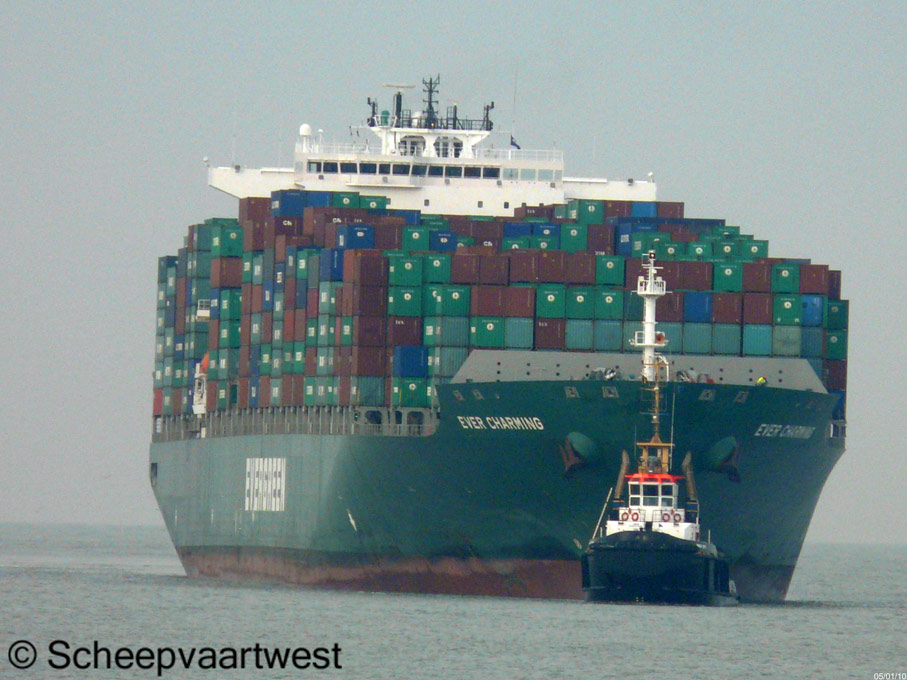

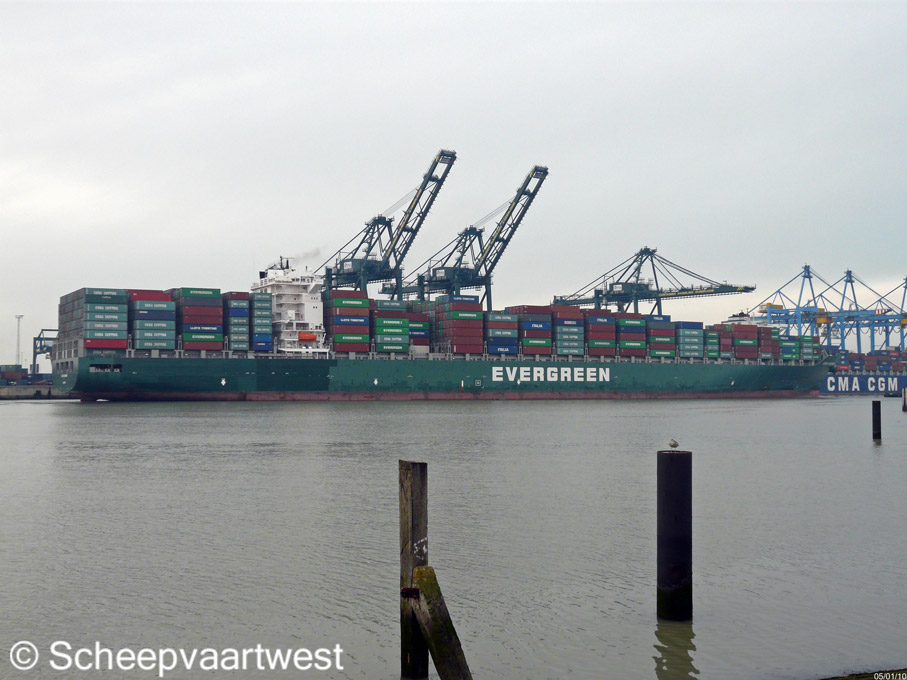

Zeebrugge 05 January 2010 enter the port direction quay 207 'Container Handling Zeebrugge' |
|
Type |
Cellular containership |
|
IMO-number |
9293777 |
|
Call sign |
DDZI2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
90.449 t |
|
DWT |
100.887 t |
|
NT |
55.452 t |
|
Number of 20ft containers |
8.084 |
|
Reefer point |
700 |
|
Length |
333,99 m overall 319,00 m between perpendiculars 320,62 m registered |
|
Breadth |
42,80 m |
|
Draught |
Summer: 14,50 m |
|
Forecastle |
160,03 m |
|
Bridge |
149,631 m |
|
Poop |
10,40 m |
|
Freeboard |
4.875 mm |
|
Depth |
24,60 m |
|
Speed |
25,2 knots |
|
Line |
Evergreen |
|
Built |
2005 |
|
Keel laid |
21.08.2005 |
|
Launch date |
21.05.2005 |
|
Date of completion |
09.09.2005 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard |
|
Yard number |
1514 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 12RTA96C-B - 2 stroke single acting 12 cylinder 960 x 2.500 mm diesel engine - 68.640 kW at 102,0 rpm Year of manufacture: 2005 Manufacturer: HSD Engine Co., Ltd. |
|
Propeller |
1x Rudder propeller - aft at 102 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 40,10 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 362,0 m² Year of manufacture: 2005 Manufacturer: Aalborg Industries Ltd. |
|
Electric installations |
1x Plant 6.600/450 V - 1.5281,4 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 160 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah 1x Plant 110 V - 125 Ah |
|
Diesel generators |
3x MAN-B&W 7L27/38 main diesel generatorsets each 2.743,8 kVA / 2.195 kW 2x MAN-B&W 9L27/38 main diesel generatorsets each 3.525 kVA / 2.820 kW |
|
Emergency + harbour gen. |
1x Diesel generatorset 625 kVA |
|
Batteries |
1x Battery for UPS radio 200 Ah 2x Batteries for automation each 160 Ah |
|
Compressed air receivers |
2x Receivers, each 20.000 litres - 33,0 bar 1x Receiver 500 litres - 33,0 bar 1x Receiver 300 litres - 33,0 bar 1x Receiver 150 litres - 8,8 bar |
|
Bow thruster |
1x Transverse thruster - 2500 kW, forward |
|
Anchor equipment |
3x Anchors weight each 18.800 kg Chain Length: 742,50 m |
|
Cargo gear |
Gearless |
|
Crew |
24 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG |
|
Operator |
Evergreen |
|
Owner |
Conti 20. Container Schiffahrts GmbH & Co. KG MS "Conti Charming" |
