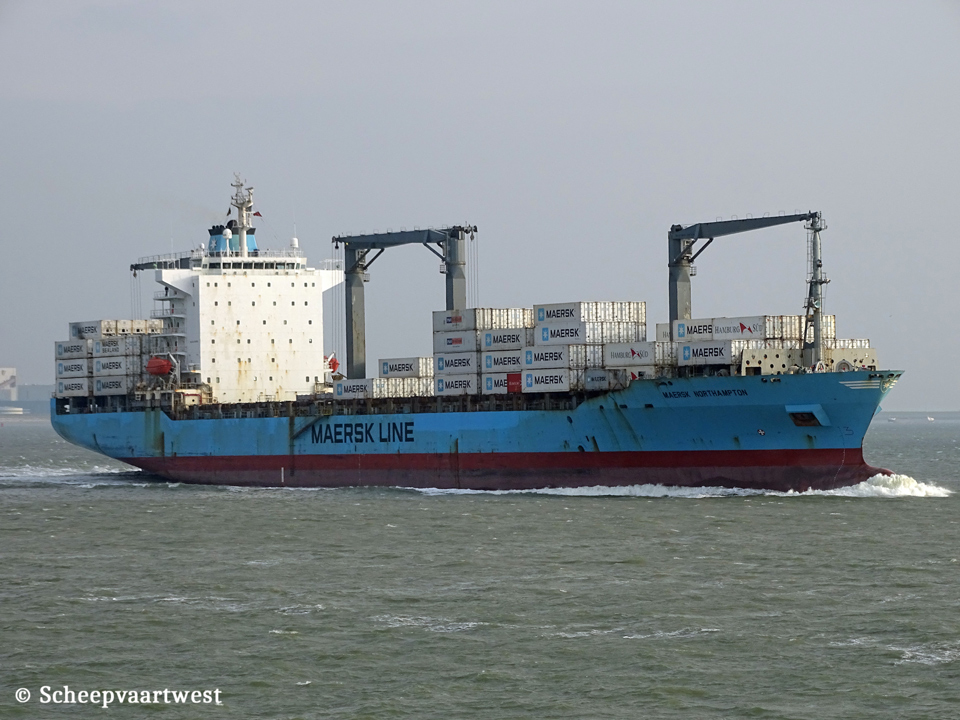

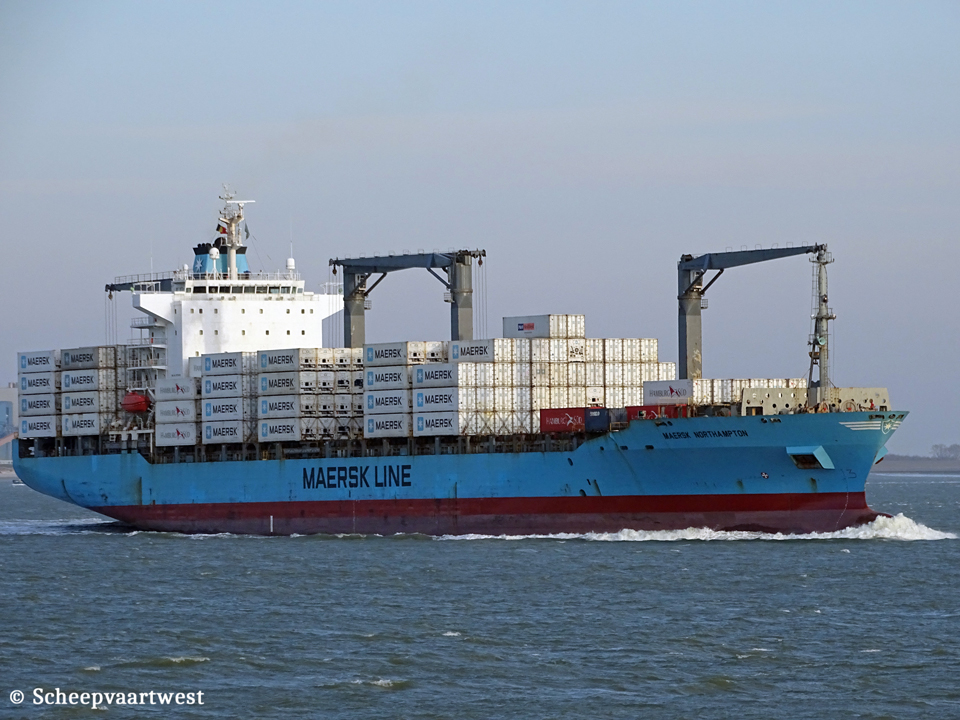

Westerschelde 07 April 2018 |
 |
 |
 |
 |
|||

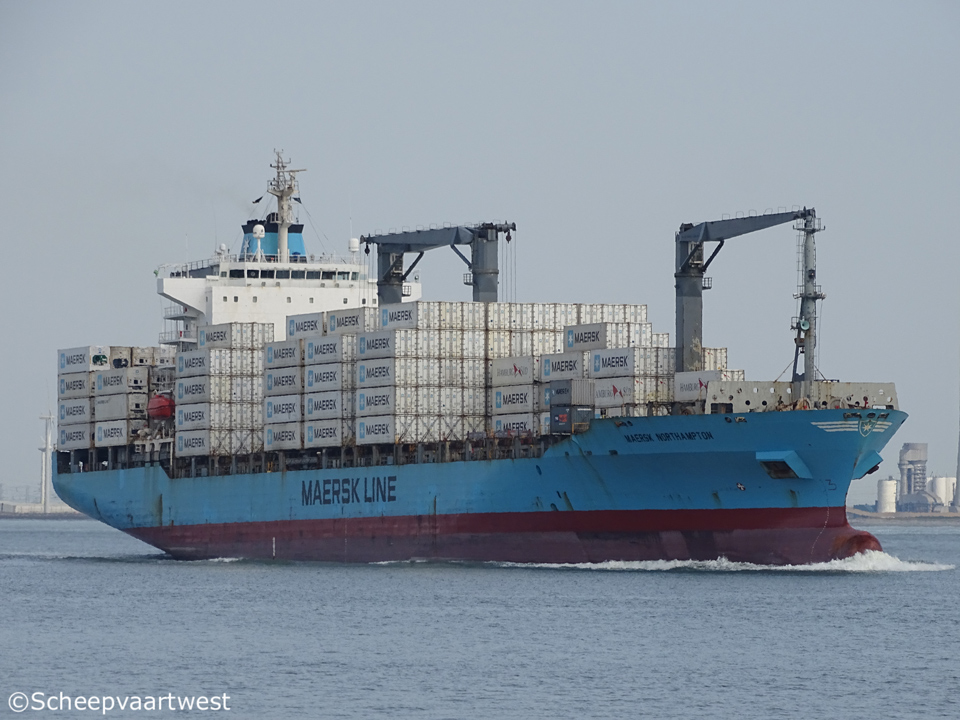

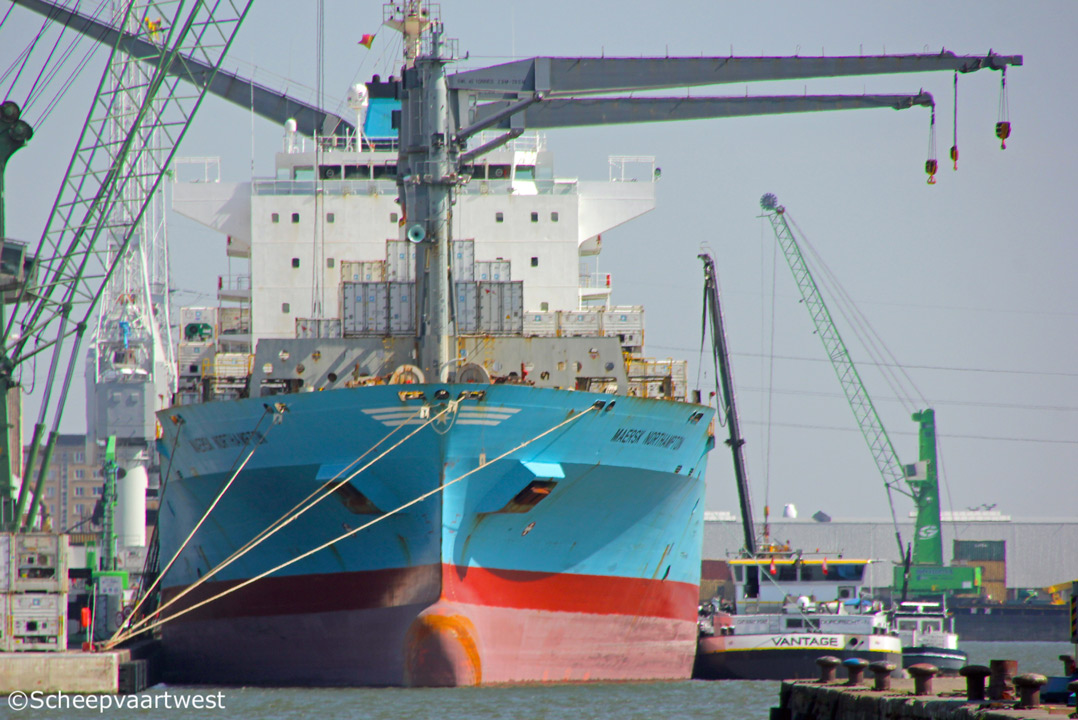

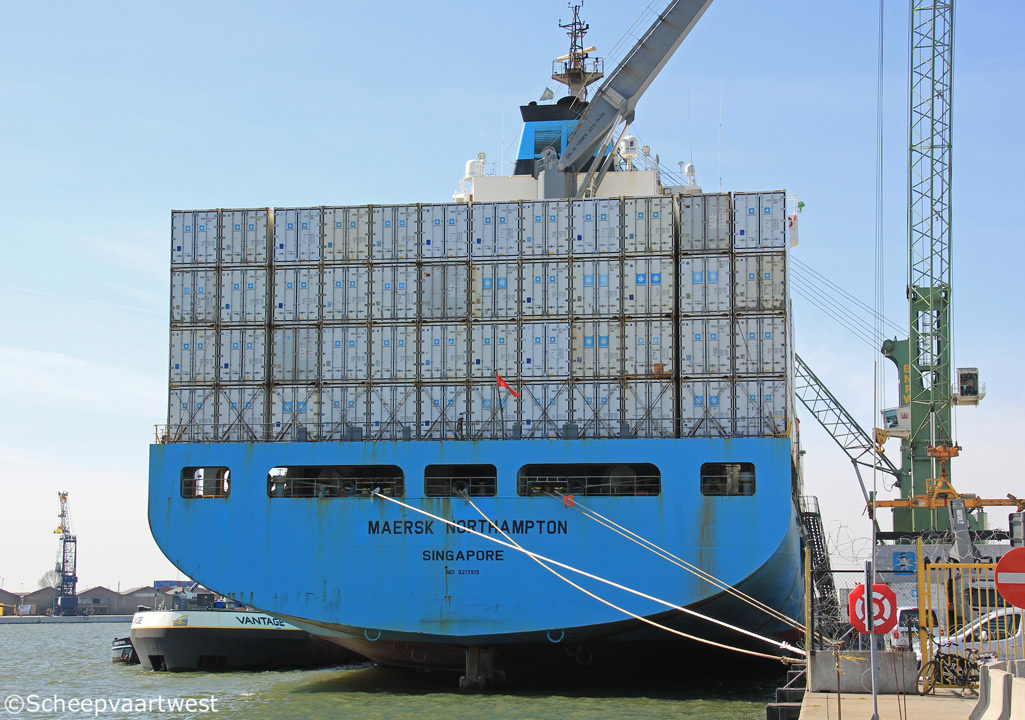

| Westerschelde 07/04/18 | Antwerpen 06/04/18 | Antwerpen 06/04/18 | Westerschelde 15/15/18 | |||
|
Name |
MAERSK NORTHAMPTON |
|
Previous names |
2001 Build as: Thekla Schulte 11/2001 - 11/2005 P&O Nedlloyd Antisana 2005 - 2015 Thekla Schulte |
|
Type |
Cellular containership |
|
IMO-number |
9215919 |
|
Call sign |
9VPY3 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
26.718 t registered |
|
DWT |
Summer: 34.677 t |
|
NT |
12.715 t registered |
|
Number of 20ft containers |
In hold: 944 On deck: 1.612 Total: 2.556 |
|
Container capacity 14t |
1.850 |
|
Reefer capacity |
600 |
|
Length |
210,07 m overall 199,00 m between perpendiculars |
|
Breadth |
30,20 m moulded |
|
Draught |
11,50 m |
|
Depth |
16,70 m moulded |
|
Speed |
Max: 22,0 knots |
|
Built |
2001 |
|
Keel laid |
28/05/2001 |
|
Launch date |
29/09/2001 |
|
Delivery date |
15/10/2001 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1301 |
|
Hull material |
Steel |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer/Hyundai 7RTA72U-B - 2 stroke single acting 7 cylinder 720 x 2.500 mm combustion engine 21.560 kW / 29.313 hp at 99,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 99,0 rpm |
|
Boilers |
1x Composite boiler - 7,85 bar Manufacturer: Kangrim Industries Co., Ltd. |
|
Generators |
4x MAN-B&W 8L28/32H main diesel generatorsets each 1.693 kW - 220/440 Volt 60 Hz |
|
Emergency generator |
1x MAN D2688 diesel generatorset 150 kW |
|
Bow thruster |
1x 1.000 kW / 1.360 bhp |
|
Number of cargo holds |
5 |
|
Number of tanks |
Ballast: 16 Fuel oil: 8 Lubricating oil: 7 Diesel oil: 4 Waste water: 3 Fresh water: 2 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 366,72 m³ / 330,04 t Freshwater: 167;41 m³ Fuel Oil: 7.016,21 m³ / 7.086,37 t Lube Oil: 277,4 m³ / 249,66 t Ballast: 9.380,53 m³ / 9.615,04 t |
|
Lifting equipment |
1x Engine room crane - SWL 6,0 t |
|
Cargo gear |
4x Liebherr cranes - SWL 40,0 t each |
|
Crew |
27 |
|
Operator |
Fleet Operations - Maersk Line Fleet Management & Technical Operations, Fleet Group Manager 200 Cantonment Road 10-00 Southpoint Singapore, 089763 Republic of Singapore |
|
Registered owner |
A.P. Moller Singapore Pte. Ltd. |
|
Latest data adjustment |
05 February 2022 |
