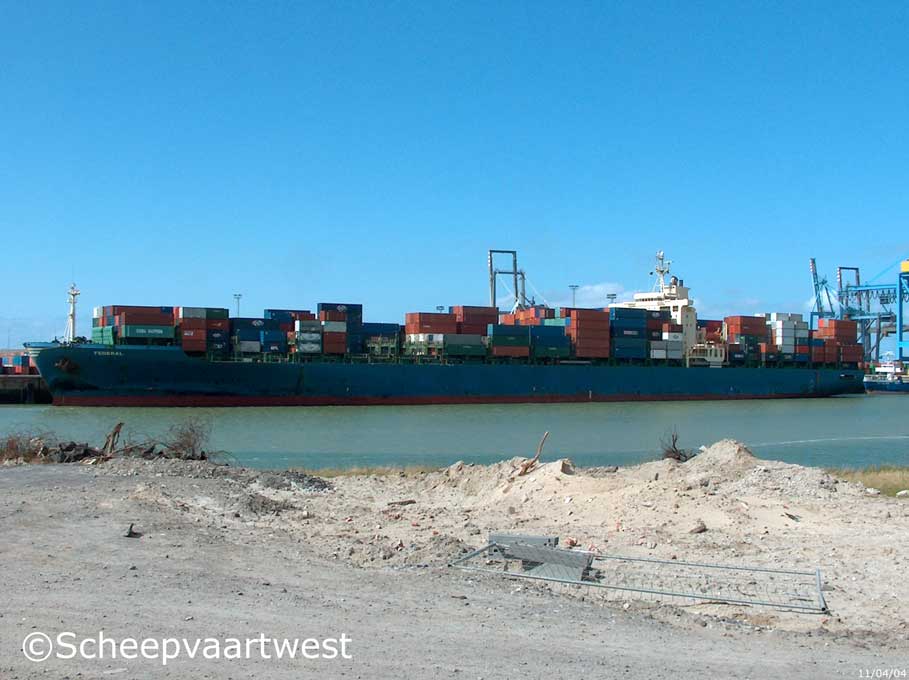

| Zeebrugge 11 April 2004 |
 |

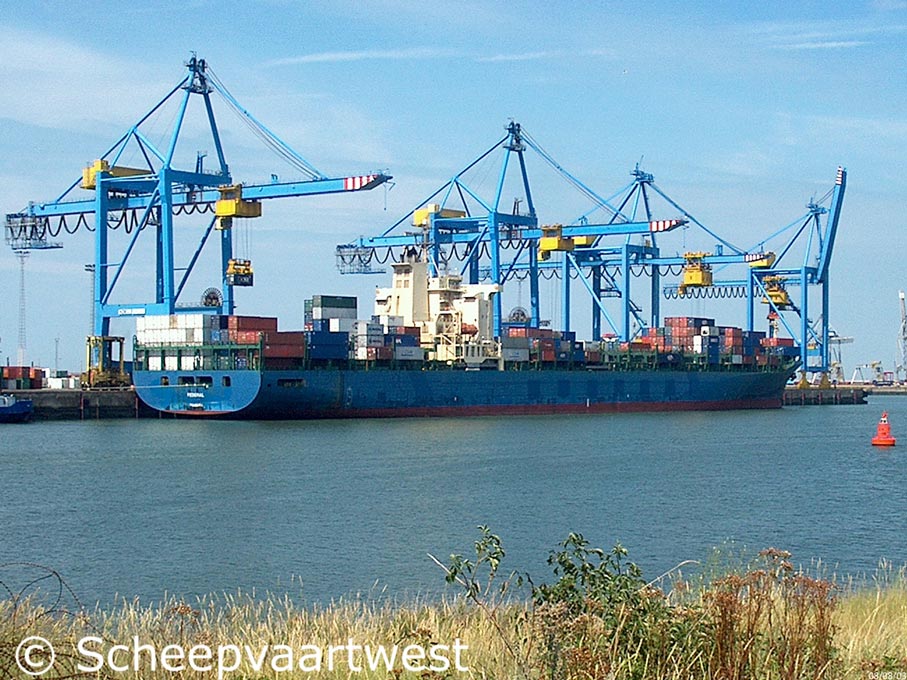

| Zeebrugge 08/08/03 |
|
Name |
FEDERAL |
|
Previous name |
Hyundai Federal |
|
Type |
Cellular Containership |
|
IMO-number |
9065625 |
|
Call sign |
3FDK4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
51.841 t |
|
DWT |
Summer: 61.152 t |
|
NT |
22.101 t |
|
Number of 20ft containers |
4.277 |
|
Container capacity at 14t |
3725 |
|
Reefer containers |
350 |
|
Length |
275,00 m overall 263,00 m between perpendiculars 264,13 m registered |
|
Breadth |
37,19 m overall |
|
Draught |
Summer: 13,61 m |
|
Draft |
13,10 m |
|
Displacement |
83.155 t |
|
Freeboard |
7.390 mm |
|
Depth |
21,70 m |
|
Speed |
24,5 knots |
|
Built |
1994 |
|
Keel laid |
15.12.1993 |
|
Date of completion |
02.05.1994 |
|
Builder |
Hyundai Heavy Industries Co. Ltd. |
|
Yard number |
H850 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 12K90MC-C - 50.021 kW |
|
Number of screws |
1x Fixed propeller Builder: Hyundai Industries |
|
Boilers |
1x Auxiliary boiler exhaust gas smoke 1x Auxiliary boiler vertical shell - Aalborg 10/12 W |
|
Auxiliary power |
2x MAN-B&W 9L28/32H main dieel generatorsets each 1.901 kW |
|
Bow thruster |
1x Kawasaki KT255-BI - 2.000 kW |
|
Anchor chain |
Length: 714 m Diameter: 87 mm |
|
Gear |
Gearless |
|
Manager |
Hyundai Merchant Marine |
|
Renamed |
03.06.2008 MOL Confidence |
