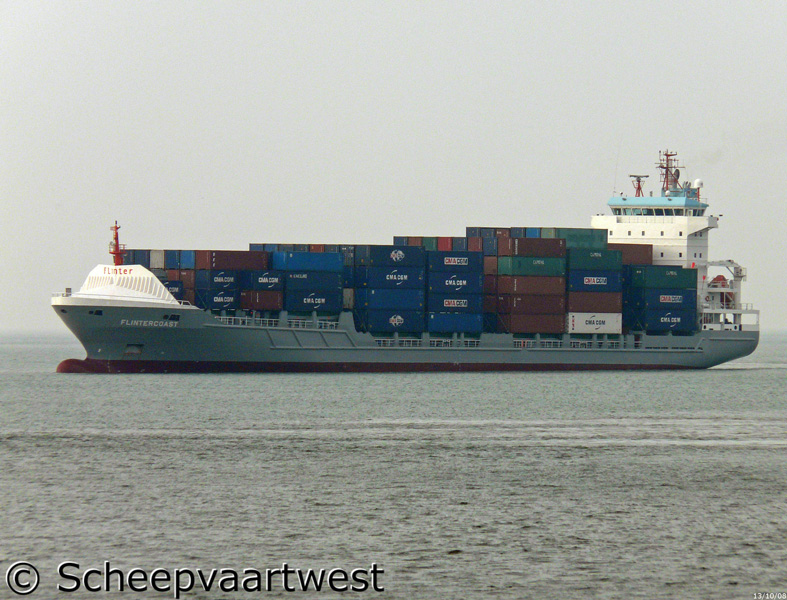

Flintercoast 02
Zeebrugge 13 October 2008

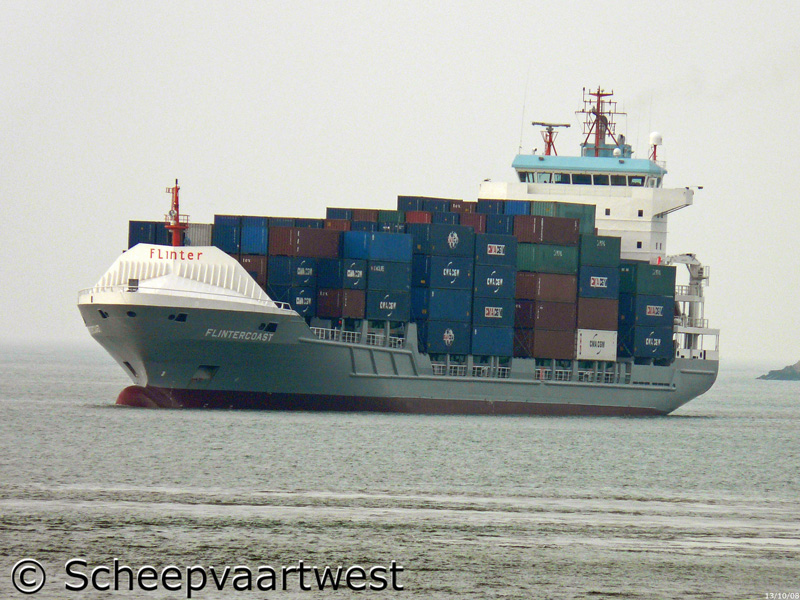

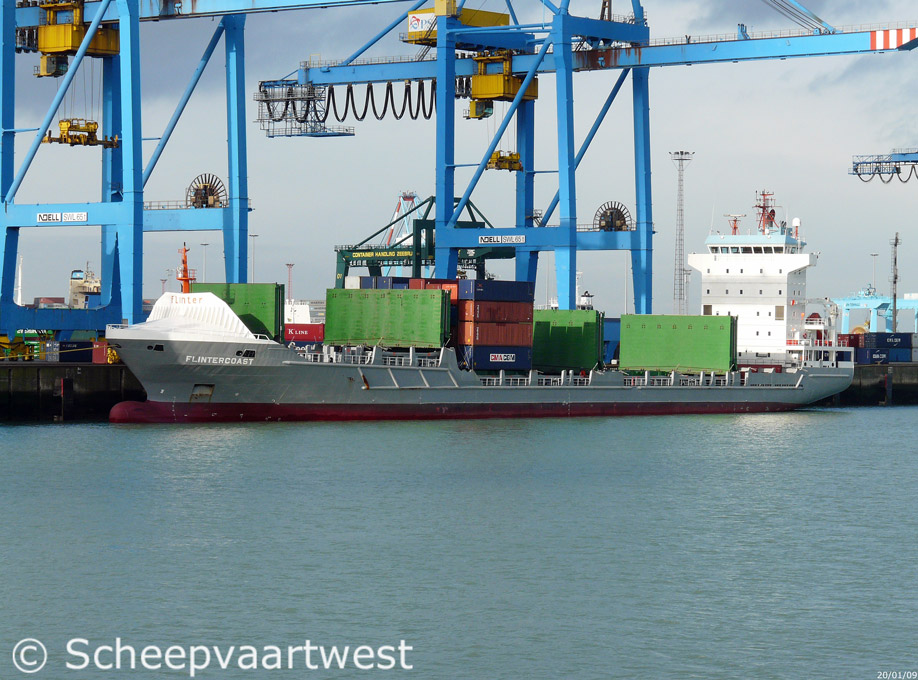

Flintercoast 01   Flintercoast 12
Zeebrugge 13/10/08 Zeebrugge 20/01/09



Name

FINTERCOAST

Previous name

Launch as: Fresena Mate

Type

Cellular Containership

IMO-number

9365972

Call sign

PHOP

Flag

The Netherlands

Port of registry

Rotterdam

GT

7.702 t

DWT

9.140 t

NT

3.614 t

Number of 20ft containers

809

Container capacity 14t

514

Reefer point

150

Length

141,60 m overall

132,30 m between perpendiculars

Breadth

20,60 m

Draught

7,72 m

Freeboard

2.222 mm

Depth

9,50 m

Speed

18,7 knots

Built

2008

Date of completion

17.06.2008

Builder casco

IHDA Shipbuilding Service

Nanton
China

Outfitting yard

IHDA Shipbuilding Service

Krimpen aan de Lek

The Netherlands

Yard number

254

Hull material

Steel

Hull type

Single hull

Watertight compartments

6

Continuous decks

1

Main engine

Wärtsilä 8L46 - 8 cylinder 460 x 580 mm internal combustion engine - 9.240 kW / 12.554 hp at 500 rpm

Built: 2006

Builder: Wärtsilä Italia S.p., Trieste - Italy

Electrical propulsion gen.

1x 1.250 kW 440 Volt

Propelling system

1x Screw propeller controllable pitch

Boilers

1x CHO 28,00 m² - 13,0 bar
1x CHR 90,15 m² - 10,0 bar

Shaft alternator

1.000 kW

Diesel generators

2x Mitsubishi type MAS-765-S main diesel generatorsets each - 938 kVA - 750 kW - 1.034 hp

Emergency generator

1x Mitsubishi type MAS-210-S diesel generatorset 245 KVA – 196 kW - cos.phi 0,8 - 440 Volt - 60 Hz

Bow thruster

1x Leroy Somer - 750 kW

Fuel capacity

1.487,2 m³

Cargo gear

Gearless

Crew

12

Operator

CMA CGM

Owner

Rederij Flinter (Allships BV)
C.V. Scheepvaartonderneming Flintercoast
Krakau 3

2993LV Barendrecht
Rotterdam
The Netherlands
