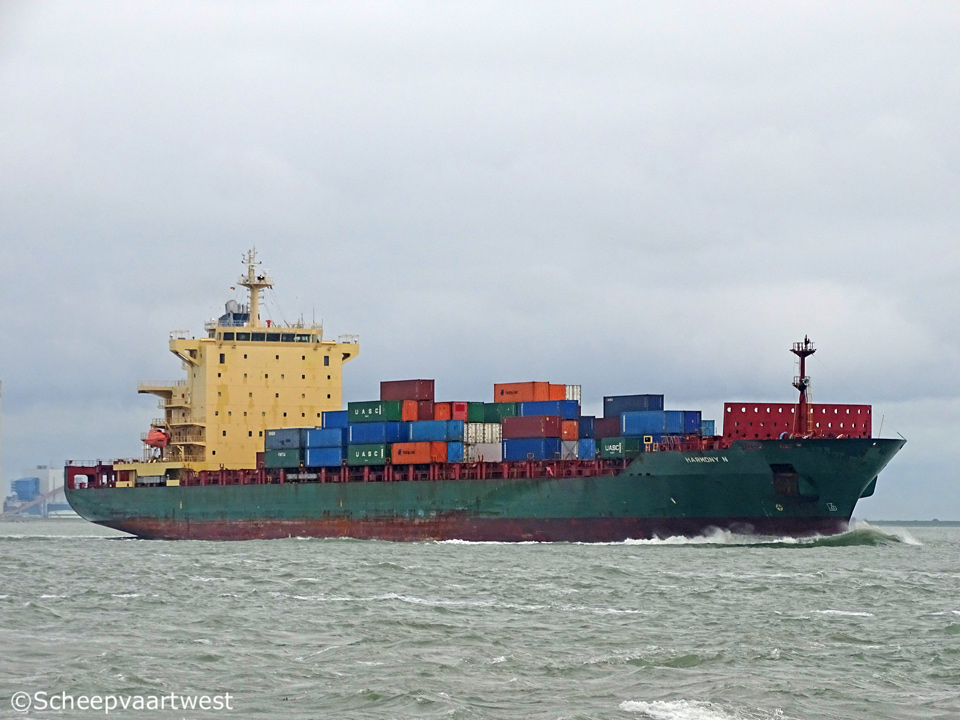

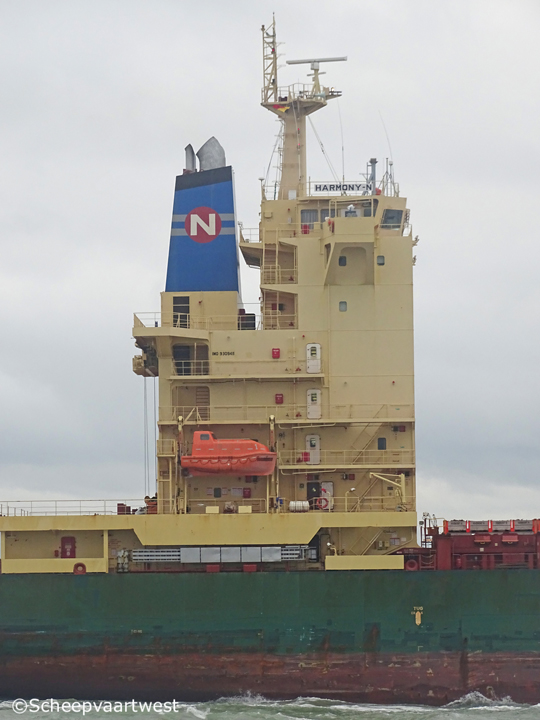

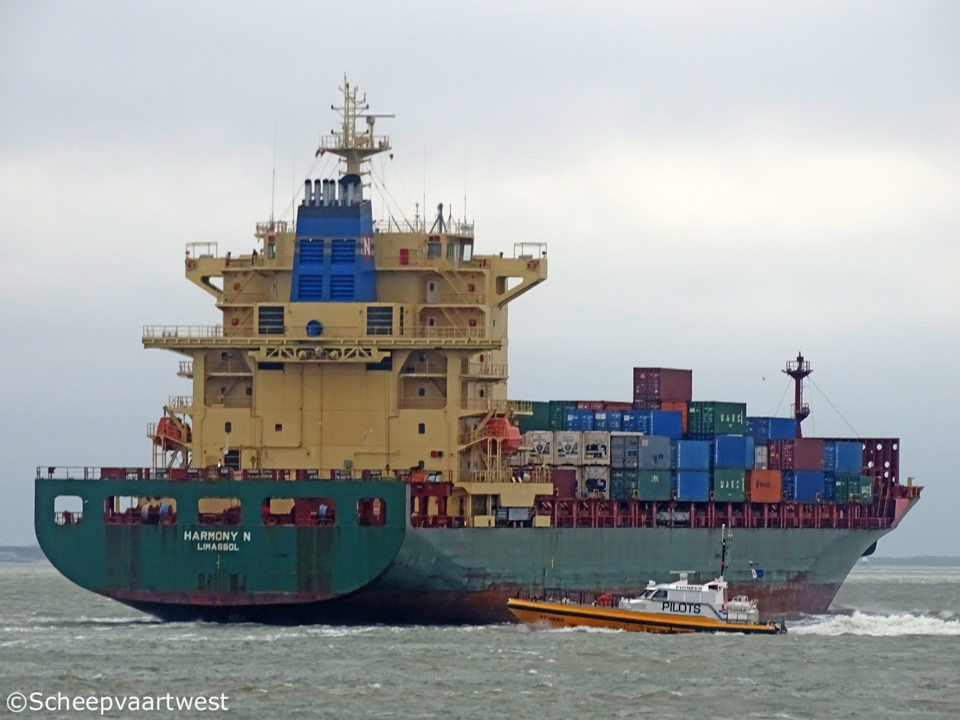

Harmony N - IMO 9309411

Westerschelde 24 October 2017

Name

HARMONY N

Previous names

2006 - 09/2011 Maersk Jakarta

09/2011 - 08/2013 AS Caria

Type

Cellular containership

IMO-number

9309411

Call sign

5BXU3

Flag

Cyprus

Port of registry

Limassol

Previous flags

2006 - 2013 Liberia, Monrovia

GT

28.592 t

Suez: 29.352 t

DWT

Summer: 39.418 t

NT

14.769 t

Suez: 27.918 t

Number of 20ft containers

2.824

Container capacity 14t

2.030

Reefer capacity

586

Length

222,14 m overall

210,00 m between perpendiculars

Breadth

30,07 m extreme

Draught

Summer: 12,00 m

Forecastle

27,33 m

Freeboard

4.837 mm

Depth

16,80 m

Speed

Max: 23,0 knots

Built

2006

Keel laid

03/05/2006

Launch date

12/07/2006

Date of completion

01/09/2006

Builder

Hyundai Mipo Dockyard Co., Ltd.
Ulsan
South Korea

Yard number

0362

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN B&W 7K80MC-C - 2 stroke 7 cylinder 800 x 2.300 mm combustion engine 25.270 kW at 104,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propellers

1x Fixed pitch propeller

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 8,83 bar
Heating surface: 35,0 m²
Heating surface: 654,0 m²

Manufacturer: KangRim Industries Co., Ltd. (1rd Factory)

Generators

4x MAN 8L28/32H main diesel generatorsets each 1.600 kW at 720 rpm

Emergency generator

1x Sisu 634 DSBIG diesel generatorset 150 kVA

Batteries

2x Batteries for UPS radio each 200 Ah

Compressed air receivers

2x Receivers each 8500 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 250 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.100 kW

Number of holds

6

Number of hatches

11

Tank capacities

Ballast: 10.822,7 m³

Anchor equipment

3x Anchors weight each 9.900 kg

Chain length: 660,00 m

Diameter: 78 mm

Cargo gear

Gearless

Crew size

25

Manager

Navios Shipmanagement Inc.

Registered owner

Dionysus Shipping Corporation
c/o Navios Shipmanagement Inc, 85
Akti Miaouli
185 38 Piraeus
Greece

Latest data adjustment

24 July 2018
