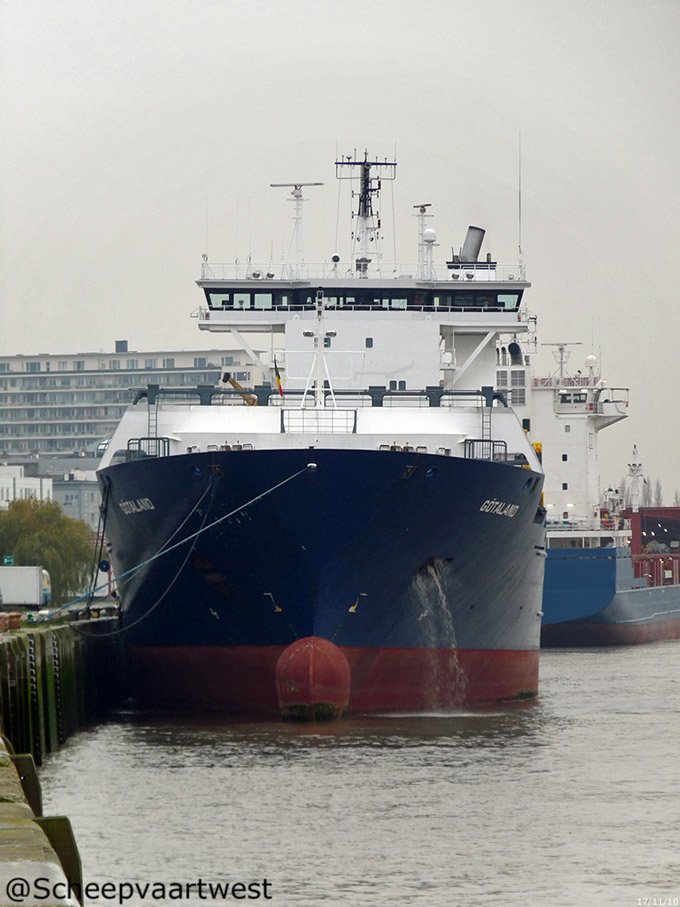

| Antwerpen 17 November 2010 |
|
Name |
GÖTALAND |
|
Previous names |
2003-06.11.2003 Anisia 06.11.2003-29.04.2004 OOCL Norppa |
|
Type |
Cellular Containership |
|
IMO-number |
9287704 |
|
Official number |
20149 |
|
Call sign |
MVRQ8 |
|
Flag |
United kingdom |
|
Previous flag |
Germany |
|
Port of registry |
Felixstowe |
|
Previous port of registry |
Hamburg |
|
GT |
7.519 t registered |
|
DWT |
8.632 t |
|
NT |
3.570 t registered |
|
Number of 20ft containers |
864 |
|
Container capacity at 14t |
516 |
|
Reefer capacity |
150 |
|
Length |
137,50 m overall 126,42 m registered |
|
Breadth |
21,30 m registered |
|
Draught |
7,50 m |
|
Speed |
19,3 knots |
|
Depth |
9,36 m |
|
Built |
2003 |
|
Keel laid |
20.06.2002 |
|
Launch date |
06.09.2003 |
|
Date of completion |
31.10.2003 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1217 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 9M43 - 4 stroke single acting 9 cylinder 430 x 610 mm diesel engine - 8.400 kW at 500 rpm Year of manufacture: 2003 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller- aft at 137 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 51,7 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 212,0 m² Year of manufacture: 2003 Manufacturer: PWT Prozess-Wärmeträgertechnik GmbH |
|
Electric installations |
1x Plant 380/220 V - 625 kVA 1x Plant 380/220 V - 625 kVA 1x Plant 380 V - 1.625 kVA 1x Plant 380 V - 290 kVA 1x Plant 24 V - 140 Ah 1x Plant 400 V - 16 kVA |
|
Shaft generator |
1.625 kVA |
|
Generators |
2x Caterpillar 3412 main diesel generatorsets each 625 kVA |
|
Emergency generator |
1x Diesel generatorset 290 kVA |
|
Batteries |
2x Batteries for start emergency engine each 140 Ah |
|
Compressed air receivers |
2x Receivers each750 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Transverse thruster BRUNVOLL - 750 kW forward |
|
Tank capacities |
Fuel oil: 778 m³ Water ballast: 3.735 m³ |
|
Anchor Equipment |
3x Anchors weight each 4.890 kg Chain length: 550,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
19 |
|
Manager |
Nordenhamer Bereederungs GmbH & Co. KG |
|
Previous managers |
Hammonia Reederei GmbH & Co. KG, |
|
Owner |
MS "LISA" Schiffahrts GmbH & Co. KG |
|
Previous owner |
Italia Shipping Ltd. |
