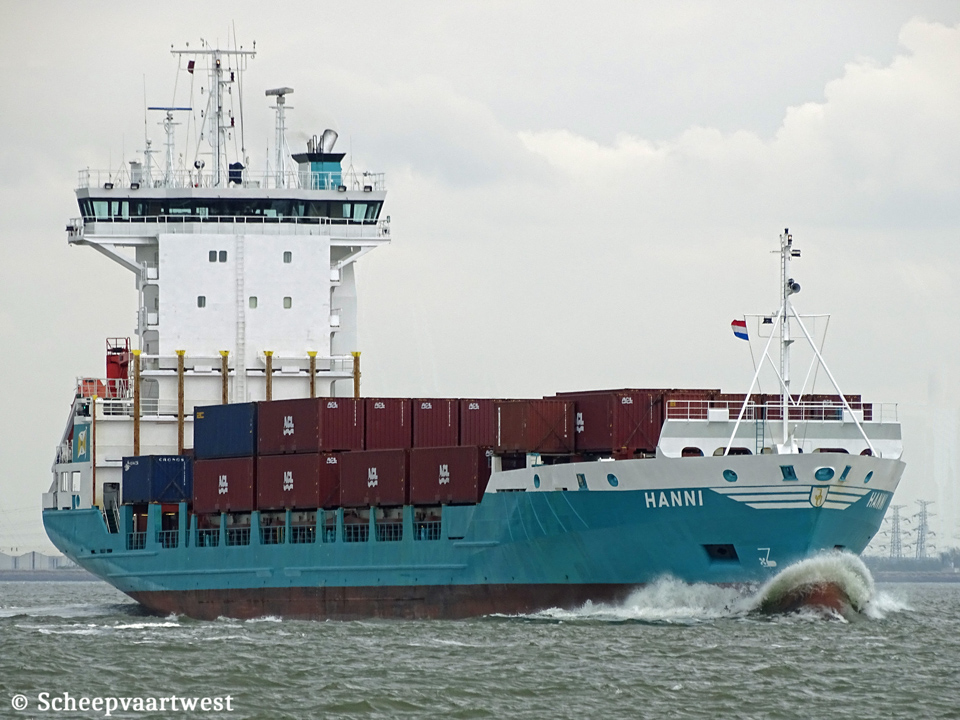

| Westerschelde 24 April 2018 |
 |
 |
 |
 |
 |
 |
|||||

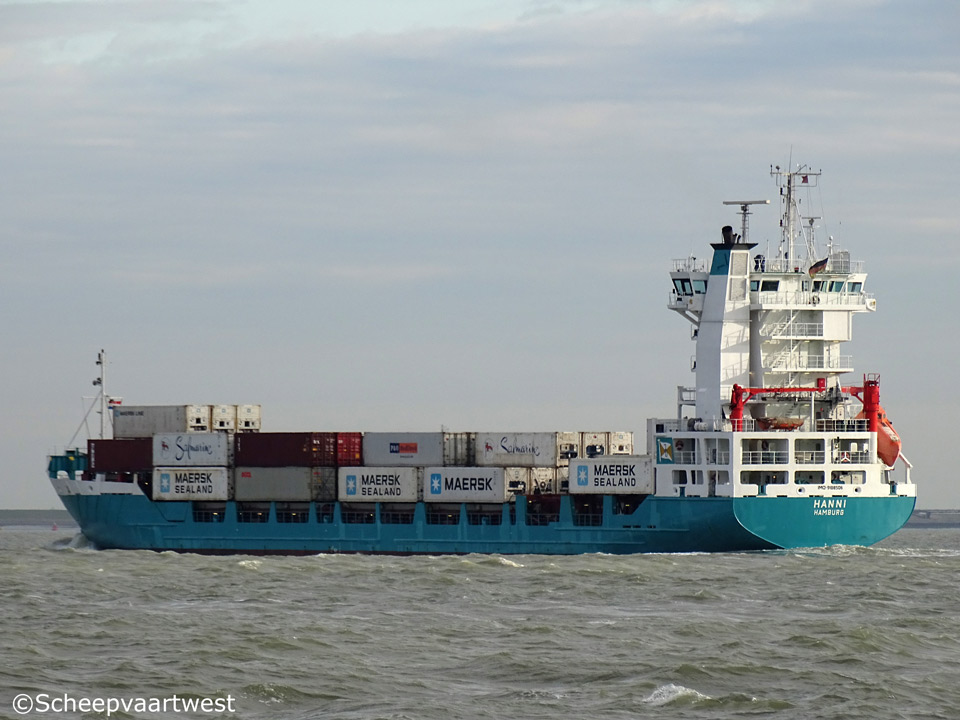

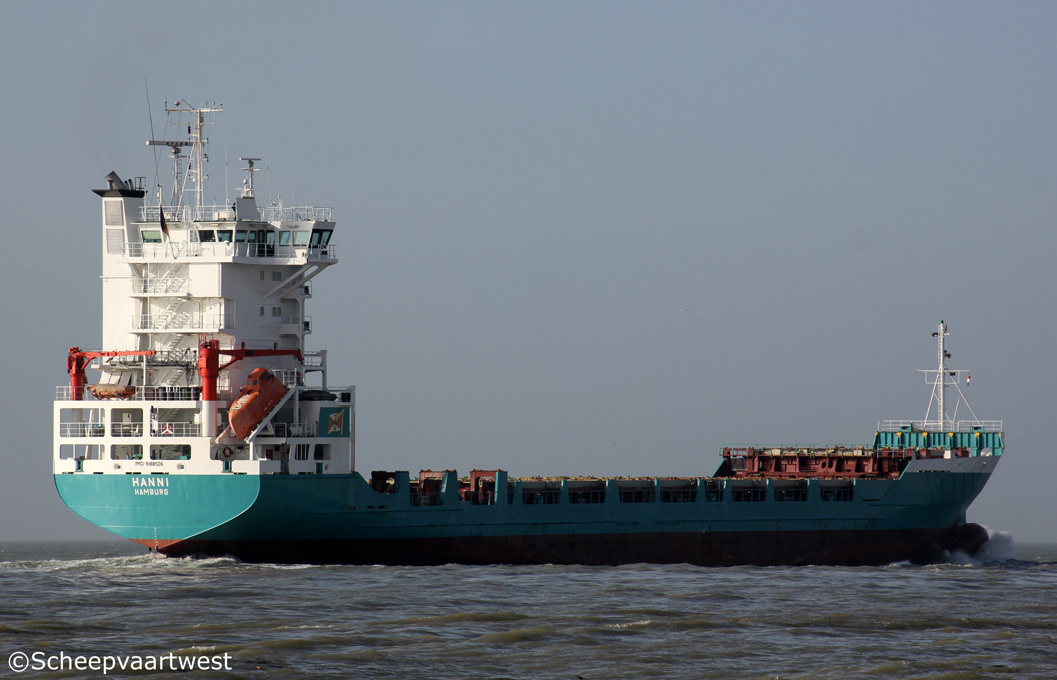

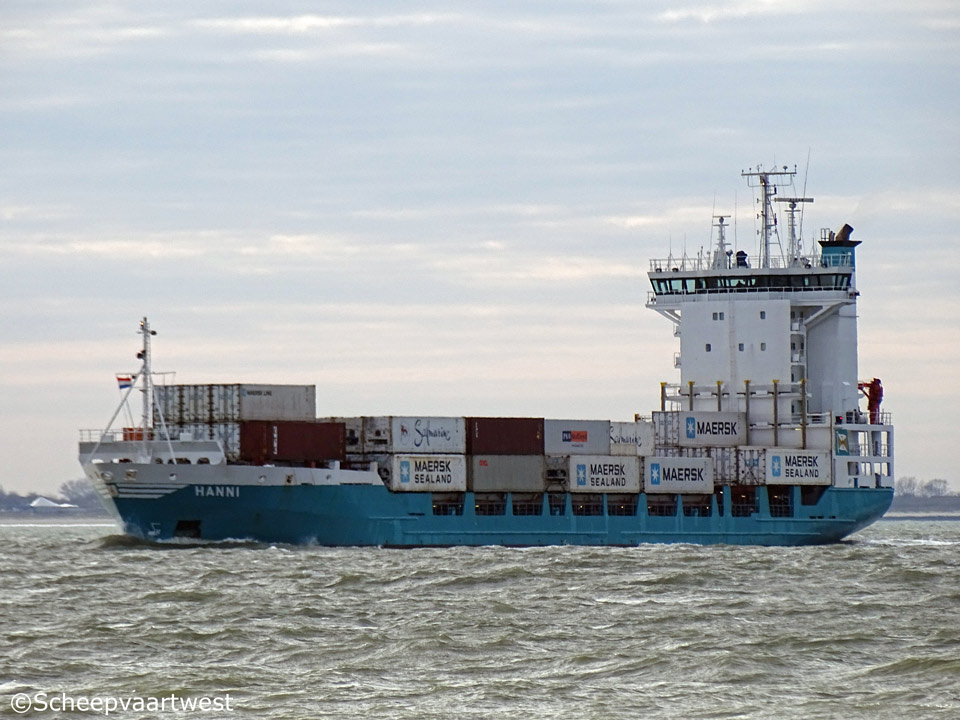

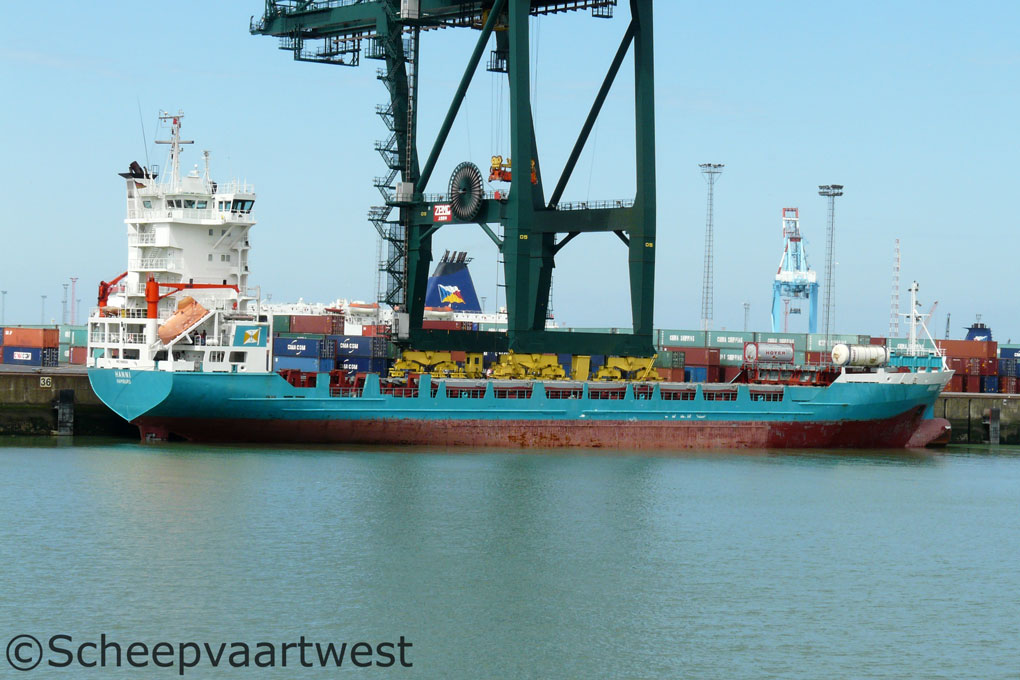

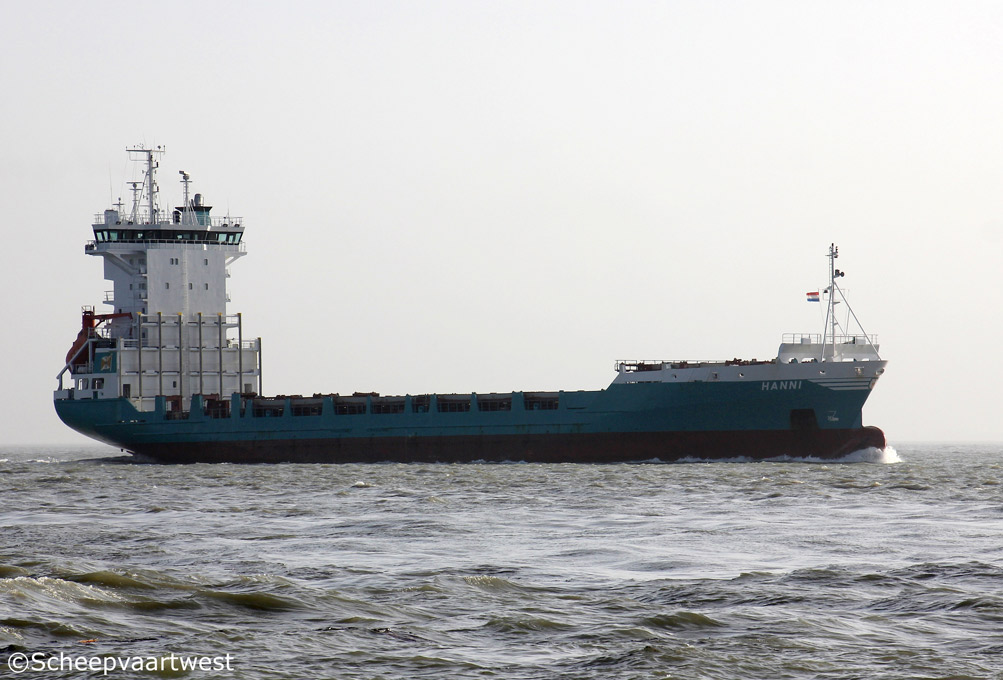

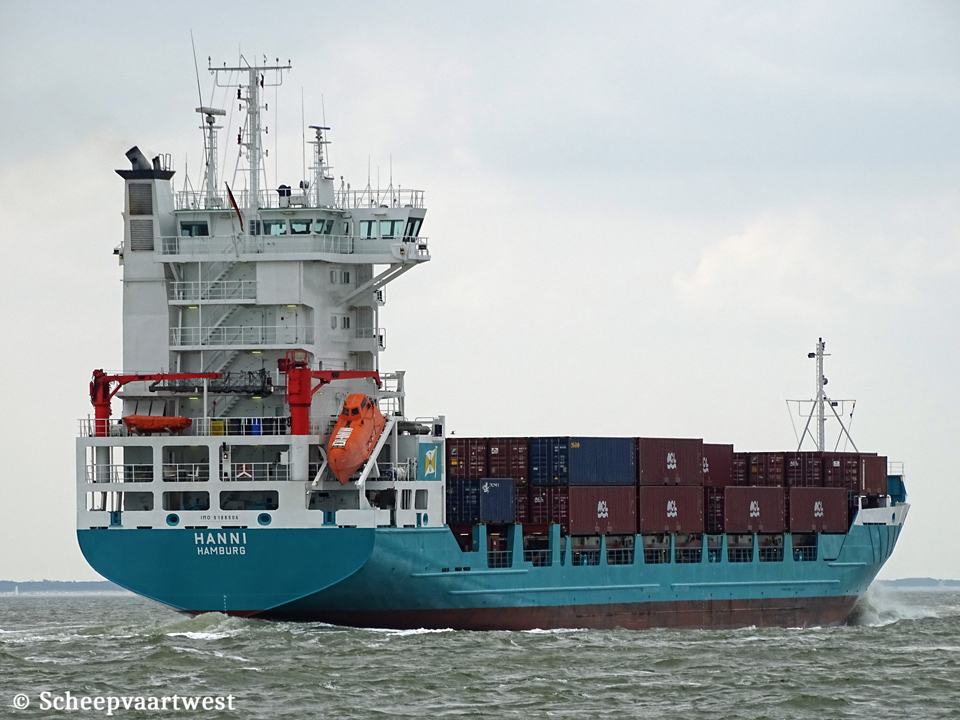

| Westerschelde 28/04/18 | Westerschelde 23/01/16 | Westerschelde 23/01/16 | Zeebrugge 20/05/11 | Westerschelde 02/12/15 | Westerschelde 02/12/15 |
|
Name |
HANNI |
|
Previous names |
1998-1999 Hanni 1999-2007 Svealand |
|
Type |
Cellular containership Single screw container vessel with poop and forecastle |
|
IMO-number |
9188506 |
|
Call sign |
DHMW |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
5.056 t |
|
DWT |
6.867 t |
|
NT |
2.530 t |
|
Number of 20ft containers |
In hold: 162 TEU On deck: 496 TEU (up to 7 tiers) Total: 658 or in combination: In hold: 78 FEU + 6 TEU On deck: 214 FEU + 68 TEU total: 292 FEU + 74 TEU |
|
Container capacity 14t |
386 |
|
Reefer plugs |
In hold: 24 On deck: 78 Total: 102 - 400 Volt / 50 Hz - 3 phases |
|
Length |
118,31 m overall 108,00 m between perpendiculars 109,04 m registered |
|
Breadth |
17,90 m moulded |
|
Draught |
Max.: 7,09 m |
|
Forecastle |
22,94 m |
|
Poop |
6,97 m |
|
Freeboard |
2.123 mm |
|
Depth |
9,20 m |
|
Speed |
Max.: 18,4 knots Service: 17,0 knots |
|
Built |
1998 |
|
Keel laid |
18/12/1997 |
|
Launch date |
09/10/1998 |
|
Date of completion |
19/12/1998 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1156 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight compartments |
6 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 8L40/54 - 4 stroke 8 cylinder 400 x 540 mm combustion engine 5.760 kW / 7.826 hp at 514 rpm Reduced power: 3.265 kW Year of manufacture: 30.07.1998 Manufacturer: MAN B&W Diesel GmbH Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 156 rpm |
|
Electric installations |
1x Plant 380/220 V - 380 kVA 1x Plant 380/220 V - 380 kVA 1x Plant 380 V - 963 kVA 1x Plant 380 V - 100 kVA |
|
Shaft alternator |
1x 963 kVA |
|
Generators |
2x Main diesel generatorsets each 380 kVA |
|
Emergency generator |
1x Diesel generatorset 100 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 550 kW, forward |
|
Number of holds |
3x Box holds, steel floored Hold 1: 13,10 x 10,42 x 11,20 Hold 2 & 3: 26,20 x 15,52 x 8,50 m |
|
Cargo capacity |
Grain: 8.528 m³ Bales: 7.693 m³ |
|
Hold ventilation |
Electrically ventilated / 6-fold air changes/h based on empty holds |
|
Number of hatches |
3x Hatches - hydraulic operated steel hatch covers Hatch 1:12,66 x 10,42 m Hatches 2 & 3: 25,10 x 15,52 m |
|
Tank capacities |
Fuel: 497 t Gas oil: 145 t Fresh water: 97 t Water ballast: 2.170 m³ |
|
Anchor equipment |
3x Anchors weight each 4.050 kg Chain length: 522,50 m |
|
Ventilation |
Electrically ventilated |
|
Cargo gear |
Gearless |
|
Crew |
11 |
|
Crew size |
19 |
|
Manager |
Merilinja Oy 90831 Haukipudas Finland |
|
Registered owner |
Reederei Jürgen Ohle KG MS "HANNI" Dornbuscher Strasse 11 21706 Drochtersen Federal Republic of Germany |
|
Latest data adjustment |
15 January 2021 |
