| Zeebrugge 24 September 2009 |
|
Name |

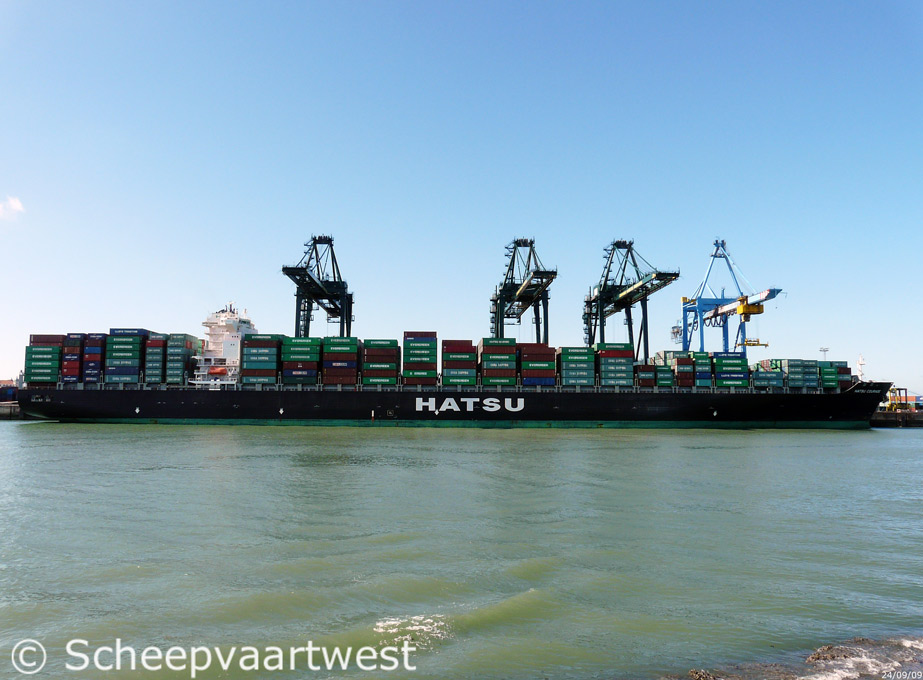

HATSU COURAGE |
|
Type |
Cellular Containership |
|
IMO-number |
9293789 |
|
Call sign |
DDZG2 |
|
Flag |
Federal Republic of Germany |
|
Port of registry |
Hamburg |
|
GT |
90.449 t |
|
DWT |
100.936 t |
|
NT |
55.452 t |
|
Number of 20ft containers |
8.084 |
|
Reefer point |
700 |
|
Length |
333,99 m overall 319,00 m between perpendiculars 320,62 m registered |
|
Breadth |
42,80 m registered |
|
Draught |
Summer: 14,50 m |
|
Forecastle |
160,03 m |
|
Poop |
10,40 m |
|
Bridge |
149,631 m |
|
Freeboard |
4.875 mm |
|
Depth |
24,60 m |
|
Speed |
25,2 knots |
|
Built |
2005 |
|
Keel laid |
08.08.2005 |
|
Launch date |
15.10.2005 |
|
Date of completion |
21.12.2005 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje Shipyard |
|
Yard number |
1525 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 12 RTA96C-B - 2 stroke single acting 12 cylinder 960 x 2.500 mm diesel engine - 68.640 kW Year of manufacture: 2005 Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar 1x Steam boiler, exhaust gas heated - 10,0 bar Year of manufacture: 2005 Manufacturer: Aalborg Industries Ltd. |
|
Electric installations |
1x Plant 6.600 / 450 V - 15.281,40 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 160 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah 1x Plant 110 V - 125 Ah |
|
Diesel generators |
2x MAN-B&W 7L27/38 main diesel generatorsets each 3.525 kVA / 2.820 kW 3x MAN-B&W 9L27/38 main diesel generatorsets each 2.743,80 kVA / 2.195 kW |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Batteries |
1x Battery for UPS radio - 200 Ah 2x Batteries for automation each 160 Ah |
|
Compressed air receivers |
2x Receivers, each 20.000 litres - 33,0 bar 1x Receiver 500 litres - 33,0 bar 1x Receiver 300 litres - 33,0 bar 1x Receiver 150 litres - 8,8 bar |
|
Bow thruster |
1x Transverse thruster - 2.500 kW, forward |
|
Anchor equipment |
3x Anchors weight each 18.800 kg Chain length: 742,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
34 |
|
Crew |
25 |
|
Manager |
NSB Niederelbe Schiffahrts GmbH & Co. KG |
|
Operator |
Evergreen |
|
Owner |
Conti 22. Container Schiffahrts GmbH & Co. KG MS "CONTI COURAGE" |
