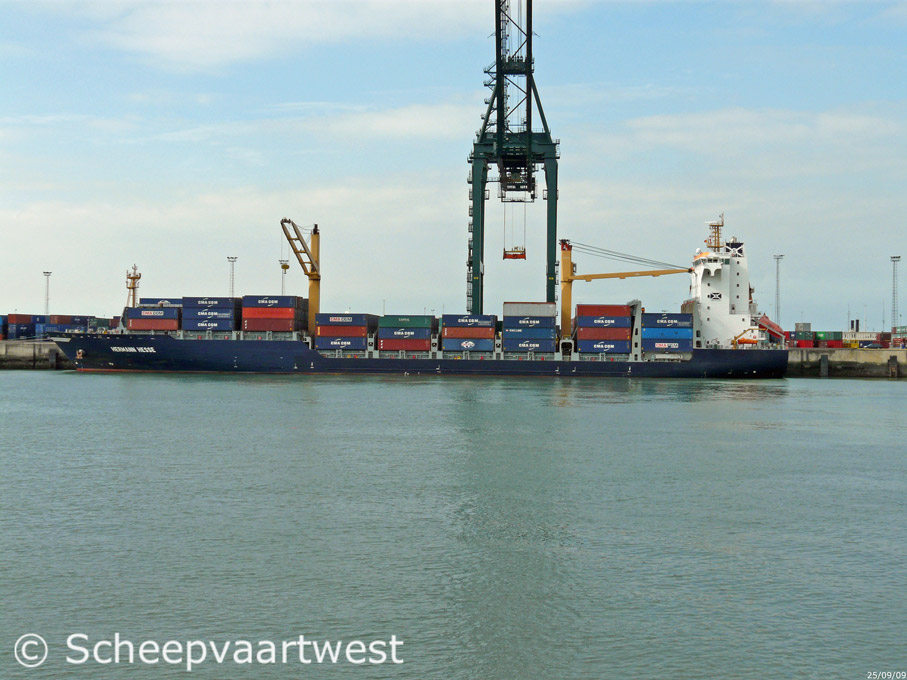

Hermann Hesse 06
Zeebrugge 25 September 2009



Name

HERMANN HESSE

Type

Cellular Containership

IMO-number

9323493

Call sign

A8KW5

Flag

Liberia

Port of registry

Monrovia

GT

18.480 t

DWT

23.716 t

NT

10.277 t

Number of 20ft containers

1.732

Reefer capacity

379

Length

176,91 m overall

165,00 m between perpendiculars

167,45 m m registered

Breadth

27,40 m registered

Draught

Summer: 10,90 m

Forecastle

57,40 m

Poop

15,93 m

Depth

14,30 m moulded

Speed

20,5 knots

Built

2007

Keel laid

11.10.2006

Launch date

01.01.2007

Date of completion

15.02.2007

Builder

Guangzhou Wenchong Shipyard Co., Ltd.
1, Wenchuan Road Hongshan Street, Huangpu District
510725 Guangzhou , Guangdong
People's Republic of China

Yard number

GWS329

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAN-B&W 7 S60MC-C Mk8 - 2 stroke single acting 7 cylinder 600 x 2.400 mm diesel engine - 16.660 kW at 105,0 rpm

Year of manufacture: 2006

Manufacturer: Hudong Heavy Machinery Co., Ltd.
2851, Pudong Dadao
200129 Shanghai
People's Republic of China

Propellers

1x Solid propeller - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar
Heating surface: 61,0 m²

1x Exhaust gas heated - 9,0 bar
Heating surface: 380,0 m²

Year of manufacture: 2006

Manufacturer: KangRim Ind. Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installations

1x Plant 450 V - 5.700 kVA

1x Plant 450 V - 213 kVA

1x Plant 24 V - 56 Ah

1x Plant 24 V - 180 Ah

1x Plant 24 V - 195 Ah

Diesel generators

3x MAN-B&W 8L21/31H main diesel generatorsets each - 1.900 kVA / 1.520 kW

Emergency generator

1x Diesel generatorset 213 kVA

Batteries

1x Battery for automation - 180 Ah

Compressed air receivers

2x Receivers each 6.000 litres - 30,0 bar

1x Receiver 40 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 900 kW, forward

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length: 632,50 m

Cargo gear

2x Cranes - SWL each 45,0 t

1x Crane - SWL 6,0 t

Crew size

26

Crew

21

Manager

Reederei Karl Schlüter GmbH & Co. KG
Adolf-Steckel-Str. 17
24768 Rendsburg
Federal Republic of Germany

Operator

CMA CGM

Owner

KG MS ''HERMANN HESSE'' Schiffahrts GmbH & Co.
Adolf-Steckel-Str. 17
24768 Rendsburg
Federal Republic of Germany
