| Zeebrugge 23 May 2009 |
|
Name |

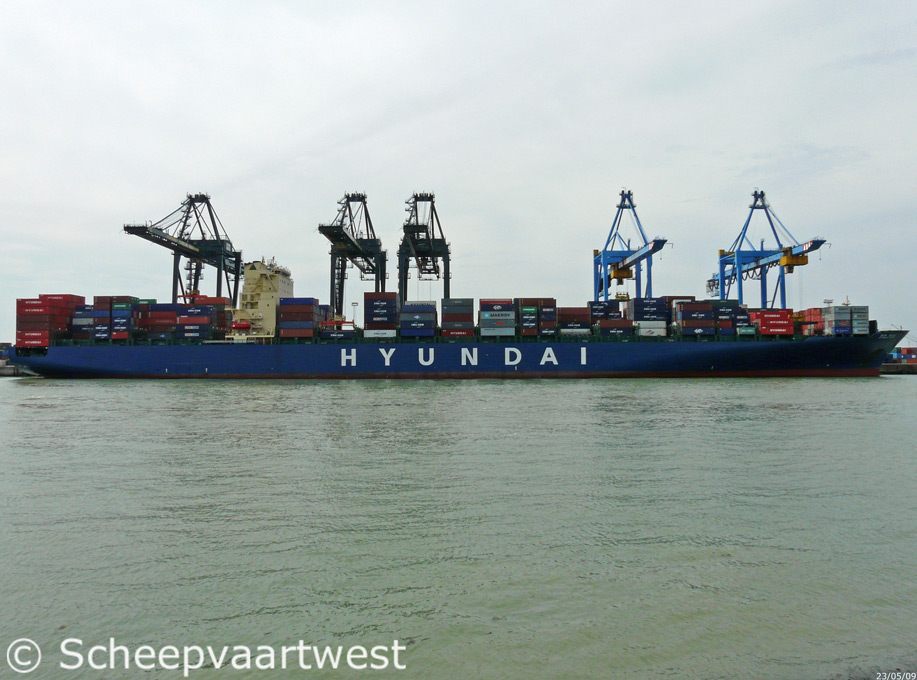

HYUNDAI FAITH |
|
Type |
Cellular Containership |
|
IMO-number |
9347554 |
|
Call sign |
3EPF4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
94.511 t |
|
DWT |
98.967 t |
|
NT |
51.638 t |
|
TEU |
8.562 |
|
Length |
339,60 m overall 322,60 m between perpendiculars |
|
Breadth |
45,60 m overall |
|
Reg. Dimensions L x B x D |
324,82 x 45,60 x 21,01 m |
|
Rule Dimensions L x B x D |
318,40 x 45,60 x 24,60 m |
|
Draught |
Summer: 14,526 m |
|
Freeboard |
Summer: 10.177 mm |
|
Depth |
24,60 m |
|
Speed |
Max.: 27,0 knots |
|
Line |
Hyundai |
|
Built |
2008 |
|
Keel laid |
18.06.2007 |
|
Launch date |
22.09.2007 |
|
Date of completion |
25.02.2008 |
|
Builder |
Hyundai Samho Heavy Industries |
|
Yard number |
S306 |
|
Hull type |
Single hull |
|
Bulkheads |
11x Water tight |
|
Main engine |
1x Sulzer 14RT-Flex96C-B - 2 stroke single acting 14 cylinder 960 x 2.500 mm diesel engine - 80.080 kW at 102,0 rpm Manufacturer: Hyundai Heavy Ind. Engine & Machinery, |
|
Number of screws |
1 |
|
Boilers |
1x Auxiliary water tube boiler (WTB) - 8,0 bar 2x Auxiliary Exhaust gas boiler (EGE) - 11,0 bar Heating surface: 338,2 m² Manufacturer:Kang RIm Ind. Co., Ltd., Changwon - South Korea |
|
Shaft generators |
2x 4.125 kVA - 6.600 Volt |
|
Generators |
4x MAN-B&W 7L32/40 main diesel generatorsets each 3.265 kW |
|
Bow thruster |
3.000 kW |
|
Hatchway number & size |
9 1x 37,92 x 30,59 m 8x 25,28 x 40,90 m |
|
Tank capacities |
Fuel oil: 11.840,60 m³ Freshwater: 449,60 m³ Water ballast: 25.112,40 m³ |
|
Cargo gear |
None |
|
Crew |
24 |
|
Manager |
Hyundai Merchant Marine Co. Ltd. |
|
Operator |
Hyundai |
|
Technical manager |
Hyundai Merchant Marine Co. Ltd. |
|
Owner |
KSF 12 International S.A. |
