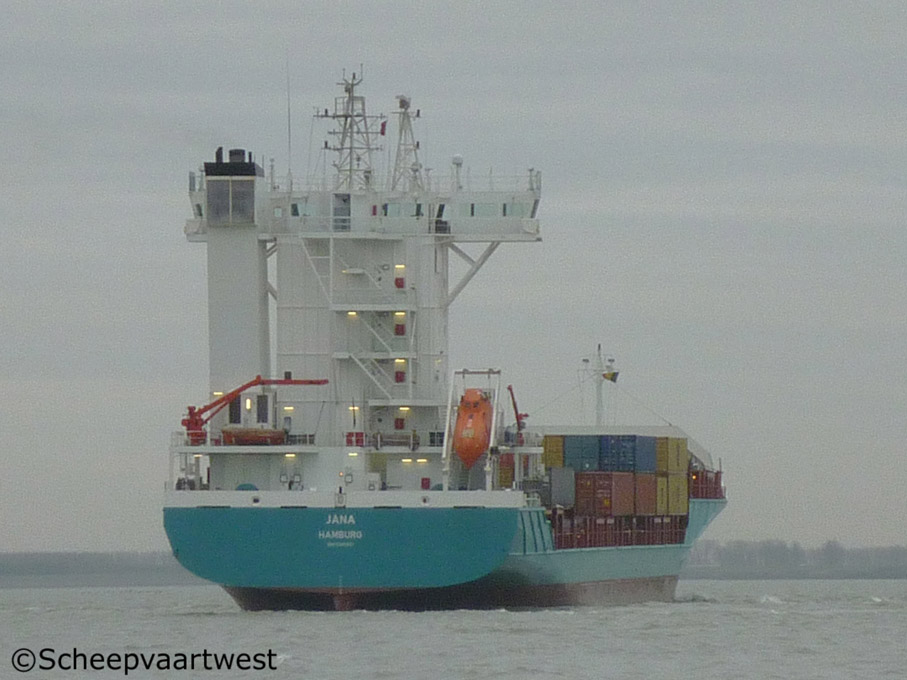

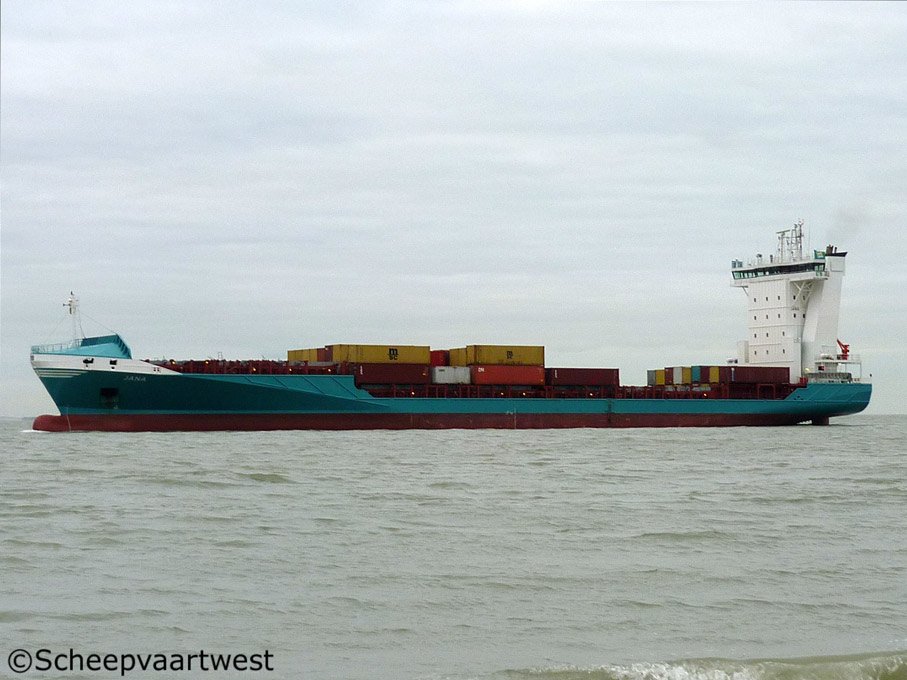

| Westerschelde 09 January 2012 |
 |
 |
|

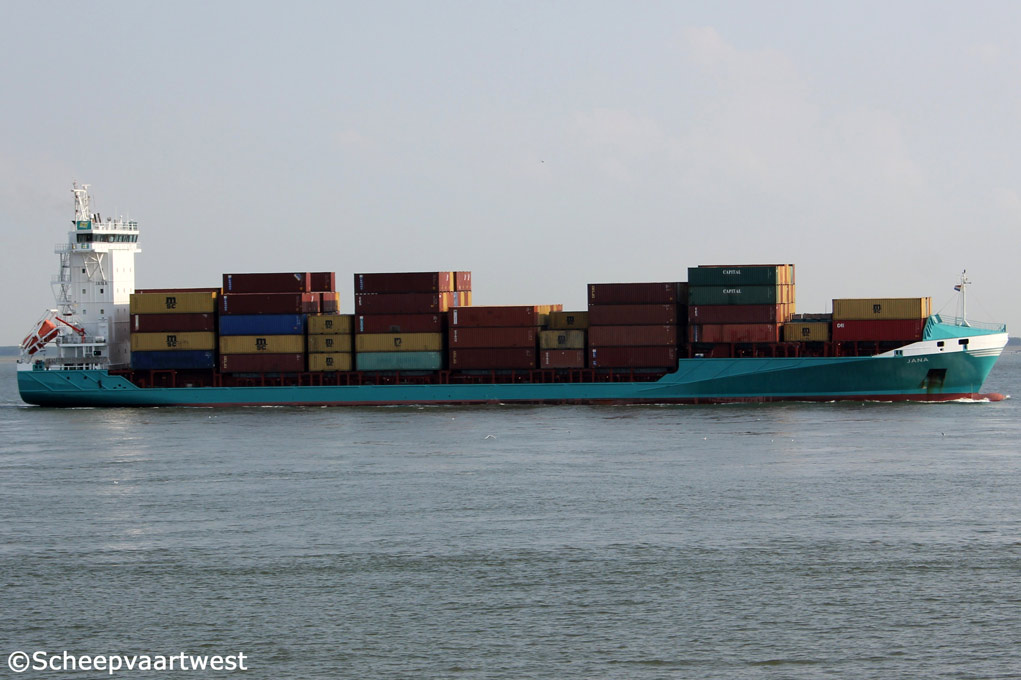

| Westerschelde 09/01/12 | Westerschelde 20/08/13 | |
|
Name |
JANA |
|
Type |
Container ship |
|
IMO-number |
9395551 |
|
Call sign |
DFZQ2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
8.273 |
|
DWT |
11.007 t |
|
NT |
4.002 t |
|
Number of 20ft containers |
974 |
|
Container capacity 14t |
584 |
|
Reefer capacity |
170 |
|
Length |
139,60 m overall 133,25 m between perpendiculars |
|
Breadth |
22,20 m |
|
Draught |
7,36 m |
|
Forecastle |
38,50 m |
|
Poop |
10,64 m |
|
Freeboard |
1.856 mm |
|
Depth |
9,50 m moulded |
|
Speed |
Max: 18,4 knots |
|
Built |
2009 |
|
Keel laid |
24/09/2008 |
|
Launch date |
05/11/2008 |
|
Date of completion |
12/02/2009 |
|
Builder |
Detlef Hegemann Rolandwerft GmbH & Co. KG Industriestr. 6 27804 Berne Federal Republic of Germany |
|
Yard number |
246 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 8.400 kW / 11.413 hp at 500 rpm Reduced power: 7.850 kW Year of manufacture: 22/01/2008 Manufacturer: Caterpillar Motoren Rostock GmbH Werftallee 13 18119 Rostock Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 171 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 15,0 m² 1x Steam boiler, exhaust gas heated Heating surface: 172,0 m² Year of manufacture: 2008 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Denmark |
|
Electric installations |
2x Plants each 450 V - 546 kVA 1x Plant 450 V - 1.495 kVA 1x Plant 450 V - 546 kVA 1x Plant 24 V - 105 Ah 1x Plant 24 V - 105 Ah 1x Plant 24 V - 135 Ah 2x Plants each24 V - 225 Ah |
|
Shaft generator |
1x 1.495 kVA / 1.196 kW |
|
Generators |
2x Main diesel generatorsets each 546 kVA - 437 kW - 632 hp |
|
Emergency generator |
1x Diesel generatorset 546 kVA / 436,8 kW |
|
Batteries |
2x Batteries for start emergency engine each 225 Ah 1x Battery for UPS radio 135 Ah 1x Battery for automation 105 Ah 1x Battery for UPS navigation 105 Ah |
|
Compressed air receivers |
2x Receivers each 750 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 1.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 5.610 kg Chain length: 577,50 m |
|
Cargo gear |
Gearless |
|
Manager |
Ohle Reederei Dornbuscher str. 12 21706 Drochtersen Germany |
|
Registered owner |
J.H.O. Reederei GmbH & Co. KG MS "JANA" Dornbuscher Str. 11 21706 Drochtersen Germany |
|
Special annotation |
Hull structural members are partly made of higher tensile steel according to the drawings to be kept on board |
|
Renamed |
04/2015 Seaboard Patriot Liberia, Monrovia - Call sign: D5IR5 Reg. owner: Seaboard Patriot Ltd. - USA Commercial manager: Seaboard Marine Ltd Inc.- USA ISM manager: Wilhelmsen Ship Management Ltd.- USA |
|
Latest data adjustment |
21 August 2024 |
